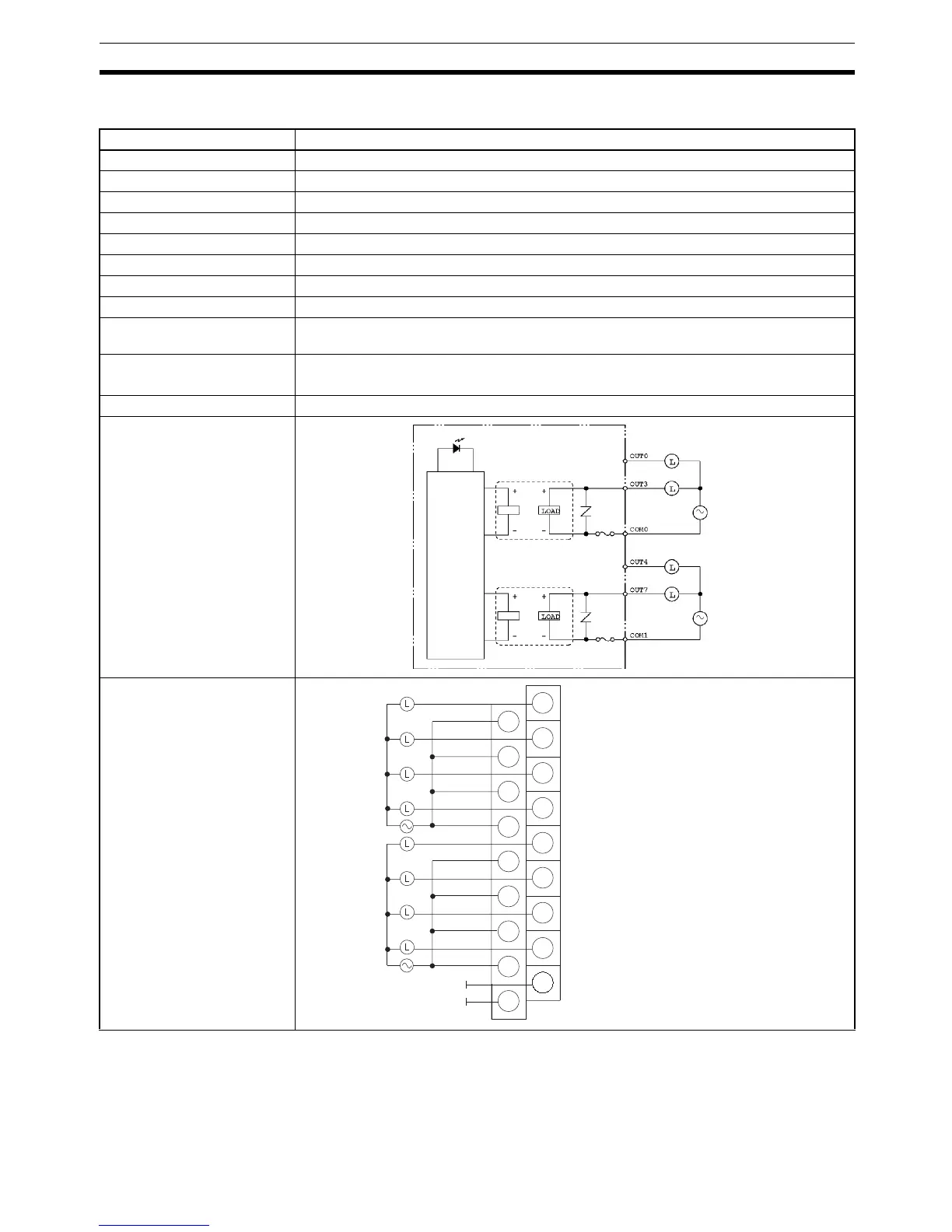

73
Output Unit Specifications Section 2-3
2-3-3 Triac Output Units
Item CQM1-OA221
Name 8-point Triac Output Unit
Max. Switching Capacity 0.4 A at 100 to 240 V AC
Min. Switching Capacity 2 mA at 100 V AC, 4 mA at 200 V AC
Leakage Current 1 mA max. at 100 V AC and 2 mA max. at 200 V AC
Residual Voltage 1.5 V max. (0.4 A)
ON Delay 6 ms max.
OFF Delay 1/2 cycle + 5 ms max.
No. of Outputs 8 points (4 points/common, 2 circuits)
Internal Current Consump-
tion
110 mA max. at 5 V DC
Fuse 2 A (one per common), two used.
Fuse is not user replaceable.
Weight 240 grams max.
Circuit Configuration
Terminal Connections
Output LED
Internal
Circuits
Fuse 2 A
100 to 240 V AC
Fuse 2 A
100 to 240 V AC
INPUT
INPUT
to
to
COM0 and COM1 are not con-
nected internally.
B0
OUT0
COM0
A0
B1
OUT1
COM0
A1
B2
OUT2
A2
B3
OUT3
B4
OUT4
COM1
A4
B5
OUT5
COM1
A5
B6
OUT6
COM1
A6
B7
OUT7
COM1
A7
B8
A8
A3
NC
NC
COM0
COM0
