74

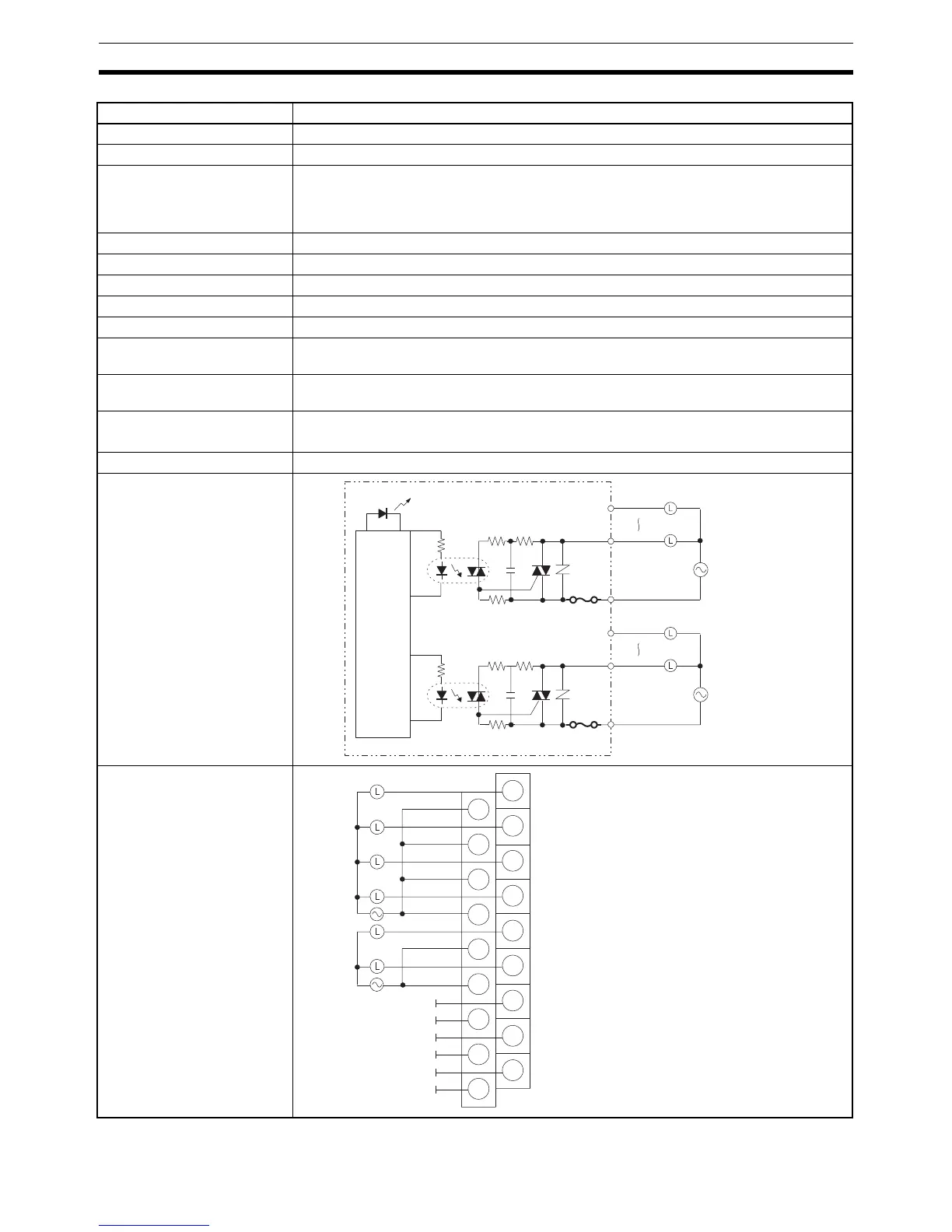

Output Unit Specifications Section 2-3
Item CQM1-OA222
Name 6-point Triac Output Unit
Max. Switching Capacity 0.4 A at 100 to 240 V AC (50/60 Hz)
Min. Switching Capacity 100 mA at 10 V AC
50 mA at 24 V AC
10 mA at 100 V AC
10 mA at 240 V AC
Leakage Current 1 mA max. at 100 V AC and 2 mA max. at 200 V AC
Residual Voltage 1.5 V max. (0.4 A)
ON Delay 1 ms max.
OFF Delay Load frequency of 1/2 cycle + 1 ms max.
No. of Outputs 6 points (4 points/common, 1 circuit; 2 points/common, 1 circuit)
Inrush current 6 A at 100 ms
15 A at 10 ms
Internal Current
Consumption
250 mA max. at 5 V DC
Fuse 5 A at 250 V (one per common), two used.
Fuse is not user replaceable.
Weight 240 grams max.
Circuit Configuration
Terminal Connections
OUT00
Output LED
Internal
Circuits
OUT03
Fuse
5 A
100 to 240 V AC
COM0
OUT04
OUT05
Fuse
5 A
100 to 240 V AC
COM1
COM0 and COM1 are not con-
nected internally.
B0
OUT0
COM0
A0
B1
OUT1
COM0
A1
B2
OUT2
A2
B3
OUT3
B4
OUT4
COM1
A4
B5
OUT5
A5
B6
A6
B7
COM1
A7
B8
A8
A3
NC
NC
COM0
COM0
NC
NC
NC
NC
