3
Featur es Section 1-1
ity, to 512 points (from 256 points); and the data memory capacity, to
6 Kwords of DM and 6 Kwords of EM (from 6 Kwords of DM only).
• A 16-Kword Memory Cassette can be mounted in the CQM1H to handle
large user programs or more data. These features ensure a higher level
of machine control and greater ease of use.
Increased Functionality
with Inner Boards
The CQM1H features Inner Boards that allow serial communications, multi-
point high-speed counter (rotary encoder) inputs, simple positioning (trapezoi-
dal acceleration/deceleration pulse outputs), speed changes, PWM (variable
duty-factor pulse) outputs, absolute rotary encoder inputs, analog I/O (4
inputs, 2 outputs), and analog settings.
A Serial Communications Board, High-speed Counter Board, Pulse I/O
Board, Absolute Encoder Interface Board, Analog I/O Board, and Analog Set-
ting Board are available. These Inner Boards can be combined, mounted and
used as required for the machine being controlled. (There are mounting
restrictions for some of the Inner Boards.)
Note The CPU Unit also provides16 built-in inputs, as well as high-speed counter
and input interrupt functions. Pulse outputs are also supported using a stan-
dard Transistor Output Unit.

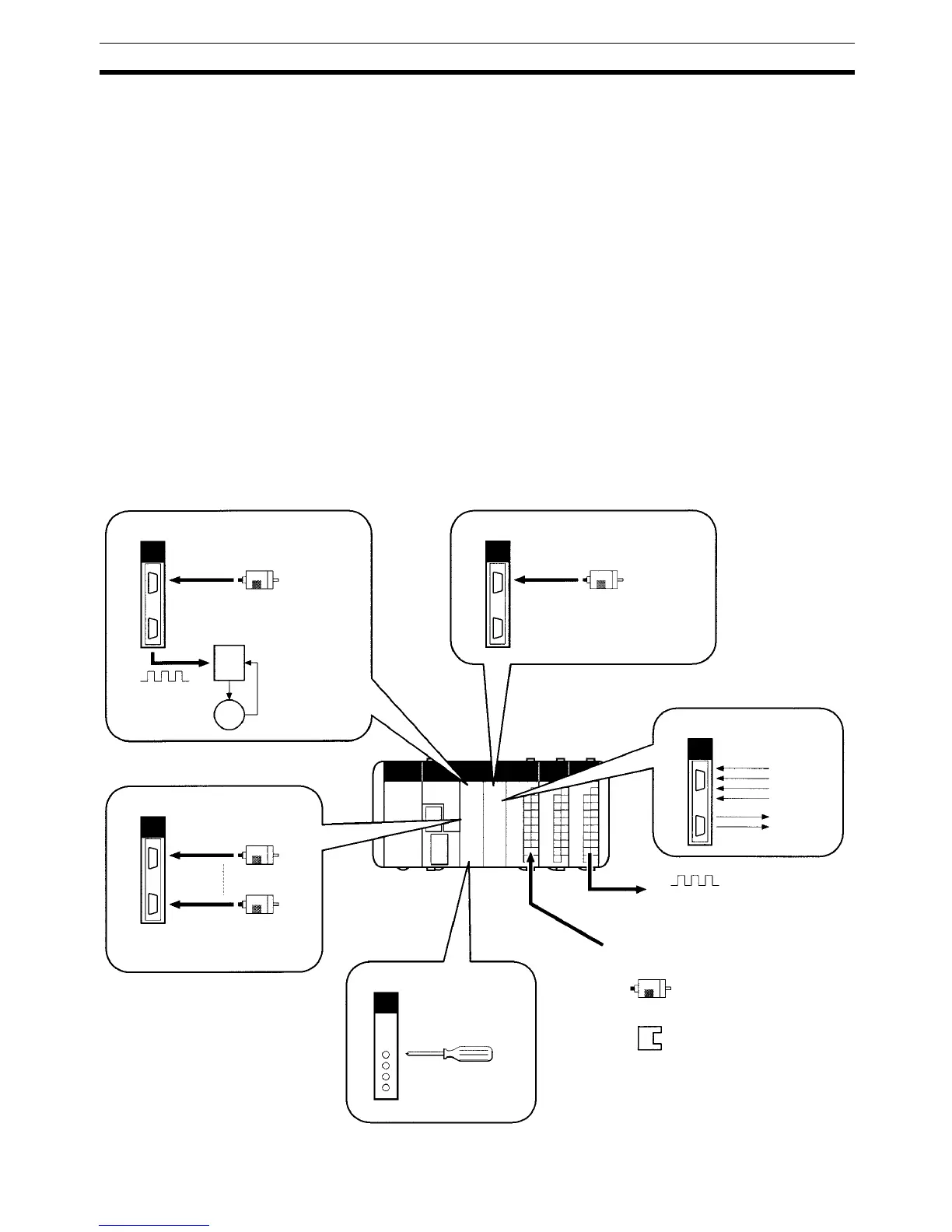

Simple Positioning, Simple Speed Control,
High-speed Counting
Pulse I/O Board
Two pulse outputs
(50 kHz max.)
Rotary Encoder
Two encoders can be connected.
(Single-phase: 50 kHz; phase dif-
ference: 25 kHz.)
Motor driver
Servomotor or
Stepping Motor
Absolute Encoder Inputs
Absolute Encoder Interface Board
Absolute Encoder
Two encoders can be connected.
(4 kHz max.; gray code binary)
Pulse outputs also supported from Transistor
Output Unit. (20 Hz to 1 kHz max.)
CPU Unit built-in inputs: High-speed counter (1 only)
(Single-phase 5 kHz; phase difference 2.5 kHz)
Rotary encoder
(1 only)
or Interrupts inputs (4 inputs max.)
Example: Photo-microsensor
High-speed Counter
High-speed Counter Board
Rotary Encoder
Four encoders can be connected.
(Single-phase: 50 kHz/500 kHz switchable;
phase difference: 1/2/4 multiplication factor,
25 kHz/250 kHz switchable)
Analog I/O
Analog I/O Board
Analog inputs
4 inputs max.
Analog outputs
2 outputs max.
Analog Settings
Analog Setting Board
Set with Philips
screwdriver
The 4 settings are stored in
the AR area inside the CPU
Unit. These values can be
used for timer settings or
other purposes.
To Next Page
