5
Featur es Section 1-1
High-speed/
Long-distance
Communications with
CompoBus/S
A CompoBus/S Master Unit can be included in the CQM1H. High-speed or
long-distance remote I/O communications can be performed with CompoBus/
S Slaves. (The CompoBus/S Master Unit is a Dedicated I/O Unit for the
CQM1H.)
A Wide Range of HMI
Monitoring and Setting
Methods
Programming Devices and Programmable Terminals (PTs) can be connected
to up to four ports, two ports on the CPU Unit and two ports on a Serial Com-
munications Board. It is thus possible to set up and monitor machine control
from a PT while monitoring or programming from a Programming Console or a
personal computer.

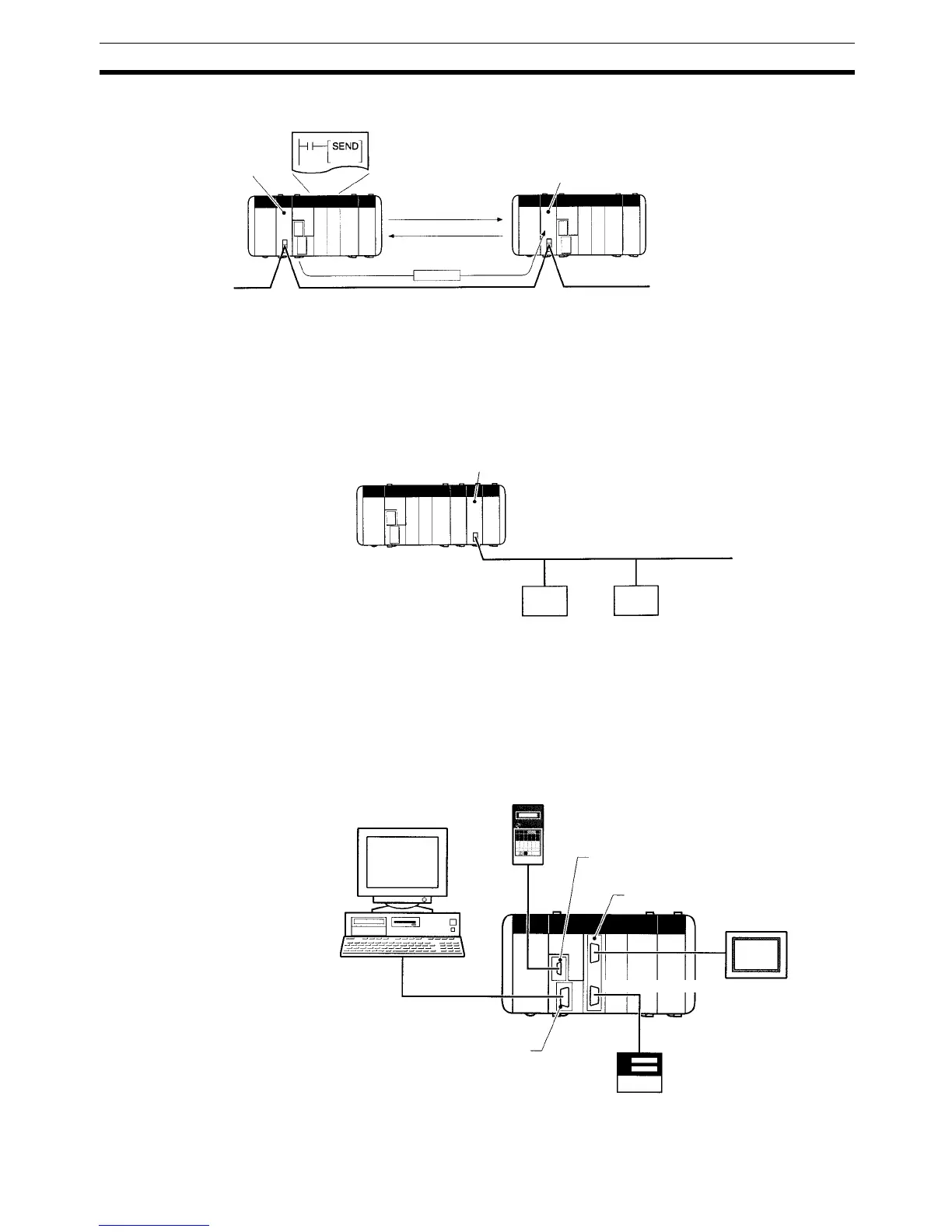

Controller Link Unit
CQM1H
Data link
Controller Link Unit
CQM1H
Controller Link Network
Network communications instructions,
such as SEND, RECV, and CMND
Message com-
munications
Baud rate: 2 Mbps; transmission distance: 1 km (when baud rate is 500 kbps); max. No. of nodes: 32.
A maximum of 8,000 words per node can be sent for the CQM1H.
Data exchange supported for CQM1, CQM1H, CS-series, C200HX/HG/HE, and CVM1/CV-series PCs.
CQM1H
CompoBus/S Master Unit
CompoBus/S (high-speed or long-distance remote I/O)
CompoBus/S Slaves
Remote I/O Terminals, Connector Terminals,
Sensor Terminals, Analog Terminals, etc.
Personal computer
Programming Console
Peripheral port on CPU Unit
PT
RS-232C port on CPU Unit
Simultaneous connection possible
Temperature controller or other device
RS-232C port on Serial
Communications Board
RS-422A/485 port
To Next Page
