8
System Configuration Section 1-2

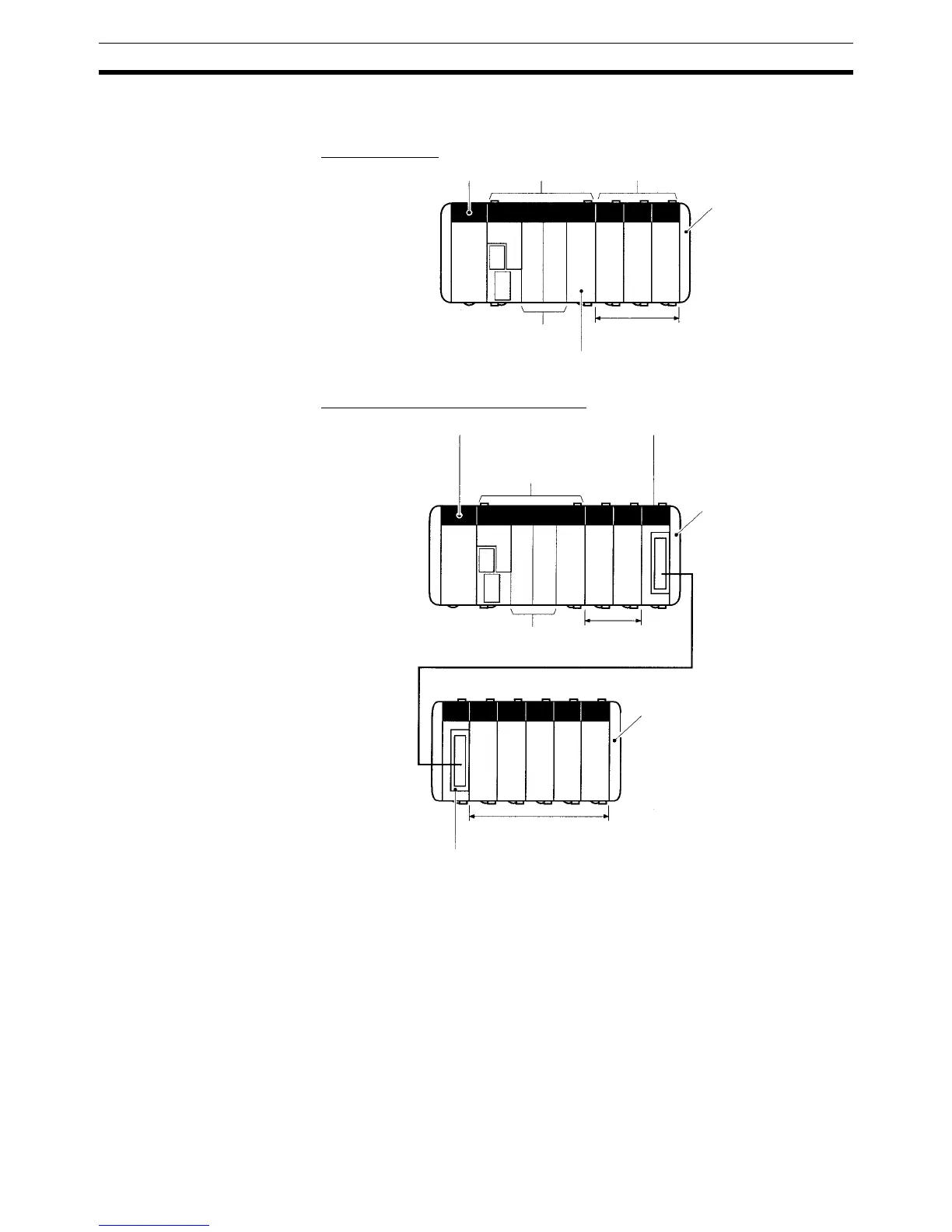

CQM1H-CPU11/21 The CQM1H-CPU11 and CQM1H-CPU21 CPU Units do not support Inner
Boards or Communications Units. The configuration is shown below.
CPU Block Only
CPU Block and Expansion I/O Block
Power Supply Unit CPU Unit I/O Units or Dedicated I/O Units
End Cover
(Inner Boards
not mountable)
16 inputs built into CPU Unit
Up to eleven Units connectable
as required
Power Supply Unit
CPU Unit
I/O Control Unit
Two Inner Boards
not mountable
Up to five Units con-
nectable as required
Up to eleven Units con-
nectable as required
I/O Interface Unit
End Cover
Expansion I/O Cable
End Cover

Omron CQM1H - 08-2005 Specifications

General

Category	Programmable Logic Controller (PLC)
Manufacturer	Omron
Program Capacity	3.2K steps
Model	CQM1H
I/O Points	512 points max
