54

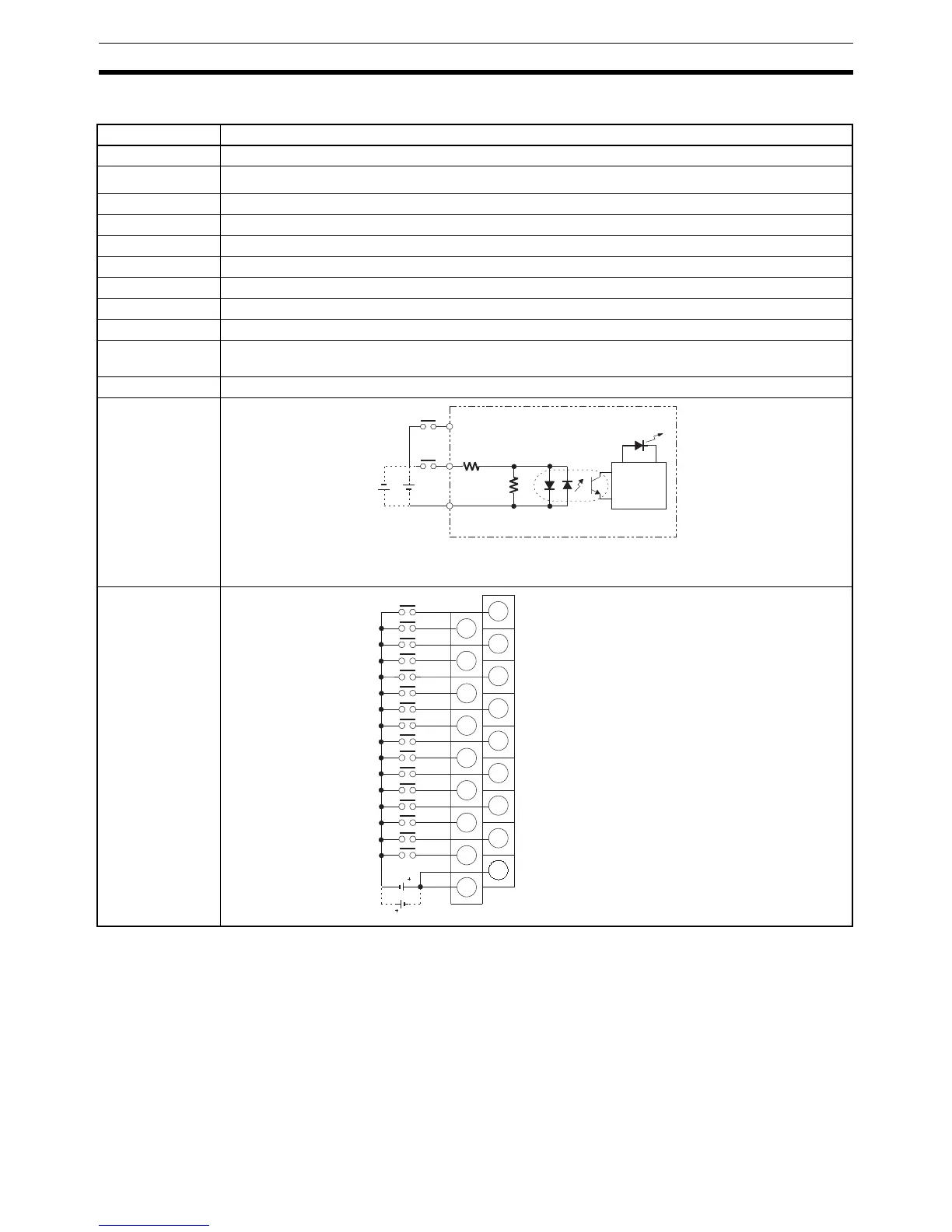

Input Unit Specifications Section 2-2
Item CQM1-ID111
Name 12-V DC 16-point Input Unit
Input Voltage
12 V DC
+10%
/
–15%
Input Impedance 1.8 kΩ
Input Current 6 mA typical (at 24 V DC)
ON Voltage 8.0 V DC min.
OFF Voltage 3.0 V DC max.
ON Delay Default: 8 ms max. (can be set between 1 and 128 ms in PC Setup, see note)
OFF Delay Default: 8 ms max. (can be set between 1 and 128 ms in PC Setup, see note)
No. of Inputs 16 points (16 points/common, 1 circuit)
Internal Current
Consumption
85 mA max. at 5 V DC
Weight 180 grams max.
Circuit
Configuration
Terminal
Connections
IN0
to
IN15
COM
1.8 kΩ
Input
LED
Internal
Circuits
620 Ω
Note The input power supply polarity may be con-
nected in either direction.
B0
IN0
IN1
A0
B1
IN2
IN3
A1
B2
IN4
IN5
A2
B3
IN6
IN7
A3
B4
IN8
IN9
A4
B5
IN10
IN11
A5
B6
IN12
IN13
A6
B7
IN14
IN15
A7
B8
COM
A8
COM
–
–
