56
Input Unit Specifications Section 2-2
Item CQM1-ID213 CQM1-ID214
Name 24-V DC 32-point Input Unit 24-V DC 32-point Input Unit
Input Voltage
24 V DC
+10%
/
–15%
24 V DC
+10%
/
–15%
Input Imped-
ance
5.6 kΩ 3.9 kΩ
Input Current 4 mA typical (at 24 V DC) 6 mA typical (at 24 V DC)
ON Voltage/
Current
14.4 V DC min. 15.4 V DC/3.5 mA min.
OFF Voltage/
Current
5.0 V DC max. 5.0 V DC/1 mA max.
ON Delay Default: 8 ms max. (can be set between 1 and 128
ms in PC Setup)
Default: 8 ms max. (can be set between 1 and 128
ms in PC Setup)
OFF Delay Default: 8 ms max. (can be set between 1 and 128
ms in PC Setup)
Default: 8 ms max. (can be set between 1 and 128
ms in PC Setup)
No. of Inputs 32 points (32 inputs/common, 1 circuit) 32 points (32 inputs/common, 1 circuit)
Number of simultaneously ON inputs is limited by
ambient temperature. See diagrams after table.
Internal
Current
Consumption
5 V DC, 170 mA max. 5 V DC, 170 mA max.
Weight 160 g max. 160 g max.

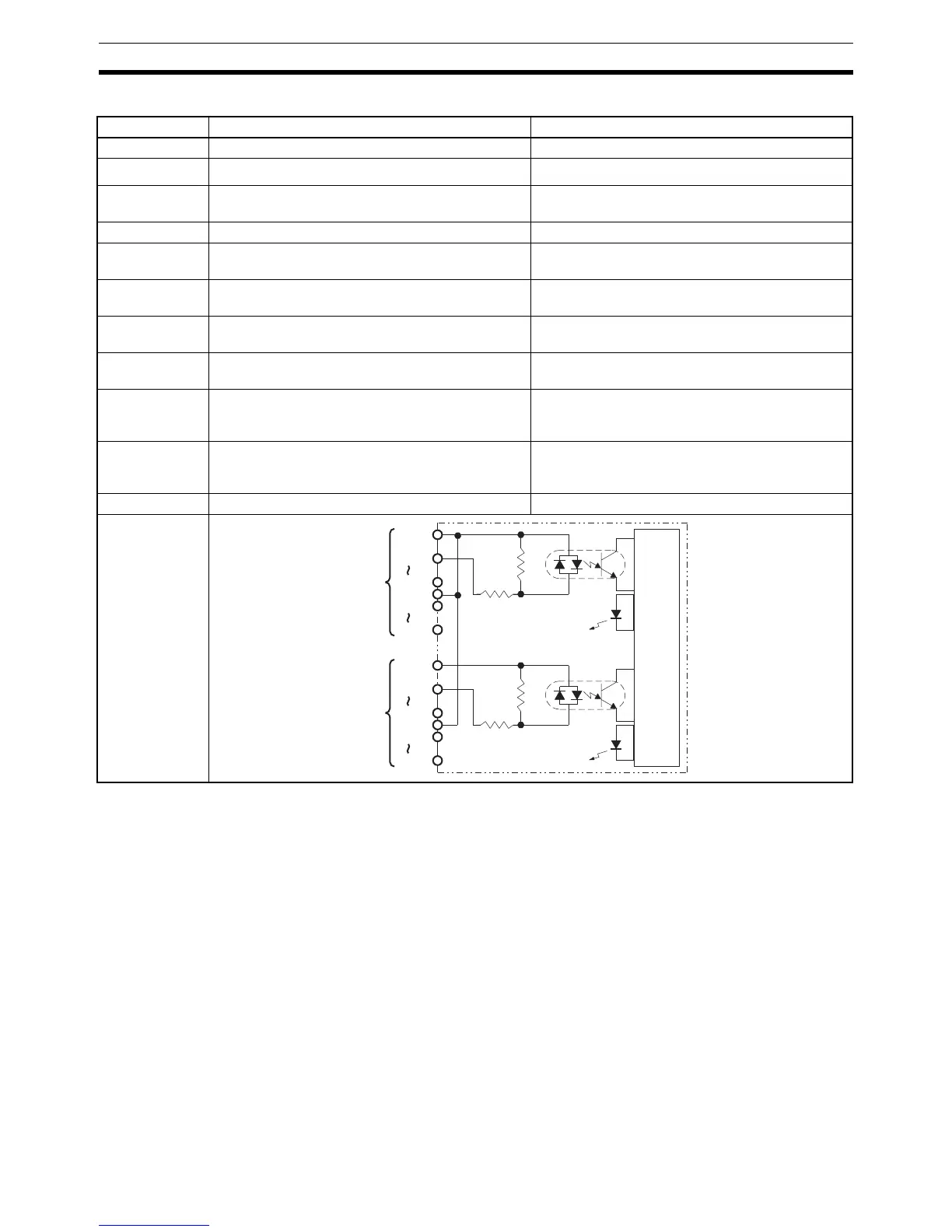

Circuit
Configuration
620 Ω
5.6 kΩ (ID213)
3.9 kΩ (ID214)
COM
IN00
IN07
COM
IN08
IN15
A
Inter-
nal
Circuit
COM
IN00
IN07
COM
IN08
IN15
B
620 Ω
5.6 kΩ (ID213)
3.9 kΩ (ID214)
Input
LED
Input
LED
