Output Unit Specifications Section 2-3
Note The values for relay service life in the above table represent the minimum val-
ues. The following chart gives reference values for the actual service life.

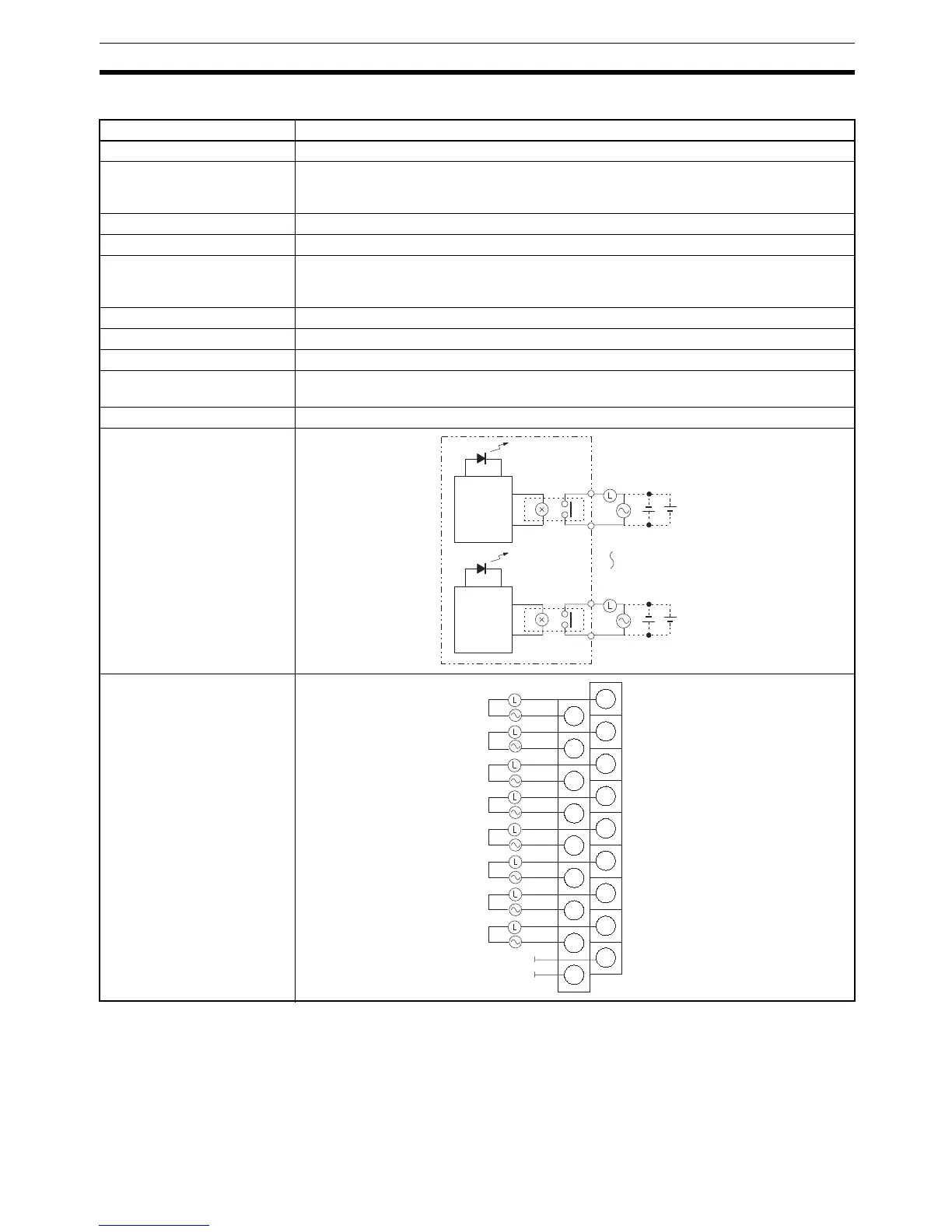

Item CQM1-OC224
Name 8-point Contact Output Unit
Max. Switching Capacity 2 A, 250 V AC (cosφ= 1)
2 A, 250 V AC (cosφ= 0.4)
2 A, 24 V DC (16 A/Unit)
Min. Switching Capacity 10 mA, 5 V DC
Relay G6R-1A or G6RN-1A
Service Life of Relay Electrical: 300,000 operations
Mechanical: 10,000,000 operations
(See note.)
ON Delay 15 ms max.
OFF Delay 5 ms max.
No. of Outputs 8 points (independent commons)
Internal Current Consump-
tion
440 mA max. at 5 V DC
Weight 270 grams max.
Circuit Configuration
Terminal Connections
OUT0
Output
LED
Internal
Circuits
COM0
Maximum
250 V AC: 2 A
24 V DC: 2 A
OUT7
Output
LED
Internal
Circuits
COM7
B0
A0
B1
A1
B2
A2
B3
B4
A4
B5
A5
B6
A6
B7
A7
B8
A8
A3
NC
NC
OUT0
COM0
OUT1
OUT3
OUT4
OUT5
OUT6
OUT7
COM1
OUT2
COM2
COM3
COM4
COM5
COM6
COM7
