Omron FQ-CR2 User Manual

Specifications and Dimensions
FQ-CR2 User’s Manual
179
Appendices
10
FQ-WD010/WD020
• FQ Ethernet Cable
FQ-WN002/WN010/WN020
• AC Adapter
FQ-AC@
5000
+50
0
(100)
(100)
L
*1
6.4 dia.
6.7 dia.
(15.6 dia.)
(39.8)
(5)
35
19.5 dia.

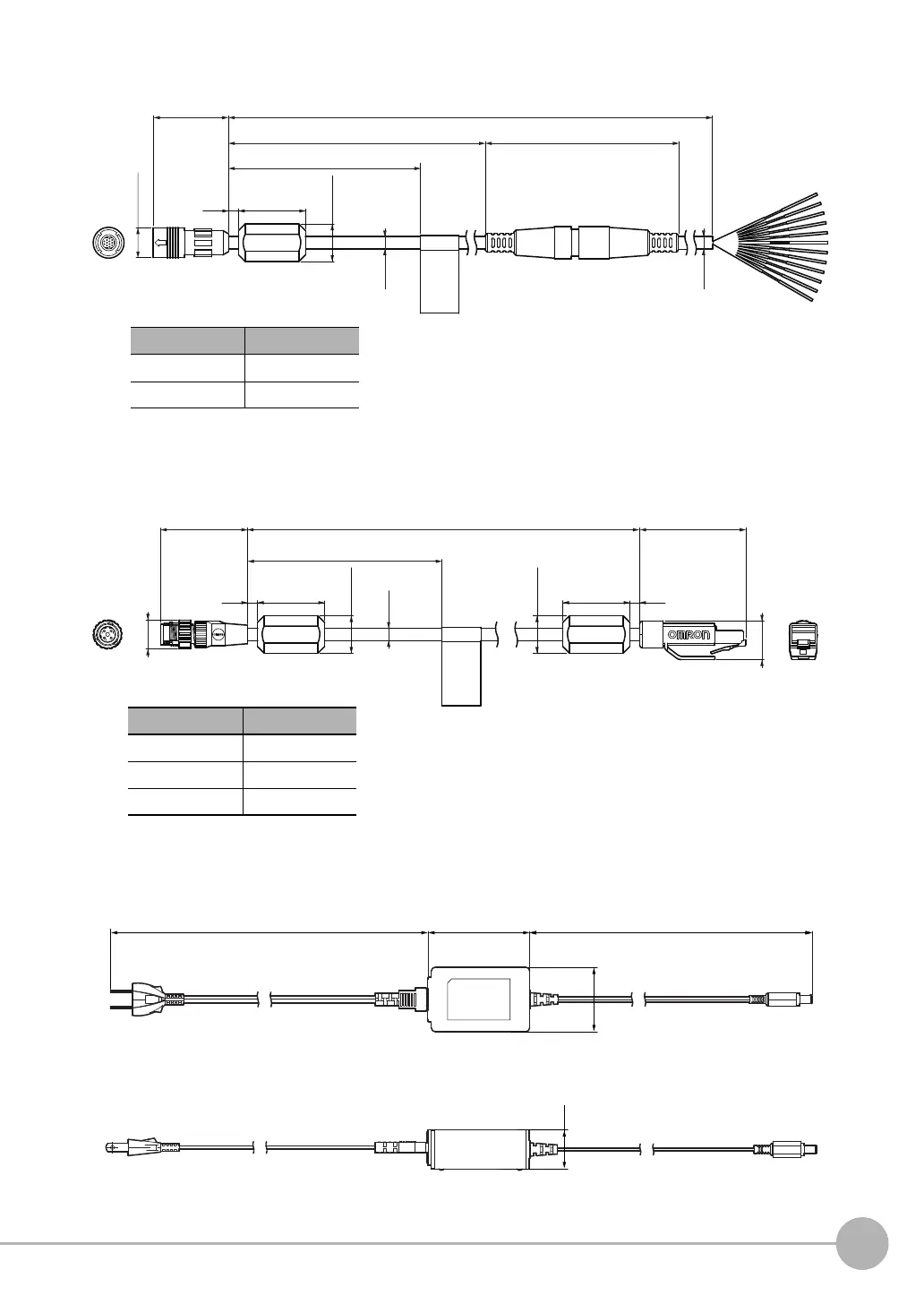

*1: The cable length is given in the following table.
Model L
FQ-WD010 10 m
FQ-WD020 20 m
(Unit: mm)
L
*1
(14.9 dia.)
(54.7)
(100)
(44.7)
(19.9)
(5)
35
(5)
35
6.5 dia.
19.5 dia.
19.5 dia.
*1: The cable lengths are given in the following table.
Model L
FQ-WN002 2 m
FQ-WN010 10 m
FQ-WN020 20 m
(Unit: mm)
30
50
781,800 to 2,000 1,500
(Unit: mm)
