Setting 2D Code Inspection Conditions
50
FQ-CR2 User’s Manual

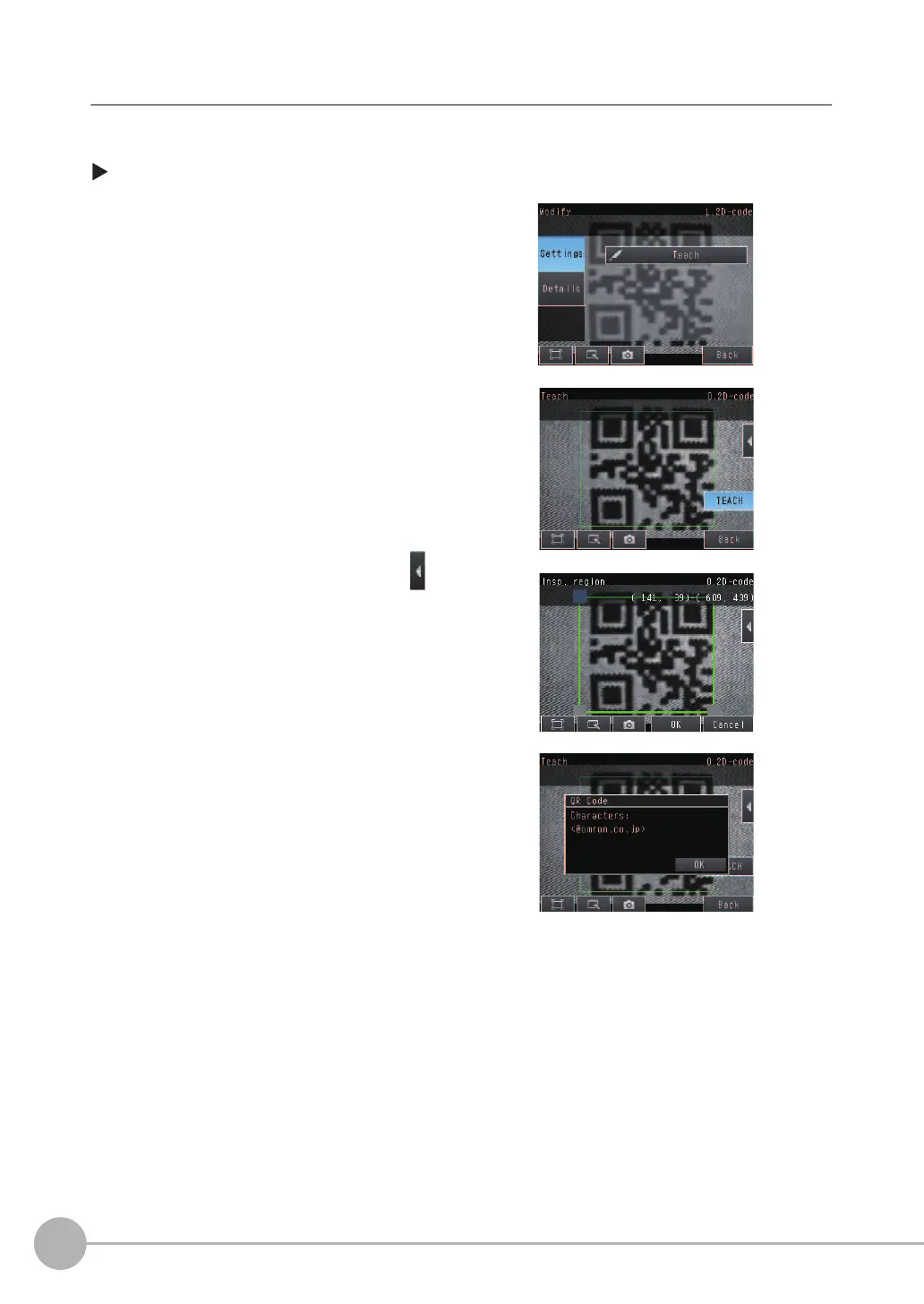

Step 2 Teaching
"Teaching" is the process of registering the area to be inspected and the 2D code within that area as master
data.
[Inspect] - [Modify] - [Add item] - [2D-code] - [Settings] tab
1 Press [Teach].
2 Display the image of the 2D code you wish to
register.
3
To change the inspection region, press [Insp. region]
on the right side of the display, and adjust the following:
• Change the size
Press one of the four corner points of the frame.
• Move the position
Drag the inside of the frame to move it.
4 Press [TEACH]. Scanning is executed and the result
is displayed.
FQ Sensor User Manual.book 50 ページ ２０１１年７月８日 金曜日 午後２時３０分
To Next Page
