4-2-4

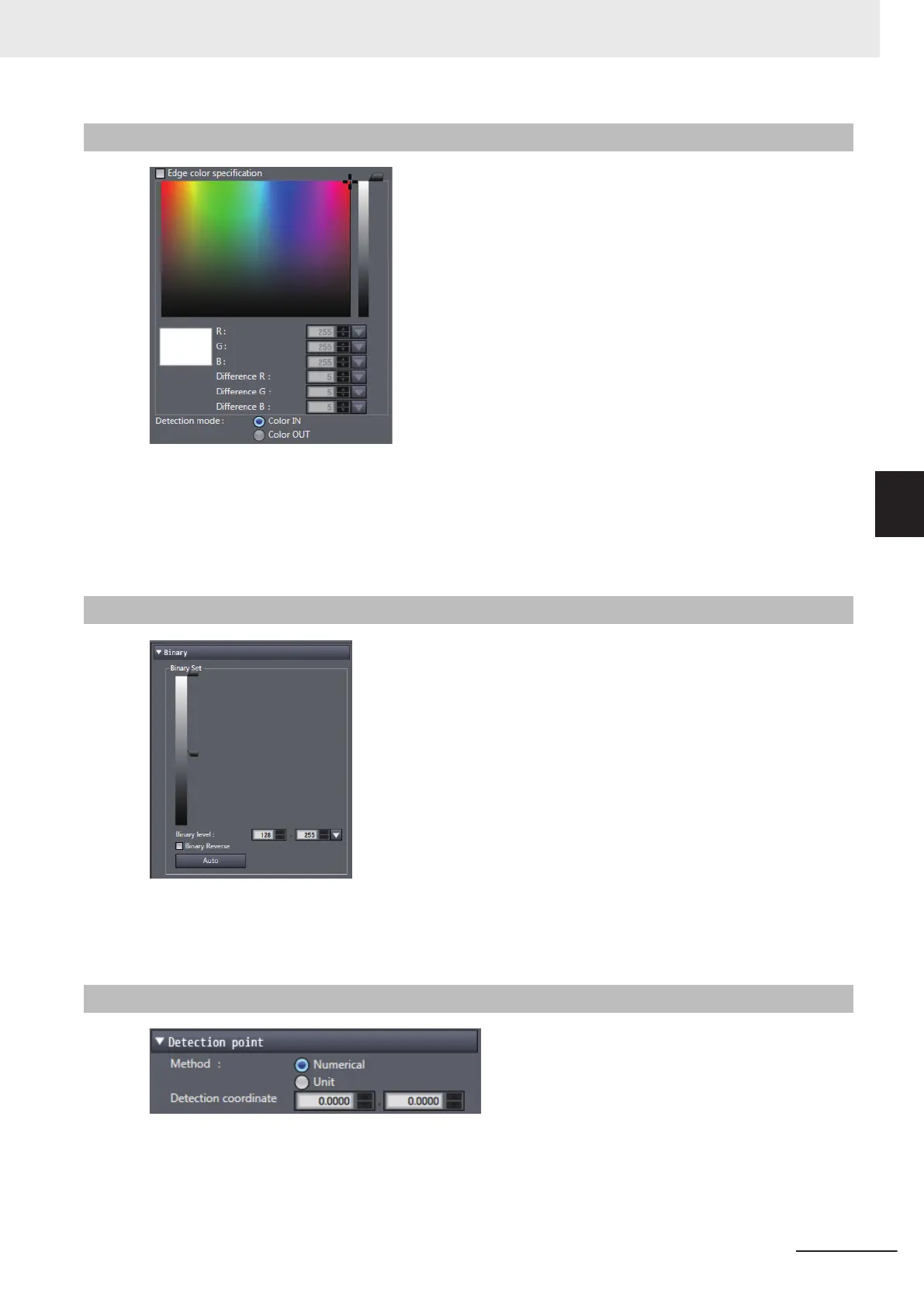

Color
You can specify any color.
The color range can be specified by specifying the hue, saturation, and brightness.
The specifications are the same as for the user interface of the FH/FHV vision sensor
.
For details, refer to Vision System FH/FHV Series Processing Item Function Reference Manual (Cat.
No. Z341).
4-2-5
Binary
You can specify the range of binarization levels.
If you select the Binary Reverse check box, binarization is performed for outside of the range be-
tween the upper and lower limits.
4-2-6
Detection Point/Reference Point
The detection point and reference point can be set with the numerical value input boxes.
Clicking any place in the displayed image reflects that coordinate value as the setting value.
4 Configuring Measurement Settings
4 - 11
FH/FHV Series Vision System Operation Manual for Sysmac Studio (Z343-E1)
4-2 Editing a Processing Unit
4
4-2-4 Color
