When scene switching is performed, the scene data editing screen is closed automatically if it is open
in the Edit Pane.
2-5-2
Managing Scenes

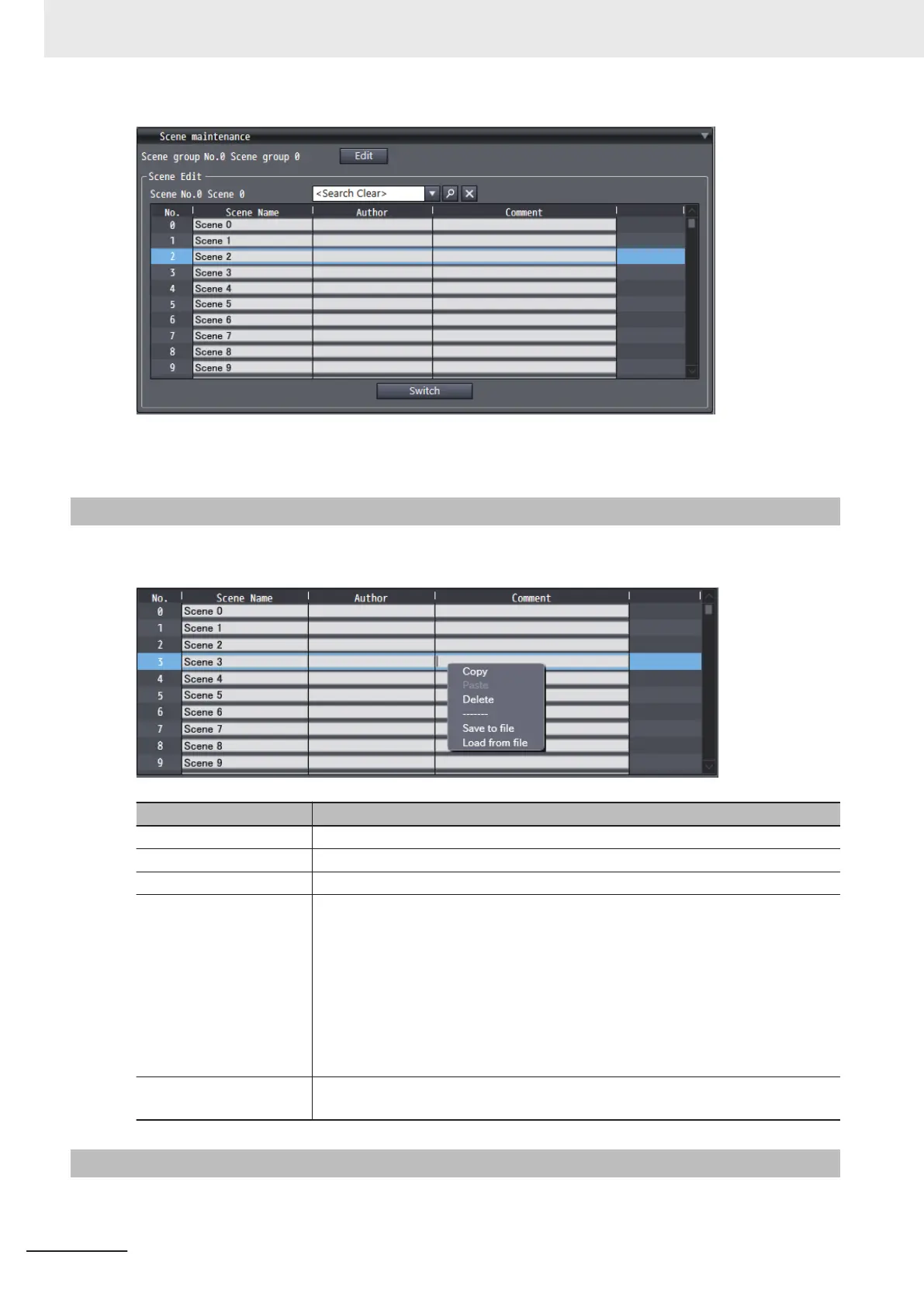

Right-clicking a target scene in the scene list displays the following menu.
Select the menu item for the operation you wish to perform.
item Description
Copy Copies the selected scene.
Paste Pastes the copied scene.
Delete Clears the selected scene.
Save to file Saves the selected scene as a scene data file to the folder on the computer.
The save file format can be selected from either binary scene data (file extension:
SCN), or CSV
.
Select CSV to output a list of settings with the Set/Get attribute to the saved file.
(Settings with the Set only and Get only attribute cannot be output.)
The function to output CSV files outputting by selecting Save to file and the
Settings download and upload tools function for the FH/FHV vision sensor are
the same.
For details, refer to Vision System FH/FHV Series User's Manual (Cat. No. Z365).
Load from file Loads the Scene data file stored in computer folder.
A Scene data file in CSV format also can be loaded.
2-5-3
Entering Scene Information
The scene list displays the following information.
2 Basic Operations
2 - 32
FH/FHV Series Vision System Operation Manual for Sysmac Studio (Z343-E1)
