• If the FH sensor controller is in the Multi-line Random-trigger Mode, the settings data for the
FH sensor controller must be saved and loaded for each individual line.
•
During saving, do not restart, turn OFF the power supply, or remove the external memory de-
vice. Data will be corrupted and the system will not work properly at the next start-up.
Be particularly careful if you use Save to file for "System + Scene group 0 data" because the
data to be saved will also be saved to the flash memory in the Controller at the same time.
2-8-3
Transferring Data from the Sysmac Studio
This section describes the how to download the Sysmac Studio data to the FH/FHV sensor when syn-
chronizing the Sysmac Studio and the FH/FHV sensor
.
This section describes the procedures for transferring data from the Sysmac Studio via the external
memory.
Use the following procedures to synchronize the data from the Sysmac Studio.
1 Save the settings data for the FH/FHV sensor that is in the Sysmac Studio to the external
memory
.
2 Establish an online connection with the NJ/NX/NY-series Controller to transfer the data from
the Sysmac Studio to the NJ/NX/NY
-series Controller.
3 Use the external memory that holds the data saved in Step 1 to load the data to the FH/FHV
sensor
.

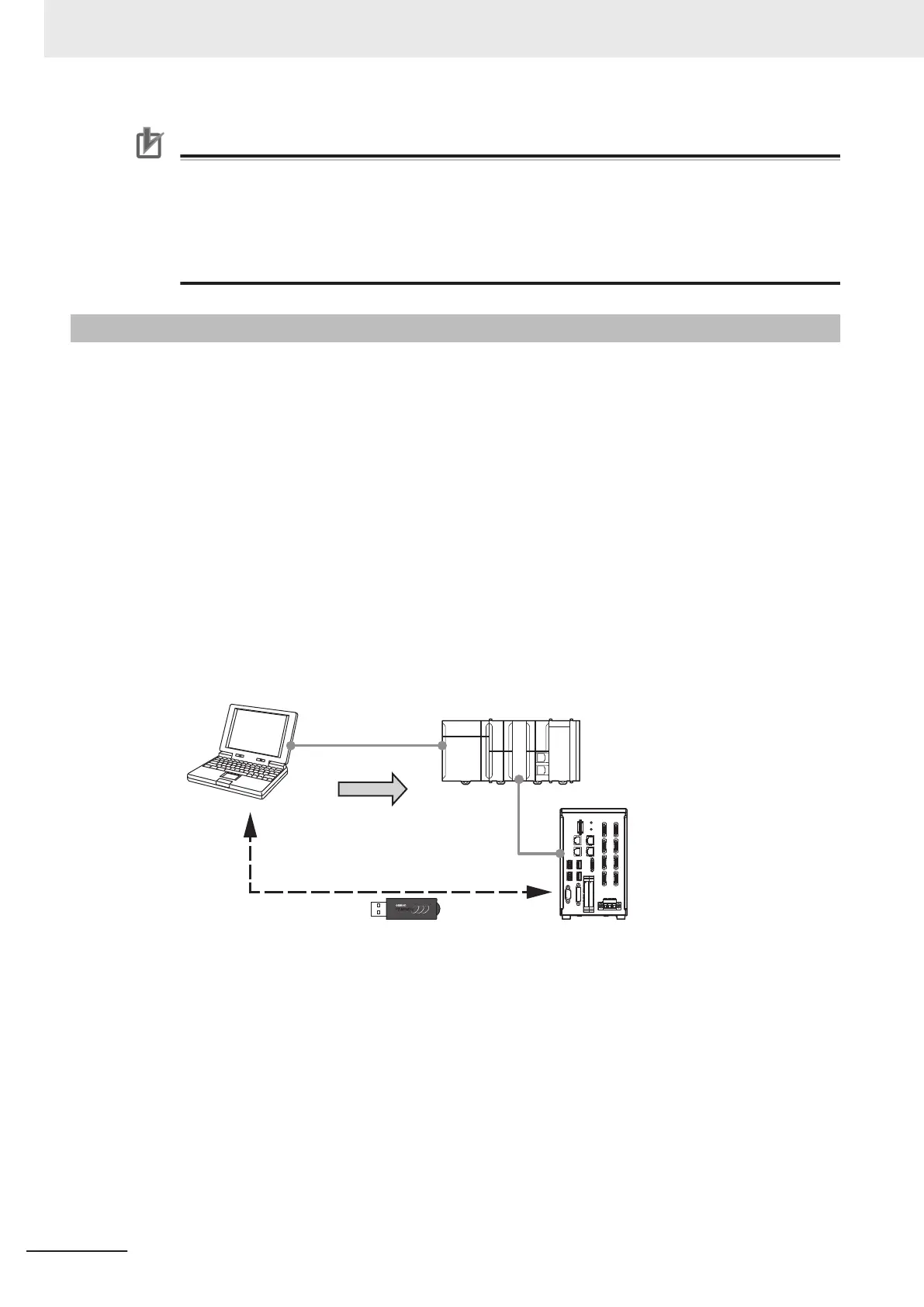

USB/Ethernet
EtherCAT
Sysmac Studio NJ/NX/NY-series Controller
FH/FHV
Downloading
USB memory/SD memory card
• Procedures for saving the settings data for the FH/FHV sensor that is in the Sysmac Studio
(Sysmac Studio to external memory)
Save the data in the Sysmac Studio to the external memory
.
Then use the external memory to transfer the data to the FH/FHV sensor.
Refer to 2-4-4 Multiview Explorer on page 2 - 11.
Save following four types of the settings data individually.
(1) System + Scene group 0 data
Refer to 8-3 Using the File Save T
ool on page 8 - 4.
(2) Data for scene groups 1 to 31
Refer to 8-3 Using the File Save Tool on page 8 - 4.
(3) Communications command macro data
Refer to 8-1 Using the Command Customize Setting Tool on page 8 - 2.
2 Basic Operations
2 - 46
FH/FHV Series Vision System Operation Manual for Sysmac Studio (Z343-E1)
