2-3
Creating a New Project
This section describes how to create a new project file. For details on the basic operations, refer to
Creating a Project in the Sysmac Studio Version 1 Operation Manual (Cat. No. W504).
Here, we describe how to create a new project for the FH/FHV vision sensor (hereinafter referred to as
"FH/FHV project").
2-3-1
Creating a New Project File from the Project Window

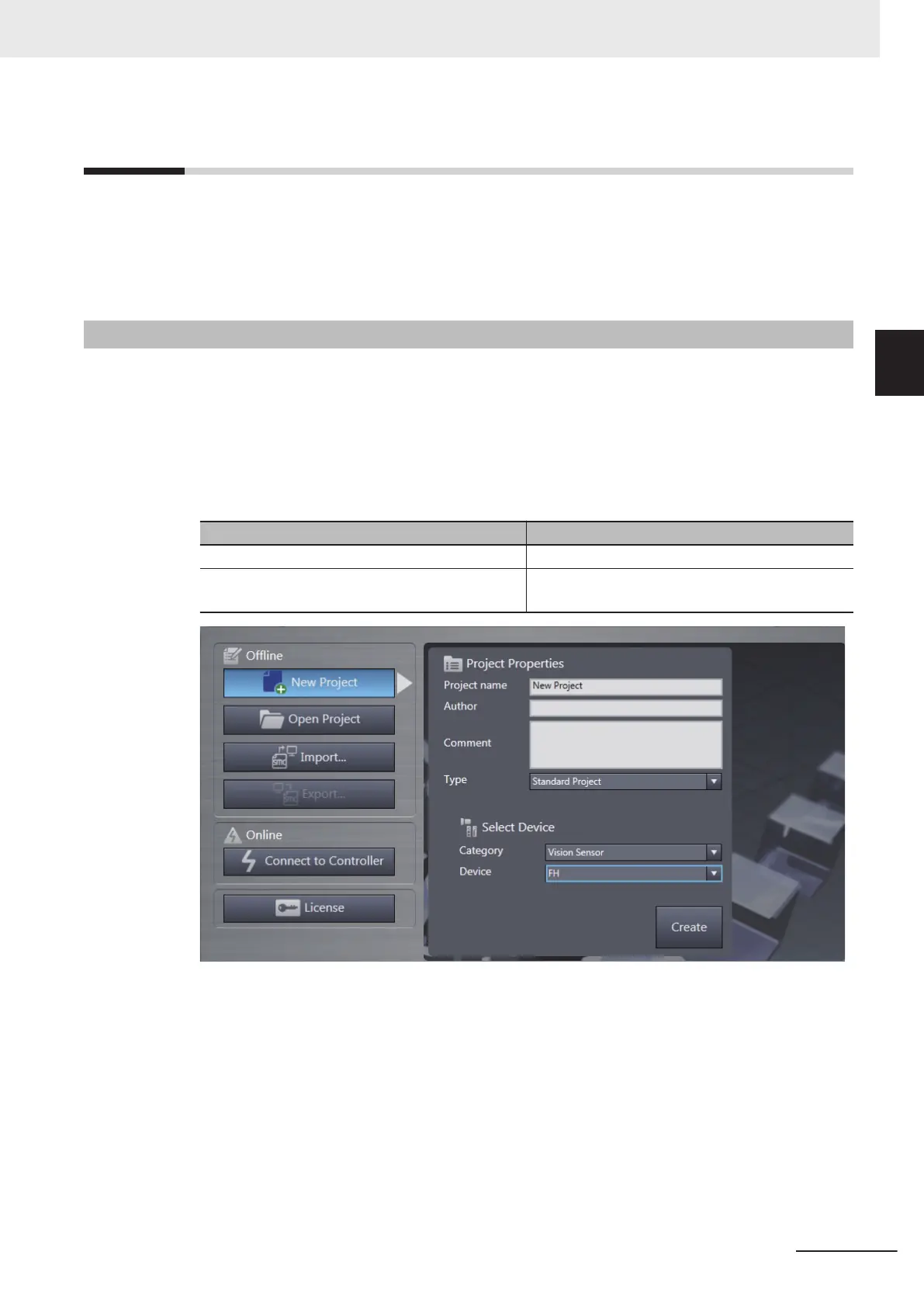

1 Click the New Project button in the project window
.
2 In the Project Properties dialog box, enter the information in Project name, Author (option-
al), and Comment (optional), select the following device from Category and Device of Select
Device, and click the Create button.
Item Setting
Category Vision sensor
Device
• FH
• FHV
3 Select the FH/FHV vision sensor to connect to.
When establishing an online connection, click Search for sensors and then click the Search
button. The found sensors are displayed in a list. Select the sensor you wish to connect to and
then click the OK button.
If you know the IP address of the sensor you wish to connect to beforehand or will connect to a
sensor via a router
, select the Specify the IP address check box and then enter the IP ad-
dress in IP address. After input is complete, click the OK button.
If you wish to edit the settings offline, click Enter the type, select the Type and Version items
for the sensor you wish to edit, and then click the OK button.
2 Basic Operations
2 - 7
FH/FHV Series Vision System Operation Manual for Sysmac Studio (Z343-E1)
2-3 Creating a New Project
2
2-3-1 Creating a New Project File from the Project Window
