Omron SYSMAC FH Series Operation Manual

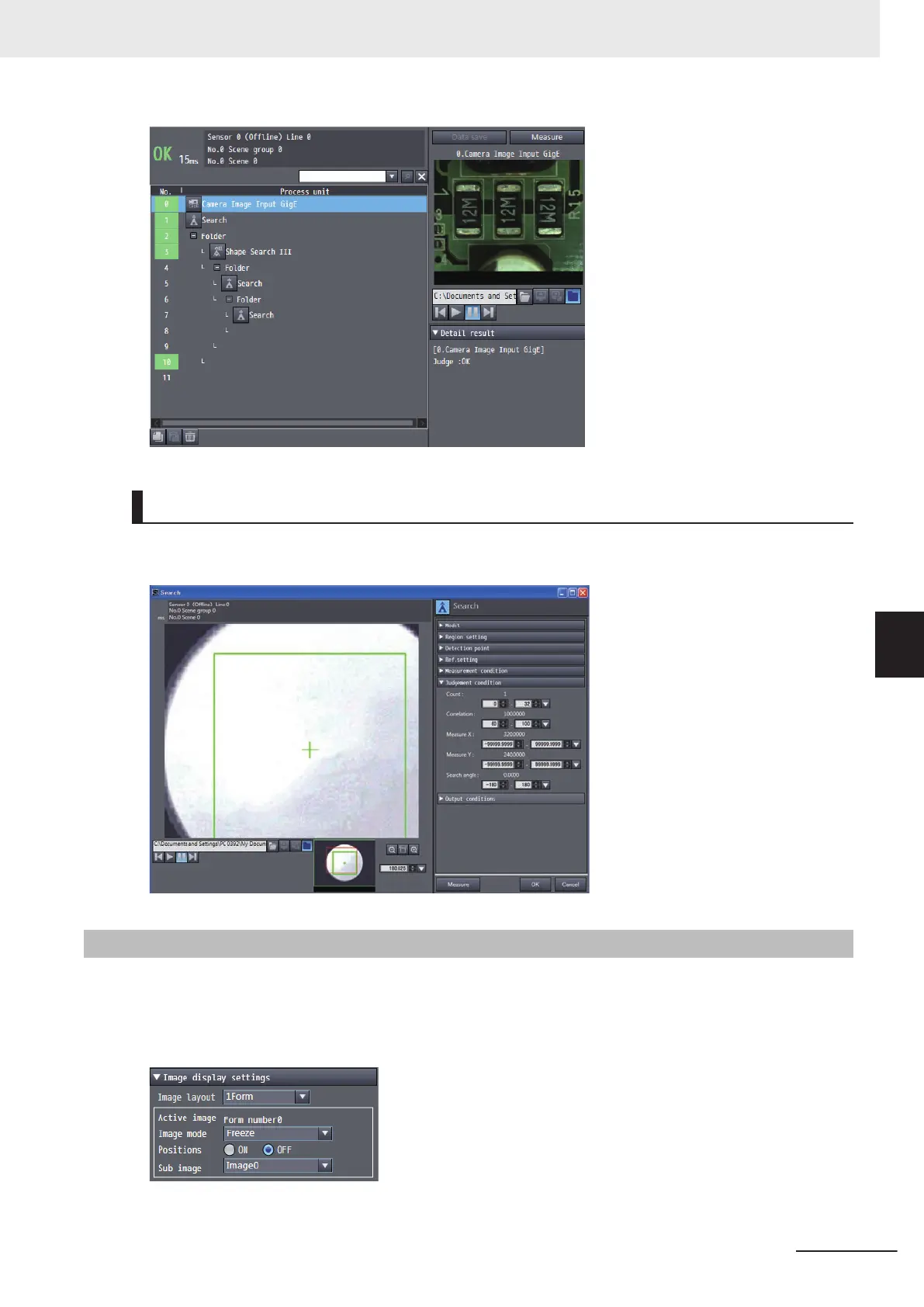

Processing unit editing screen
Open the Judgment condition item and click the Measure
button.
The measurement result of each item that is a judgment result of the processing unit is displayed
6-2-2
Changing the Image Display Settings
You can change the setting for displaying images in the scene maintenance window and monitor win-
dow
.
Open the Image display settings item and change each items.
For details on the image display settings, refer to Image display settings on page 2 - 19.
6 Online Debugging
6 - 5
FH/FHV Series Vision System Operation Manual for Sysmac Studio (Z343-E1)
6-2 Checking Measurement Results
6
6-2-2 Changing the Image Display Settings
