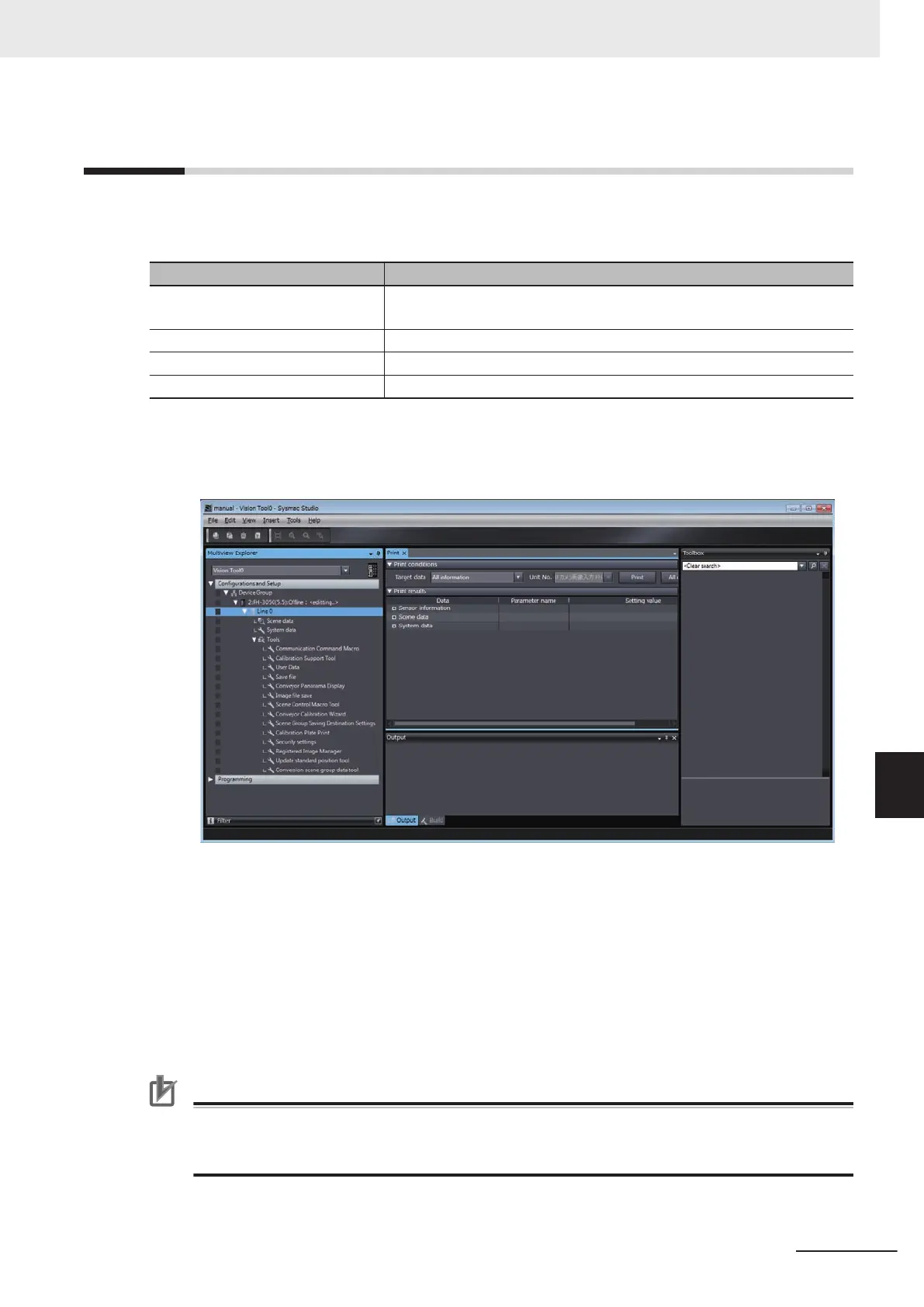

8-14
Print the Settings
With this function, it is possible to print the parameters set in the system data and currently selected
scene data.
Target data Description
All information Prints all of the sensor information, and parameters set in the system da-
ta and the currently selected scene data.
Scene data Prints parameters set in the currently selected scene data.
System data Prints parameters set in the system data.
Processing unit Prints parameters set in the processing units.
1 Open the print window.
Right-click on LineX in the Multiview Explorer and select Print.
The Print window is displayed in the Edit pane.
2 Select the data to be printed.
Select the data to be printed from T
arget data.
Unit No. should be selected when processing unit is selected from Target data.
Select the parameter to be printed and expand the tree.
Click on Expand all to show all parameters.
3 Initiate printing.
Click on Print to print out the parameters shown.
Precautions for Correct Use
This command prints out only the parameters downloaded and uploaded with the Settings
download and upload tools. For details on the Settings download and upload tools.
For details, refer to Vision System FH/FHV Series User's Manual (Cat. No. Z365).
8 Other Useful Functions
8 - 19
FH/FHV Series Vision System Operation Manual for Sysmac Studio (Z343-E1)
8-14 Print the Settings
