8-3
Using the File Save Tool
The file save tool allows you to copy and transfer files in the external memory of the FH/FHV vision
sensor. It also allows you to output logging image files in the FH/FHV vision sensor memory.
8-3-1
Opening the File Save Tool

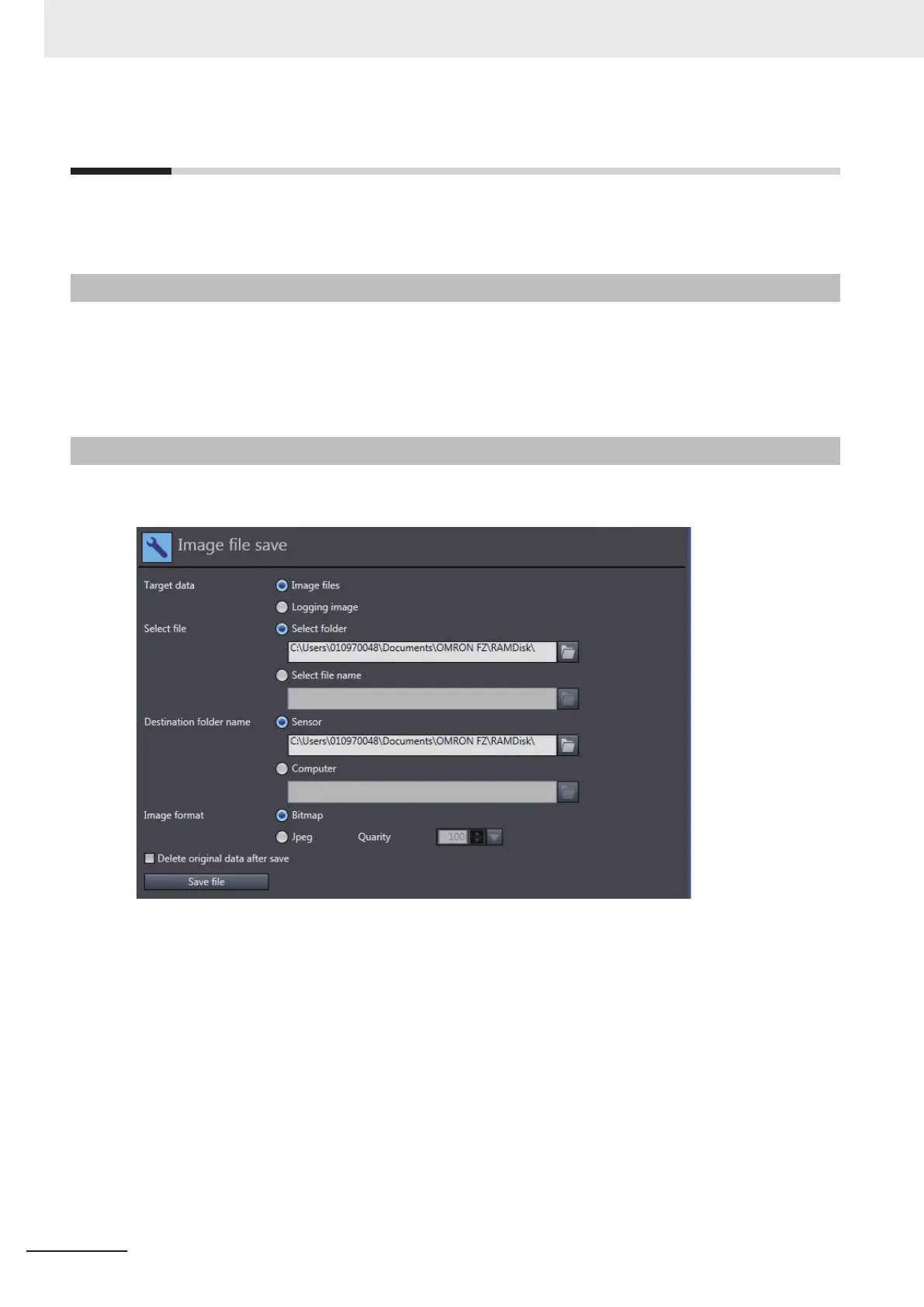

To open the File Save Tool, select Tools - Save file in the Multiview Explorer and then either double-
click Save file to pull up the Save screen or right-click and select Edit from the pop-up menu that ap-
pears.
The file management tool screen appears in the Edit pane.
8-3-2
Copying a File
You can copy a file in the external memory of the FH/FHV vision sensor and then save it under a dif-
ferent name or transfer it to the computer.
1 Select File for T
arget data.
2 Select the file.
You can select data on a folder basis or on a file basis.
If you select an individual folder, you can narrow down the files by type.
The following file types can be selected to narrow down the data.
All files
Logging images (*.ifz, *.byr)
Bitmap (*.bmp)
Jpeg (*.jpg)
CSV (*.csv)
Scene data (*.scn)
Scene group data (*.sgp)
