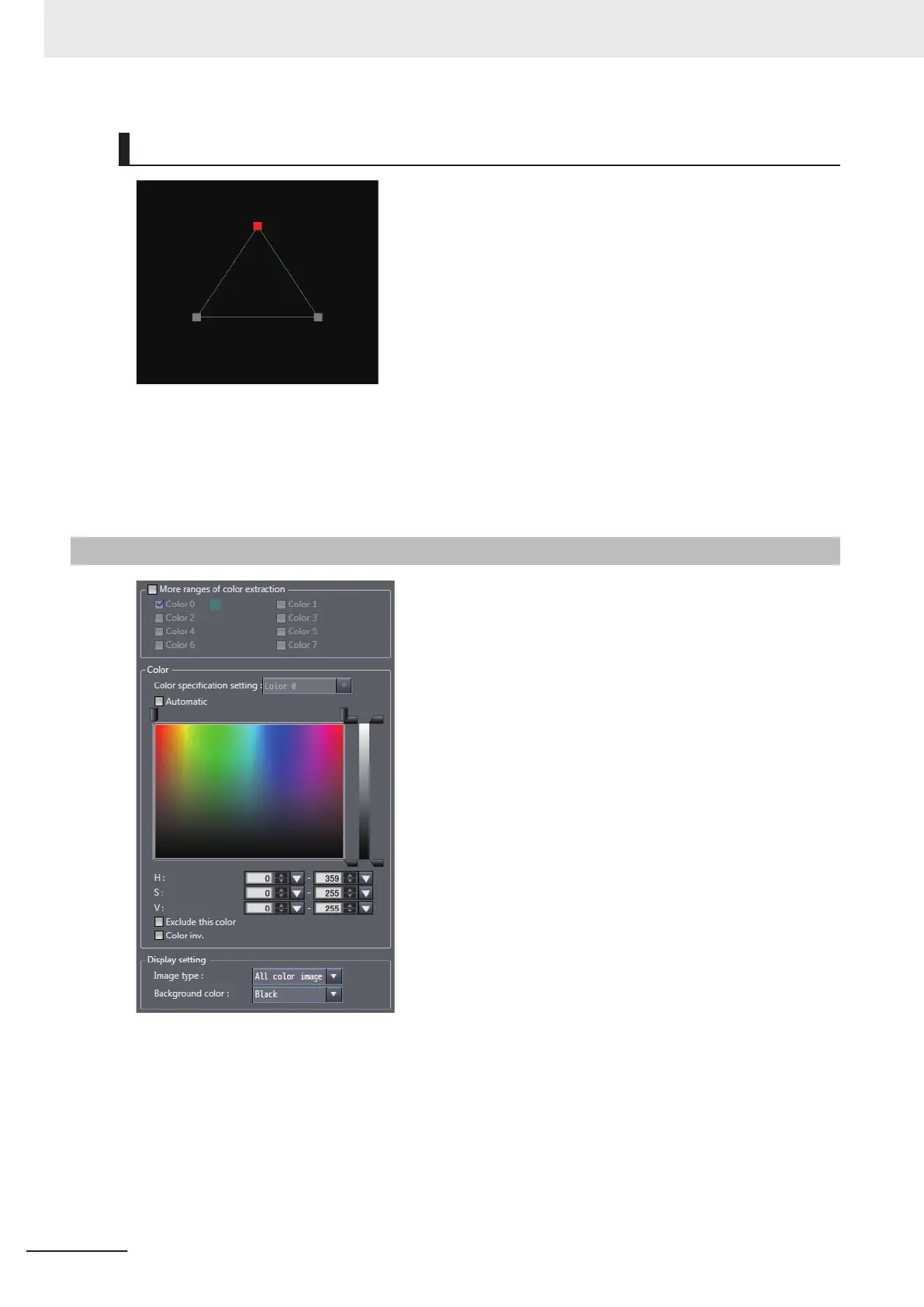

Polygon
This function draws a polygon.
Up to 10 vertices can be added.
Clicking any position on a side creates a new vertex.
Y
ou can change the position of a vertex by dragging it.
The line can be moved by clicking and then dragging the inside of the area.
4-2-3
Color Extraction
You can specify up to eight colors.
Also, when the Automatic
check box is selected, enclosing any part in a displayed image automatical-
ly extracts the color of that part.
The color range can be specified by specifying the hue, saturation, and brightness.
The specifications are the same as for the user interface of the FH/FHV vision sensor.
For details, refer to Vision System FH/FHV Series Processing Item Function Reference Manual (Cat.
No. Z341).
4 Configuring Measurement Settings
4 - 10
FH/FHV Series Vision System Operation Manual for Sysmac Studio (Z343-E1)
