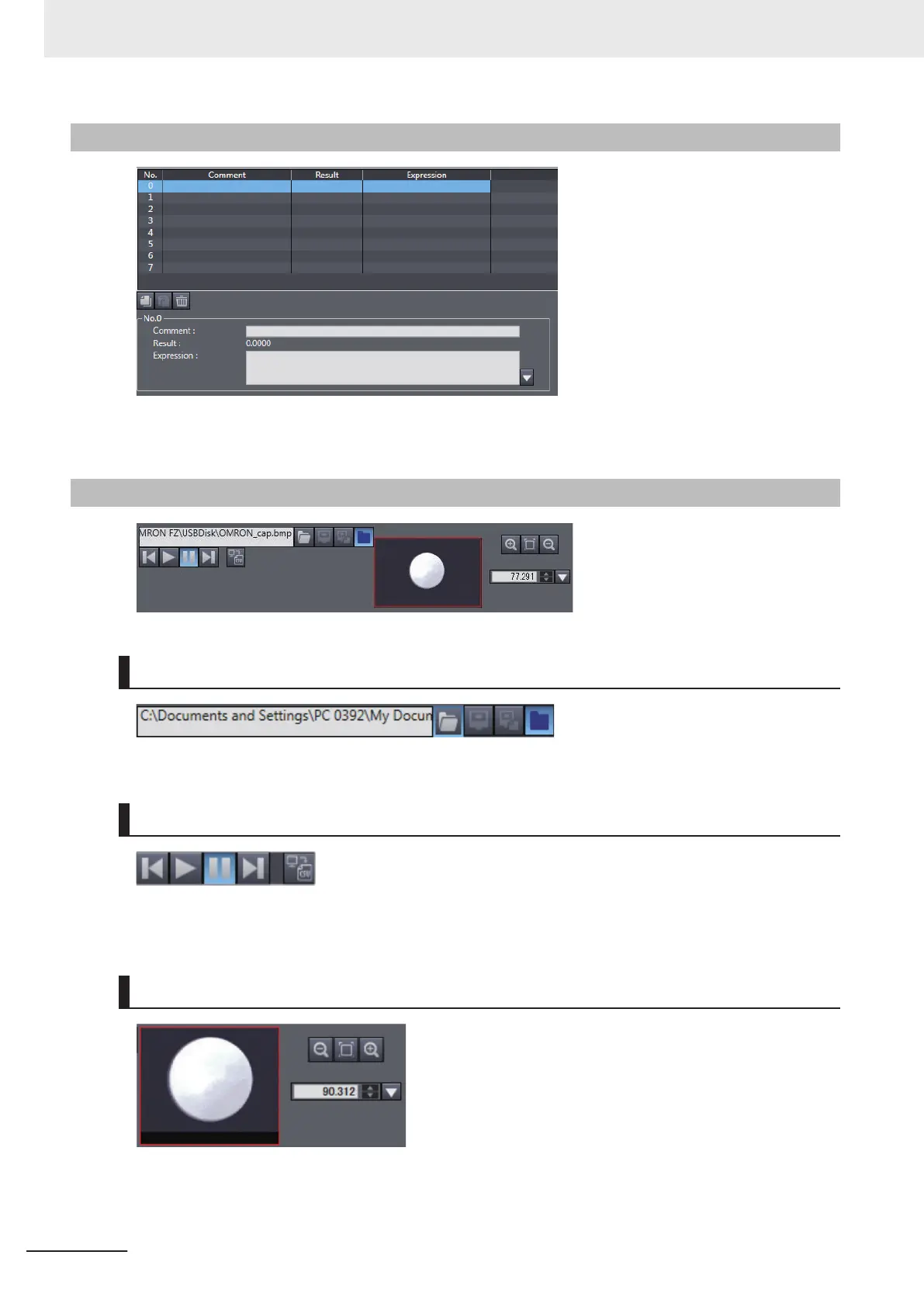

Selecting an item in the list displays the information for the selected item below the list. Each of the
information items displayed below the list can be edited.
4-2-8
Image Control Area
File selection section
This allows you to select the image to display. Refer to File selection section on page
2 - 21.
Image control section
This allows you to control the measurement of the image. Refer to Image control section on page
2 - 21.
Image size control section
This allows you to enlarge or reduce the displayed image.
The place where the image is displayed in the left zoom area is enclosed in a rectangle.
Y
ou can move the display place by moving this rectangle.
