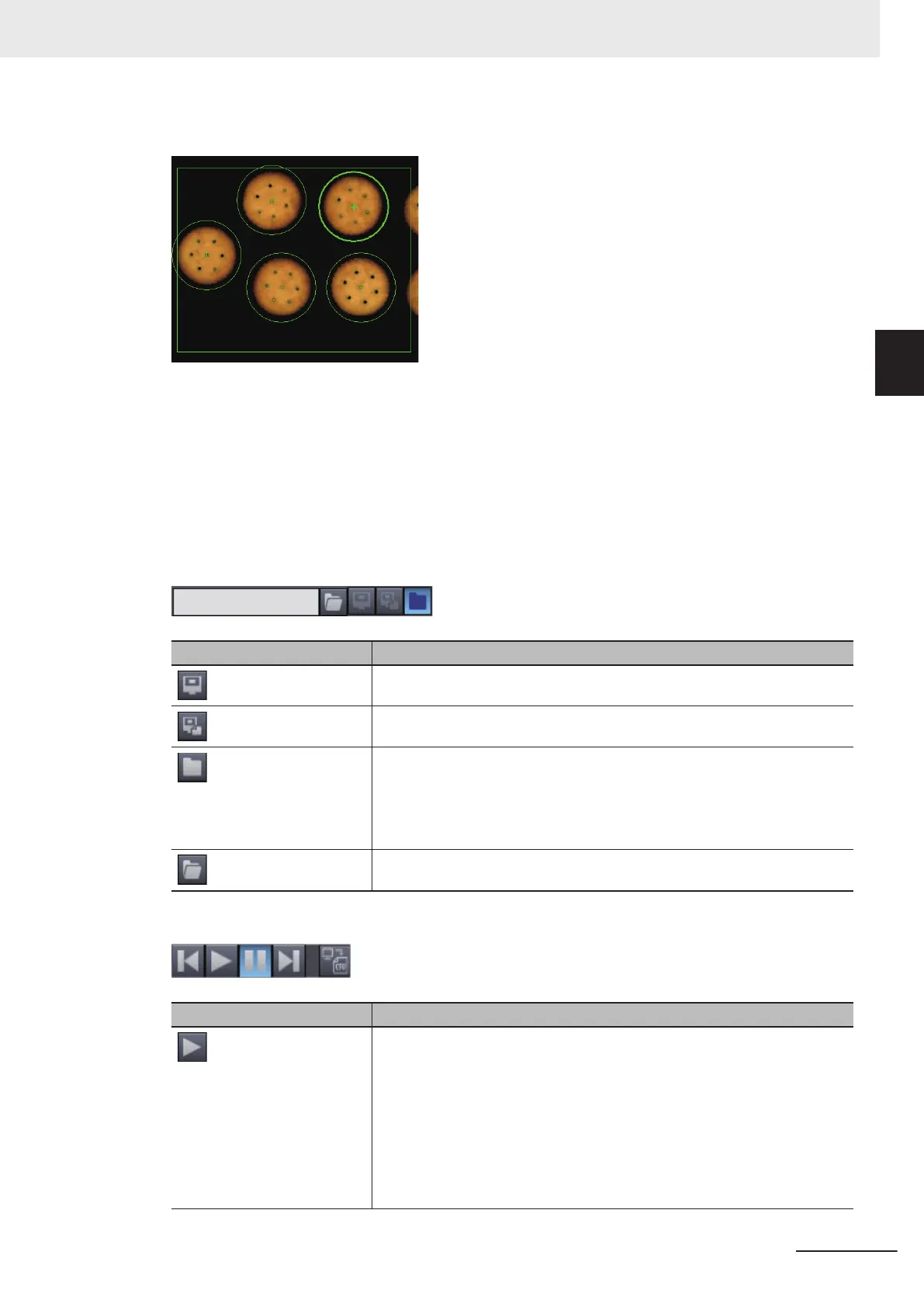

Image display area
This displays the image and measurement result (graphic) for the processing unit selected in the
flow display
.
The settings for image display in the image display area can be changed in the Image display
settings menu.
For details on the Image display settings menu, refer to Image display settings on page 2 - 19.
While an image is displayed enlarged, you can change the display area by left-clicking and drag-
ging the displayed image.
l
File selection section
Button Description
Displays camera images. Selection is not possible when offline.
Displays logging images. Selection is not possible when offline.
Displays file images.
When online, displays images in the RAMDisk or external memory
, i.e. USB
memory.
When off-line, displays images in the following folder on the computer.
C:\Documents and Settings\<User name>\My Documents\OMRON FH
Launch the File Explorer and select an image file.
l
Image control section
Button Description
Performs continuous measurement of images.
In the case of camera images, continuously measures and displays camera
images.
In the case of logging images, continuously measures and displays images
in the logging folder
.
In the case of file images, continuously measures and displays images in
the folder.
When logging images and file images are selected, continuous measure-
ment is stopped after all images are measured.
2 Basic Operations
2 - 21
FH/FHV Series Vision System Operation Manual for Sysmac Studio (Z343-E1)
2-4 Description of Screen Components
