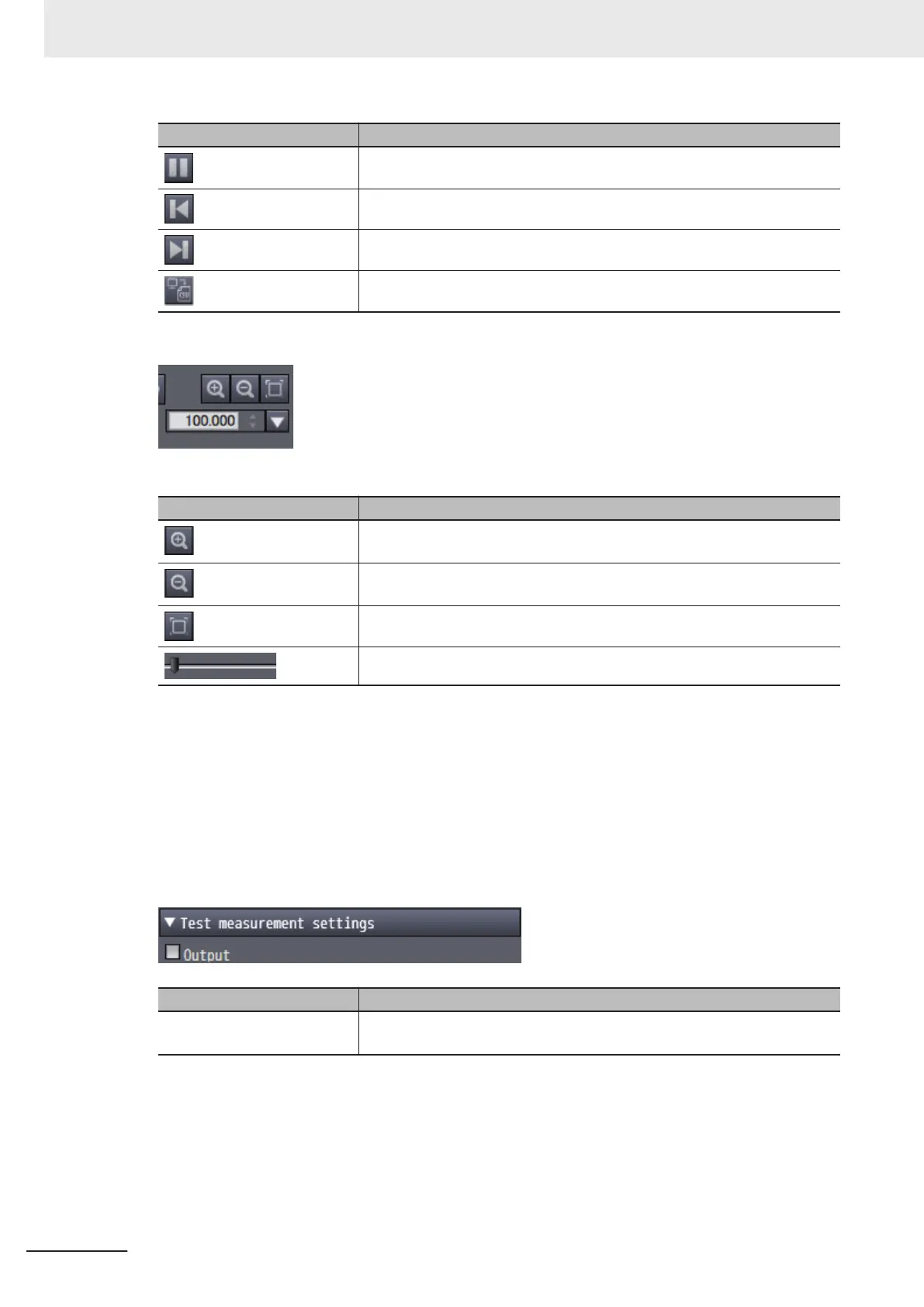

Omron SYSMAC FH Series Operation Manual

Button Description
Stops continuous measurement.
Measures and displays the previous image.
Measures and displays the next image.
Saves the latest image in a file.
l
Image size control section
This allows you to enlarge or reduce the selected image.
Button Description
Enlarges the image. Image display is enlarged in 20% steps. (Upper limit:
1600%)
Reduces the image. Image display is reduced in 20% steps. (Lower limit:
1%)
Makes the image fit the display frame
Enlarges or reduces the image.
l
Data save
This saves the settings data to non-volatile memory of the FH/FHV sensor.
l
Measure
Performs a single measurement.
The measurement process is performed for the image that is currently displayed.
l
Test measurement settings
Item Description
Output Outputs the measurement results to an external device when test measure-
ment is performed.
2 Basic Operations
2 - 22
FH/FHV Series Vision System Operation Manual for Sysmac Studio (Z343-E1)
