Item Description
Image layout Selects the number of images to display.
Selection items: 1Form, 2Form, and 4Form
Image mode Selects the image mode for the image with the focus on it.
Selection items: Through, Freeze, and NG image
Positions Selects position list display for the image with the focus on it.
Selection items: OFF and ON
Sub image Selects the sub image number for the image with the focus on it.
A
vailable sub-image numbers vary depending on the processing item.
Select items: Image0, Image1,..., image31
You can switch the result display content of the processing unit by changing the sub image number.
For details, refer to the content of each processing unit in V
ision System FH/FHV Series Processing
Item Function Reference Manual (Cat. No. Z341).
6-2-3

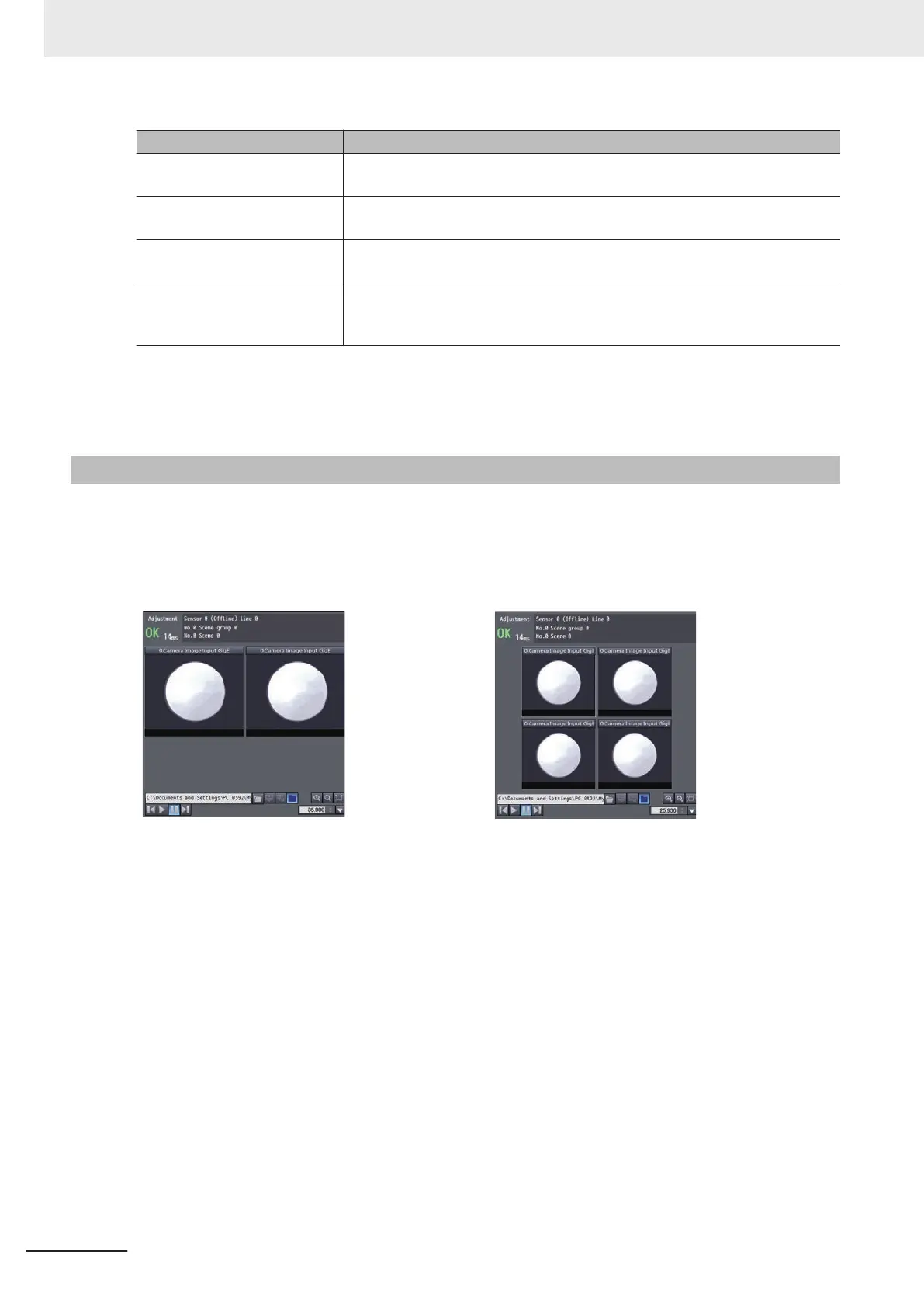

Checking Multiple Measurement Images at the Same Time
You can display multiple images by opening the Image display settings
item and changing Image
layout.
For details on the image display settings, refer to Image display settings on page 2 - 19.
<2Form display> <4Form display>
6 Online Debugging
6 - 6
FH/FHV Series Vision System Operation Manual for Sysmac Studio (Z343-E1)
