3-3-2

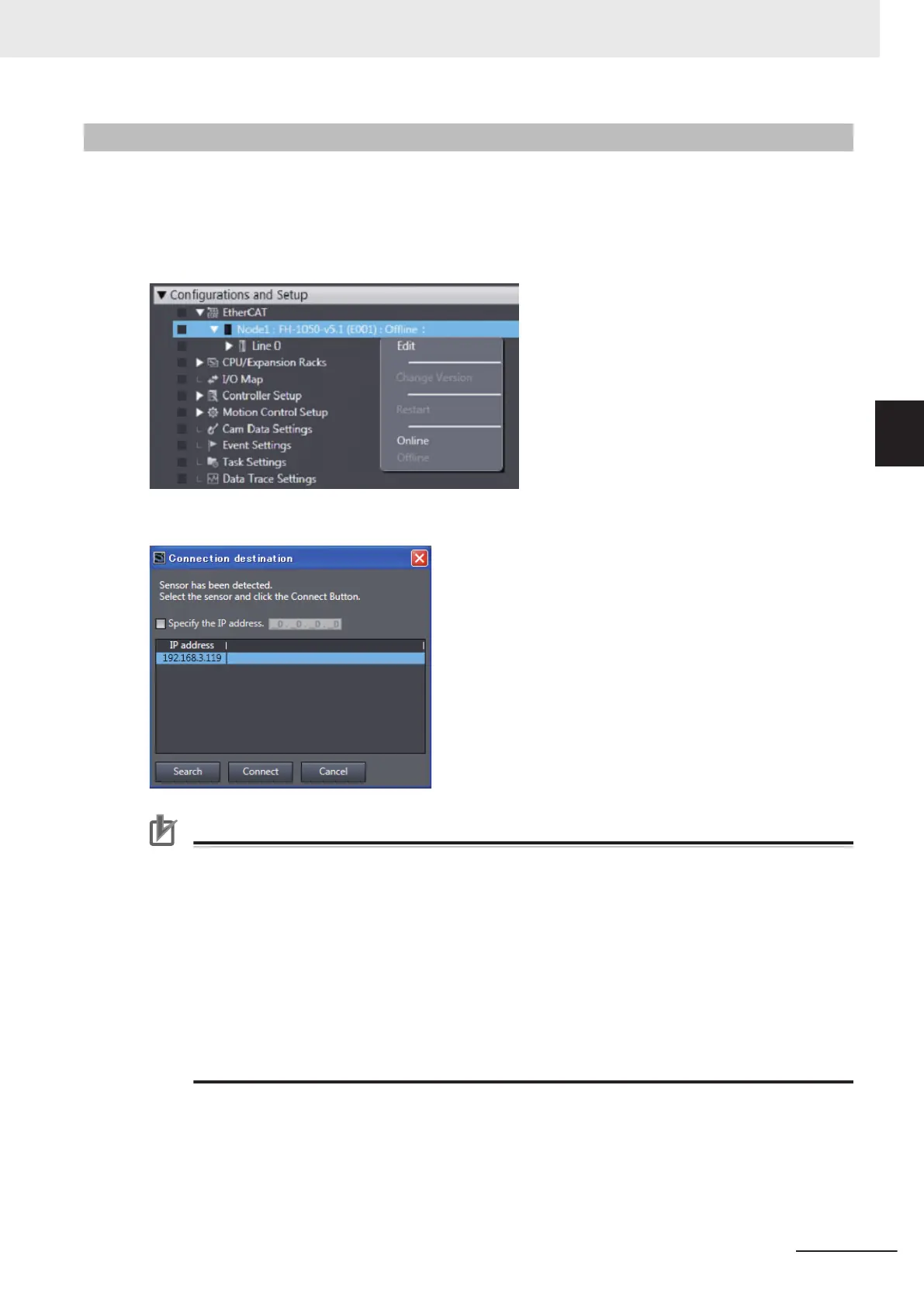

Establishing an Online Connection from the Multiview Explorer
If the FH/FHV vision sensor to be connected has already been set, you can establish an online con-
nection with it by right-clicking the type name of the FH/FHV vision sensor in the Multiview Explorer
and then selecting Online.
For details on setting the FH/FHV vision sensor to be connected, refer to 3-3-1 Establishing an Online
Connection from the Sensor Connection Screen on page 3 - 4.
If the FH/FHV vision sensor that has already been set cannot be found, the automatically detected
FH/FHV vision sensors are displayed in a list. Select the FH/FHV vision sensor you wish to connect to.
Precautions for Correct Use
When you connect vision sensors to Sysmac Studio by the network, set the same network
addresses for all the vision sensors and computer where Sysmac Studio is running.
Example:
When the Ethernet settings set for the vision sensors are as follows, the network addresses
of the vision sensors and the computer are "10.5.5.*." .
IP address: 10.5.5.100
Subnet mask: 255.255.255.0
If you plan to control the vision sensor from Sysmac Studio over the network, you will need to
have the Remote Operation option for the Communication module for the FH/FHV sensor set
to ON (initial setting).
For details on how to configure the settings, refer to Vision System FH/FHV Series User's
Manual (Cat. No. Z365).
When connecting an FH/FHV sensor whose version does not match the version registered in the
project, the following dialog appears.
3 Connecting with a Vision Sensor
3 - 5
FH/FHV Series Vision System Operation Manual for Sysmac Studio (Z343-E1)
