Basic Operations of Scene Data
An FH/FHV vision sensor can handle multiple scene data.
You can perform operations such as switching, copying, and deleting scenes with the scene mainte-
nance functions in the scene maintenance window.

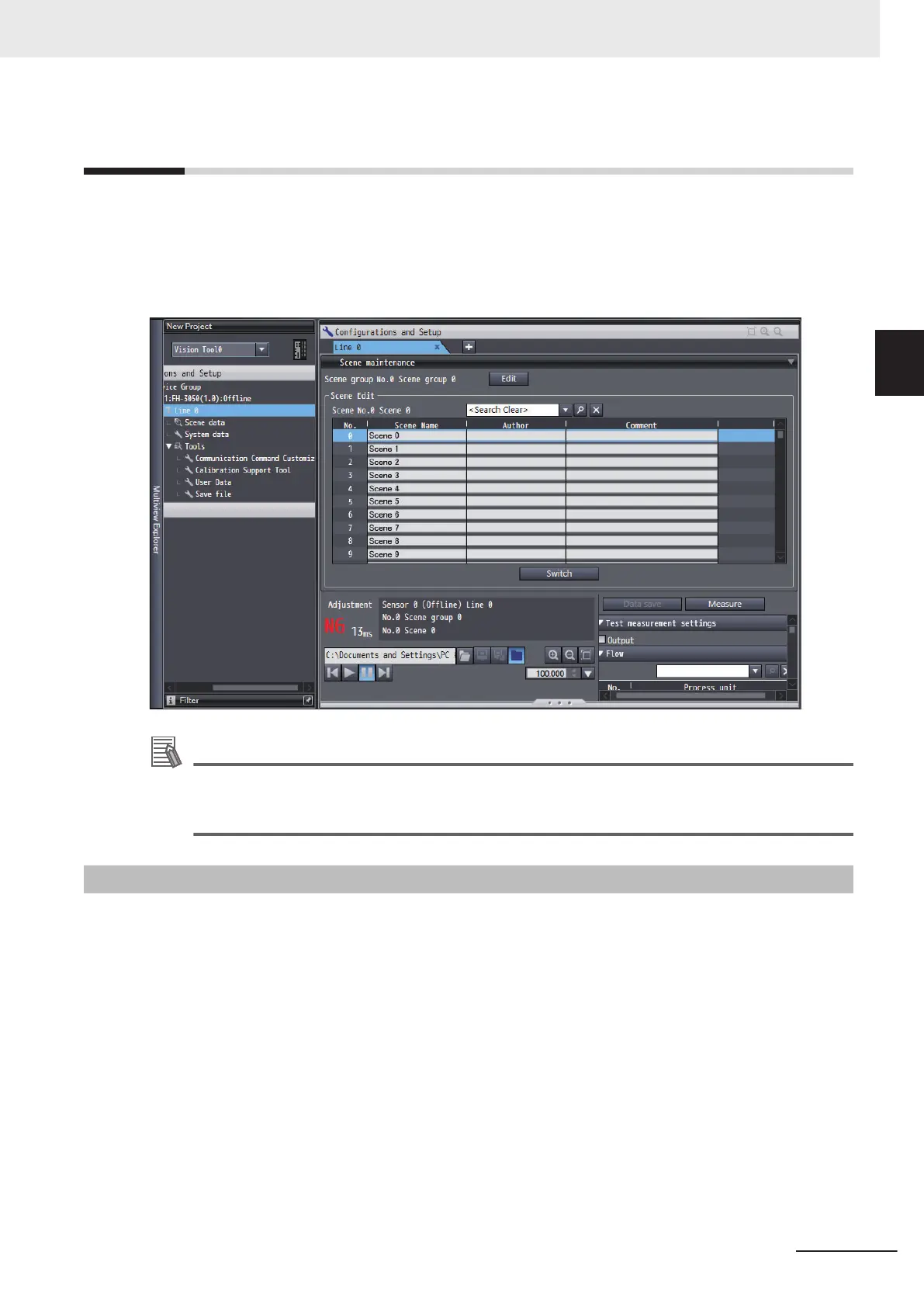

Right-click Line X in the Multiview Explorer and select Scene maintenance screen from the menu.
Click Scene maintenance and show Scene maintenance Pane.
Additional Information
Project data that was edited offline can be transferred to the FH/FHV vision sensor.
For details on how to transfer project data, refer to 3-4 Synchronizing Project Data and Sensor
Setting Data on page
3 - 7.
2-5-1
Switching Scenes
You can switch scenes by selecting the target scene in the scene list and then clicking the Switch
button.
