Description of Screen Components
This section describes the screen components in FH/FHV project.
For a description of the screen components in NJ/NX/NY-series CPU Unit project, refer to Parts of the
Window in the Sysmac Studio Version 1 Operation Manual (Cat. No. W504).

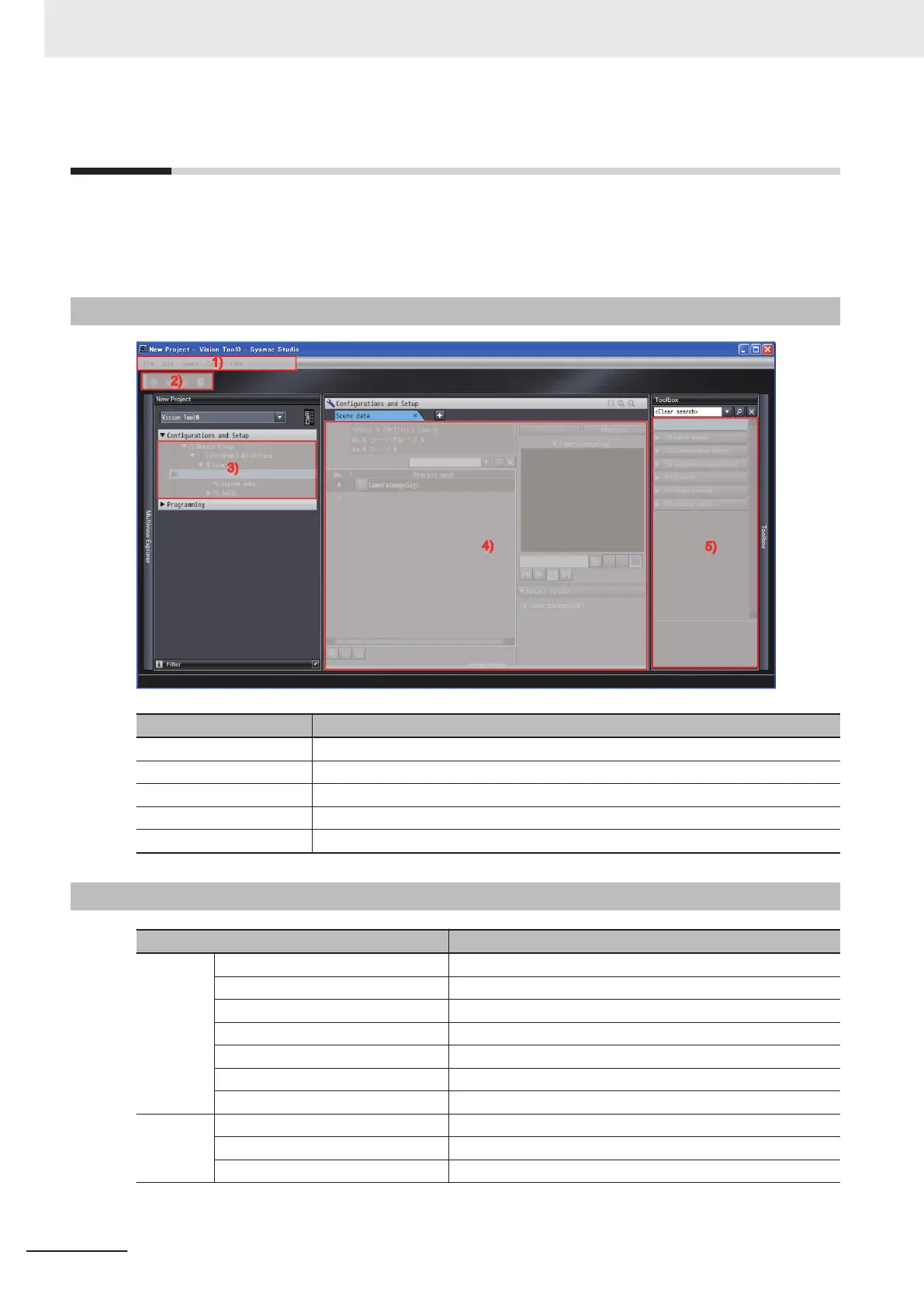

2-4-1
Application Window
1)
1)
2)
3)
4)
5)
No. Name
1 Menu Bar
2 Toolbar
3 Multiview Explorer
4 Edit Pane
5 Toolbox
2-4-2
Menu Bar
Menu Name Description
File Close Closes the project.
Save Saves the project.
Save As Saves the project with a different name.
Save As New Number Saves the project with a new update number.
Import Imports an exported file so that it can be edited in the tool.
Export Saves the project as an external file.
Exit Closes Sysmac Studio.
Edit Copy Copies the selected item.
Paste Pastes the copied item.
Delete Deletes the selected item.
2 Basic Operations
2 - 10
FH/FHV Series Vision System Operation Manual for Sysmac Studio (Z343-E1)
