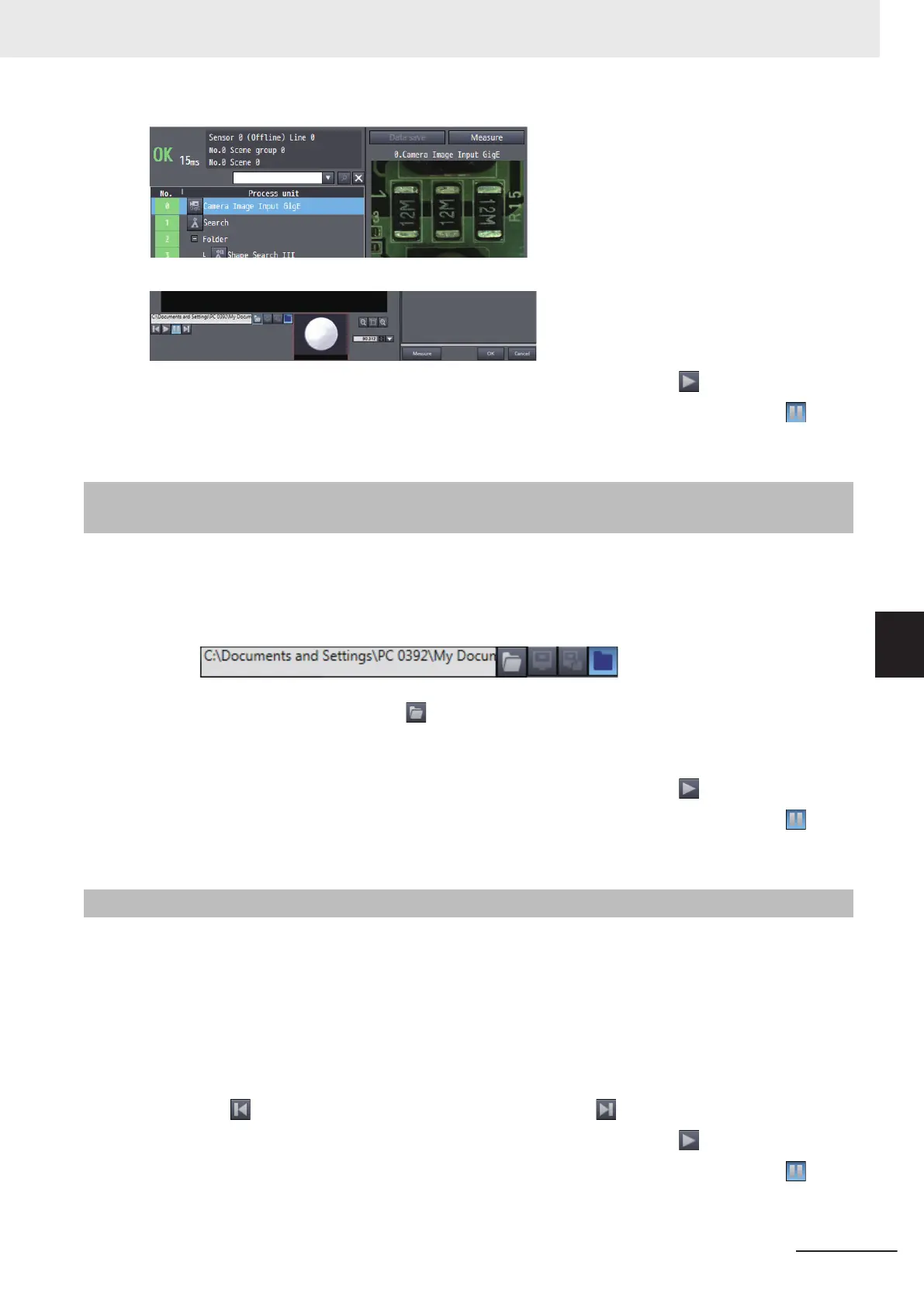

<Processing unit editing screen>
To start continuous measurement, click the continuous measurement button ( ).
If you wish to stop continuous measurement, click the continuous measurement stop button ( ).
The settings data cannot be edited during continuous measurement.
6-1-2
Measuring File Images in the RAMDisk or the External Memory,
i.e. USB Memory of the V
ision Sensor
Select the measurement target file and click the Measure button.
Select the file as described below
.
1 Click the file button.
2 Click the file selection button ( ) and then select the target file.
3 Click the Measure button.
T
o start continuous measurement, click the continuous measurement button (
).
If you wish to stop continuous measurement, click the continuous measurement stop button ( ).
The settings data cannot be edited during continuous measurement.
6-1-3
Measuring Logging Images in the Vision Sensor Memory
Select the measurement target logging image and click the Measure button.
Select the file as described below
.
1 Click the Logging image button.
2 Click the Measure button.
If you wish to change the measurement target logging image, click the button for measuring the previ-
ous image (
) or click the button for measuring the next image ( ).
T
o start continuous measurement, click the continuous measurement button (
).
If you wish to stop continuous measurement, click the continuous measurement stop button ( ).
The settings data cannot be edited during continuous measurement.
6 Online Debugging
6 - 3
FH/FHV Series Vision System Operation Manual for Sysmac Studio (Z343-E1)
6-1 Performing Test Measurement
6
6-1-2 Measuring File Images in the RAMDisk or the External Memory, i.e. USB Memory of the Vi- sion Sensor
