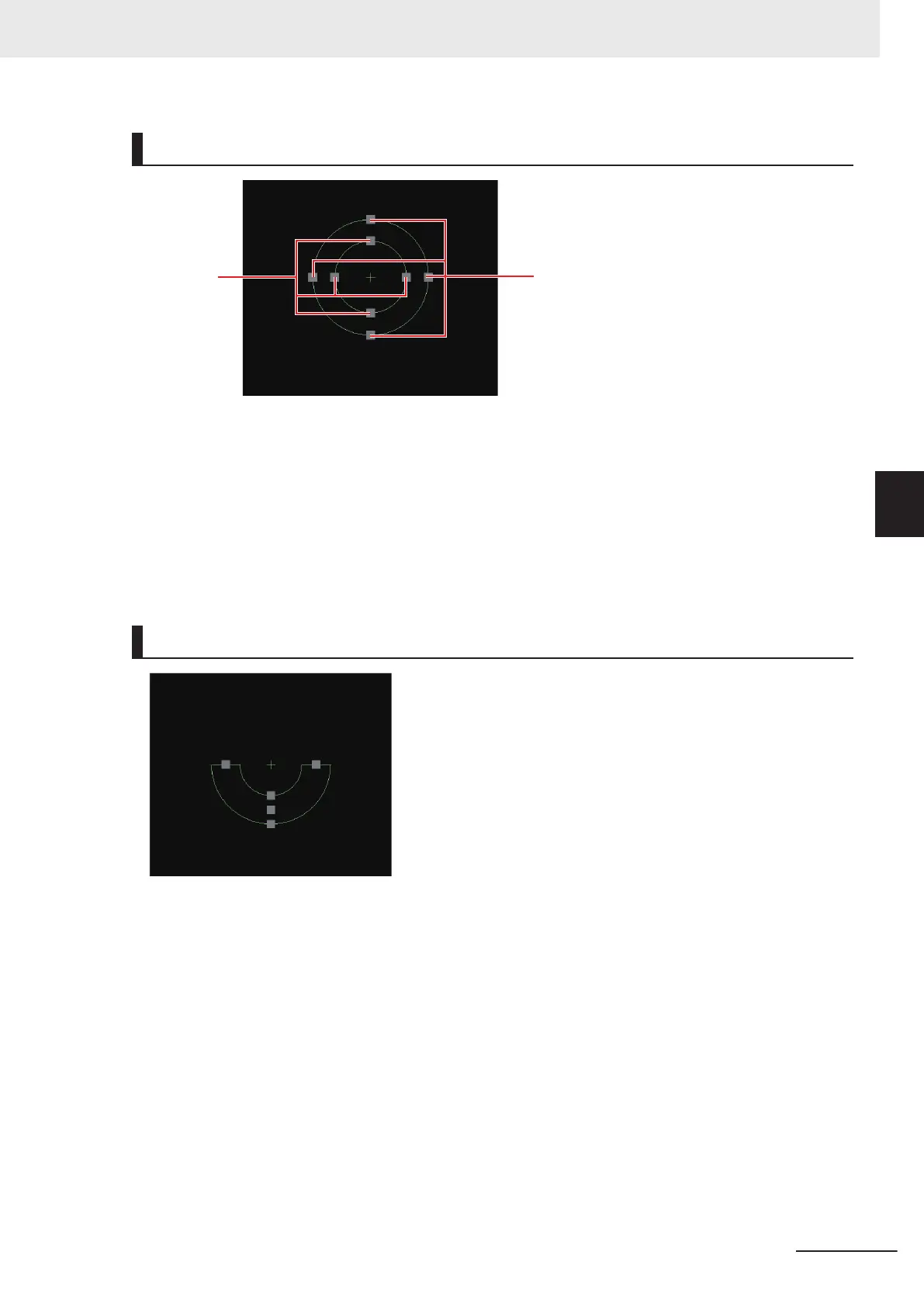

Circumference
Vertex (1)
Vertex (2)
This function draws a circumference.
Y
ou can change the size by dragging the following vertices.
• Vertex (1)
These change the radius of the inner circle.
• Vertex (2)
These change the size of the circle while maintaining the difference in the diameters of the inner and
outer circles.
The line can be moved by clicking and then dragging the inside of the area.
Wide arc
2)
2)
2)
2)
1)
1)
1)
1)
3)
3)
This function draws a wide arc.
Y
ou can change the start point, end point, width, and position by dragging the following vertices.
• Vertex (1)
These allow you to change the width.
• Vertex (2)
These allow you to change the start point, end point, and radius.
• Vertex (3)
This allows you to move the center position while keeping the start point and end point positions
fixed.
The line can be moved by clicking and then dragging the inside of the area.
4 Configuring Measurement Settings
4 - 9
FH/FHV Series Vision System Operation Manual for Sysmac Studio (Z343-E1)
4-2 Editing a Processing Unit
4
4-2-2 Editing an Area
