Item Description
Load from file Loads the setting data of processing units from the specified file.
When on-line, loads a Scene data file in the RAMDisk or the external memory
, i.e.
USB memory from the selected Scene group. When off-line, loads the Scene data
file in the described following folder on the computer.
C:\Documents and Settings\<User name>\My Documents\OMRON FH
*1. If the processing item is not supported in the edit operation, the following message appears.
The ProcItem has not been supported.
Menu buttons
Button Description
Copies the processing unit with the focus on it.
Pastes the copied processing unit.
Deletes the processing unit with the focus on it.

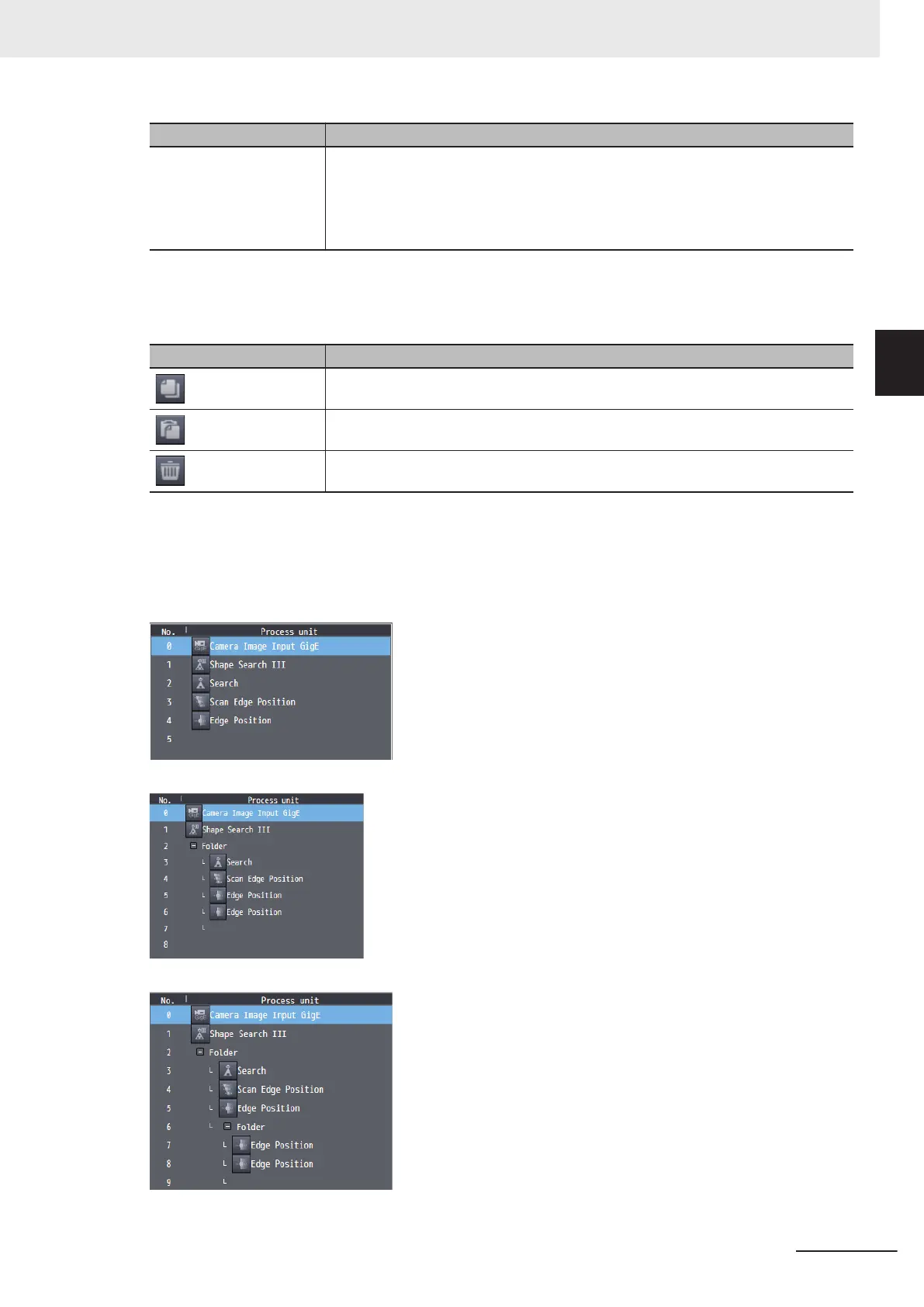

Display is hierarchical in the flow list when the following processing units are used.
•
Folder unit
• Parallelize unit
• Parallelize task unit
<No folder unit>
<Folder unit layer 1>
<Folder unit layer 2>
<Parallelize unit>
2 Basic Operations
2 - 37
FH/FHV Series Vision System Operation Manual for Sysmac Studio (Z343-E1)
2-6 Basic Operations of Flow Editing
2
2-6-2 Managing Processing Units
