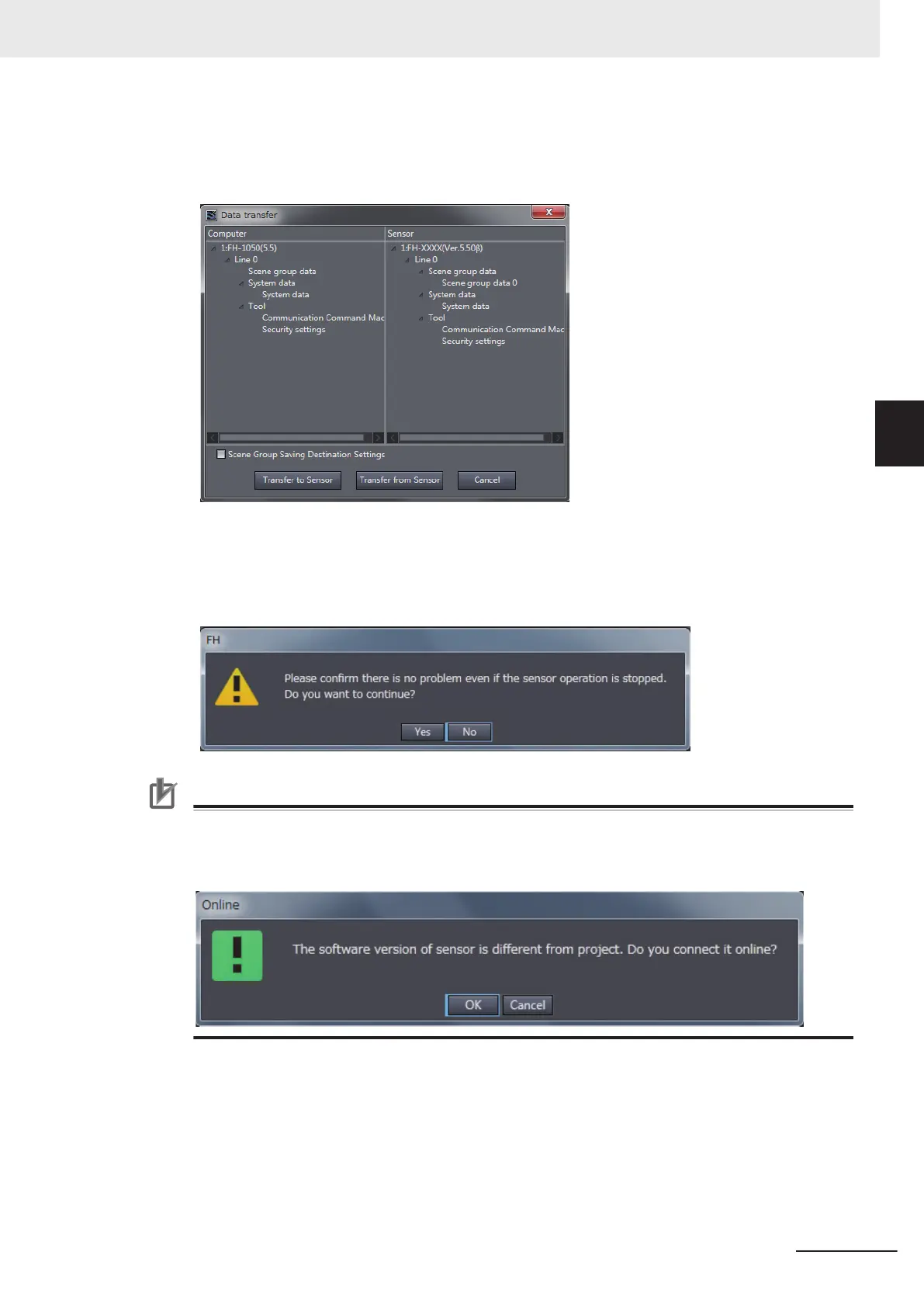

3 Select the data that you want to transfer.
The Data transfer window is displayed.
Select the check box of the data that you want to transfer
.
4 Initiate the data transfer.
T
o transfer the setting data in FH/FHV vision sensor to the project, select Transfer to
computer.
Choose Yes when the below message appears to begin the transfer.
Precautions for Correct Use
To transfer settings data with large file sizes, you will need to use a compatible external memory
device that can be inserted into the FH/FHV vision sensor
.
If the below message appears to indicate that the file size is too large for a normal transfer, in-
sert a compatible memory device with enough free space to proceed.
3 Connecting with a Vision Sensor
3 - 9
FH/FHV Series Vision System Operation Manual for Sysmac Studio (Z343-E1)
3-4 Synchronizing Project Data and Sensor Setting Data
3
3-4-2 Transferring Setting data in the Sensor to a Project
