Chapter 6: Secure SSH Tunneling & SDT Connector
146 Console Server & RIM Gateway User Manual

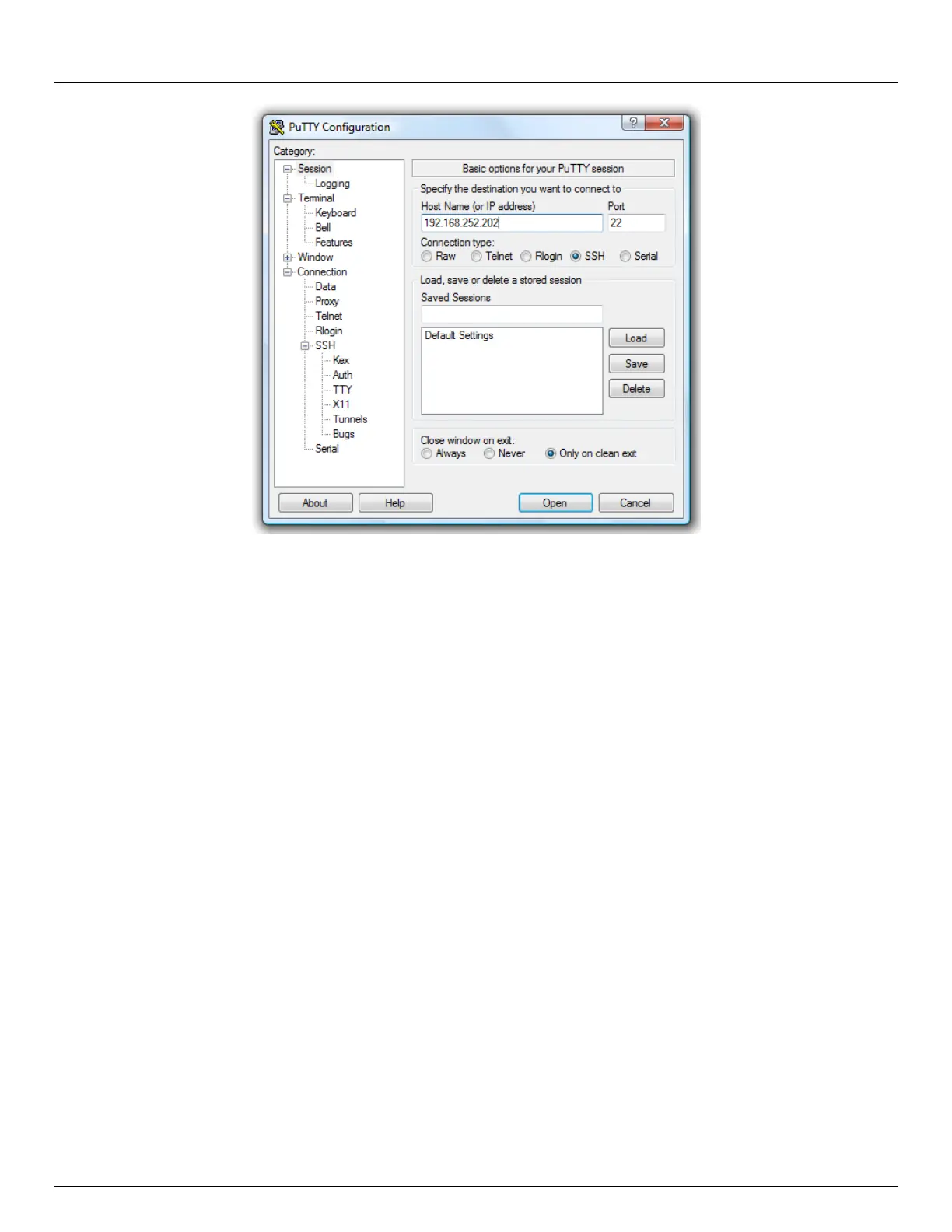

In the Session menu enter the IP address of the console server in the Host Name or IP address field
For dial-in connections, this IP address will be the Local Address that you assigned to the console server
when you set it up as the Dial-In PPP Server
For Internet (or local/VPN connections) connections this will be the public IP address of the console server
Select the SSH Protocol, and the Port will be set as 22
Go to the SSH: Tunnels menu and in Add new forwarded port enter any high unused port number for the Source
port e.g. 54321
Set the Destination: IP details
If your destination device is network connected to the console server and you are connecting using RDP, set
the Destination as <Managed Device IP address/DNS Name>:3389 e.g. if when setting up the Managed
Device as Network Host on the console server you specified its IP address to be 192.168.253.1 (or its DNS
Name was accounts.myco.intranet.com) then specify the Destination as 192.168.523.1:3389 (or
accounts.myco.intranet.com:3389 ). Only devices which have been configured as networked Hosts can be
accessed using SSH tunneling (except by the “root” user who can tunnel to any IP address the console server
can route to.
