User Manual
Advanced Console Server & RIM Gateway User Manual 147

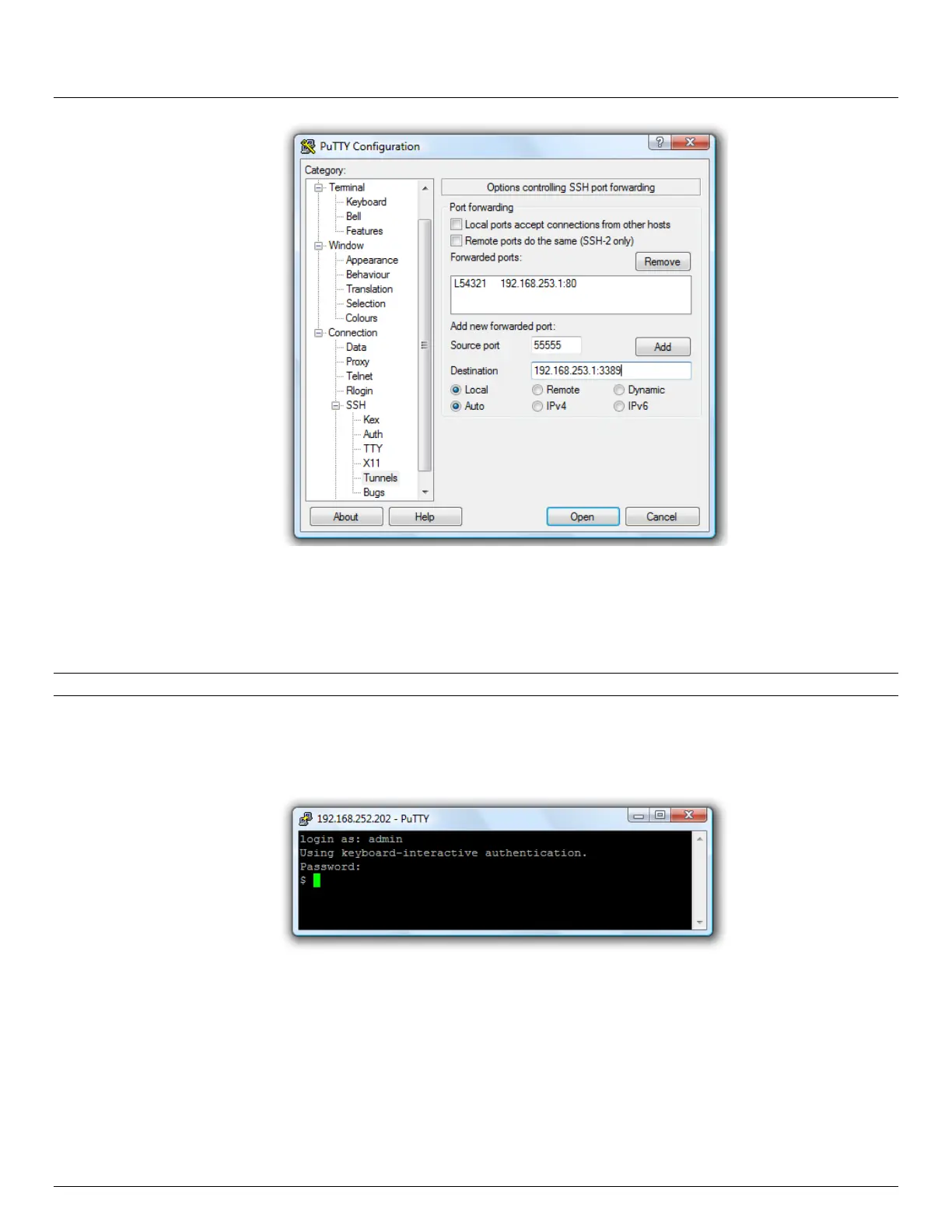

If your destination computer is serially connected to the console server, set the Destination as <port
label>:3389 e.g. if the Label you specified on the serial port on the console server is win2k3, then specify the
remote host as win2k3:3389 . Alternative you can set the Destination as portXX:3389 where XX is the SDT
enabled serial port number e.g. if port 4 is on the console server is to carry the RDP traffic then specify
port04:3389
Note http://www.jfitz.com/tips/putty_config.html has useful examples on configuring PuTTY for SSH tunneling
Select Local and click the Add button
Click Open to SSH connect the Client PC to the console server. You will now be prompted for the
Username/Password for the console server user
If you are connecting as a User in the “users” group then you can only SSH tunnel to Hosts and Serial Ports
where you have specific access permissions
If you are connecting as an Administrator (in the “admin” group) then you can connect to any configured Host
or Serial Ports (which has SDT enabled)
To set up the secure SSH tunnel for a HTTP browser connection to the Managed Device specify port 80 (rather than port
3389 as was used for RDP) in the Destination IP address.
To set up the secure SSH tunnel from the Client (Viewer) PC to the console server for VNC follow the steps above,
however when configuring the VNC port redirection specify port 5900 in the Destination IP address.
