4-8 Workstation 5A Setup Guide - Fourth Edition
Installing and Operating the Workstation 5A
The IO Panel
CF Card Cover Slot
The Figure below shows CF Card Cover and factory installed (For
Windows Embedded CE 6.0) CF Card Label that allows its size to be
determined at a glance. Sizes of 256MB, 512MB and 4GB are currently in
the field.

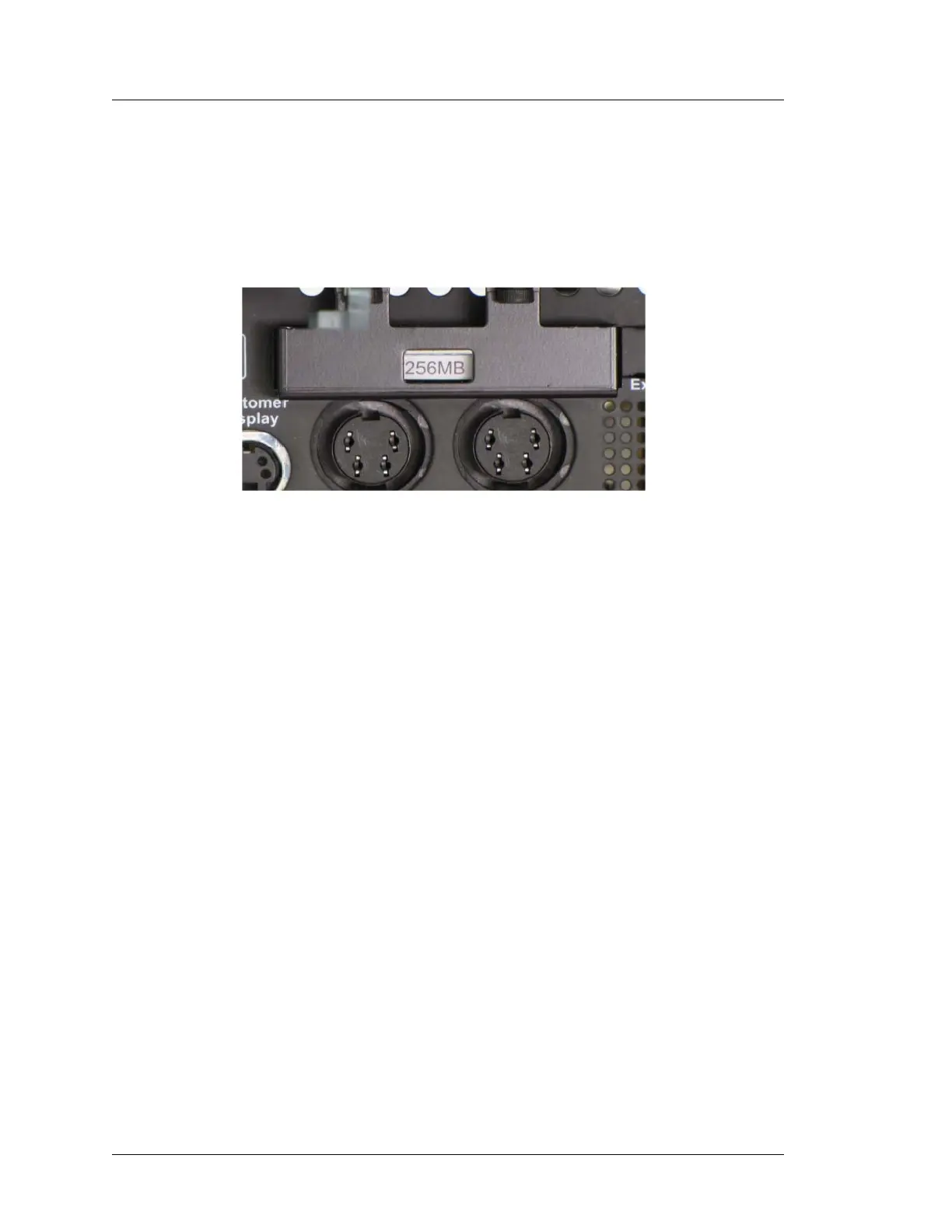

Figure 4-3: CF Cover Slot to view CF Card Size Label
For Windows Embedded CE 6.0 R3 configurations, the CF card is blank
when shipped from the factory. The CAL places the client application on
the CF card, and Windows Embedded CE 6.0 places the persistent registry
on this storage medium.
How to use the Compact Flash (CF) Card
If you have not used a CF card, take a moment to familiarize yourself with
this device.
• For Windows Embedded CE 6.0 R3 configurations, a MICROS
approved CF Card must be installed in order for the unit to start.
WIN32 units ship without a CF Card installed.
• CF Cards are not plug and play devices. Do not remove or insert a CF
Card when the unit is ON. Always use the power button to turn the unit
off before removing or installing a CF Card.
• The CF card is a keyed device - but it is possible to force the card into
the socket the wrong way and damage the CF riser card.
