Workstation 5A Setup Guide - Fourth Edition B-7
Connector and Cable Diagrams
Hook-up Cables
Hook-up Cables
The following pages show wiring diagrams of various hook-up cables that may
be used with the Workstation 5A.
IDN Port RS232 Cables

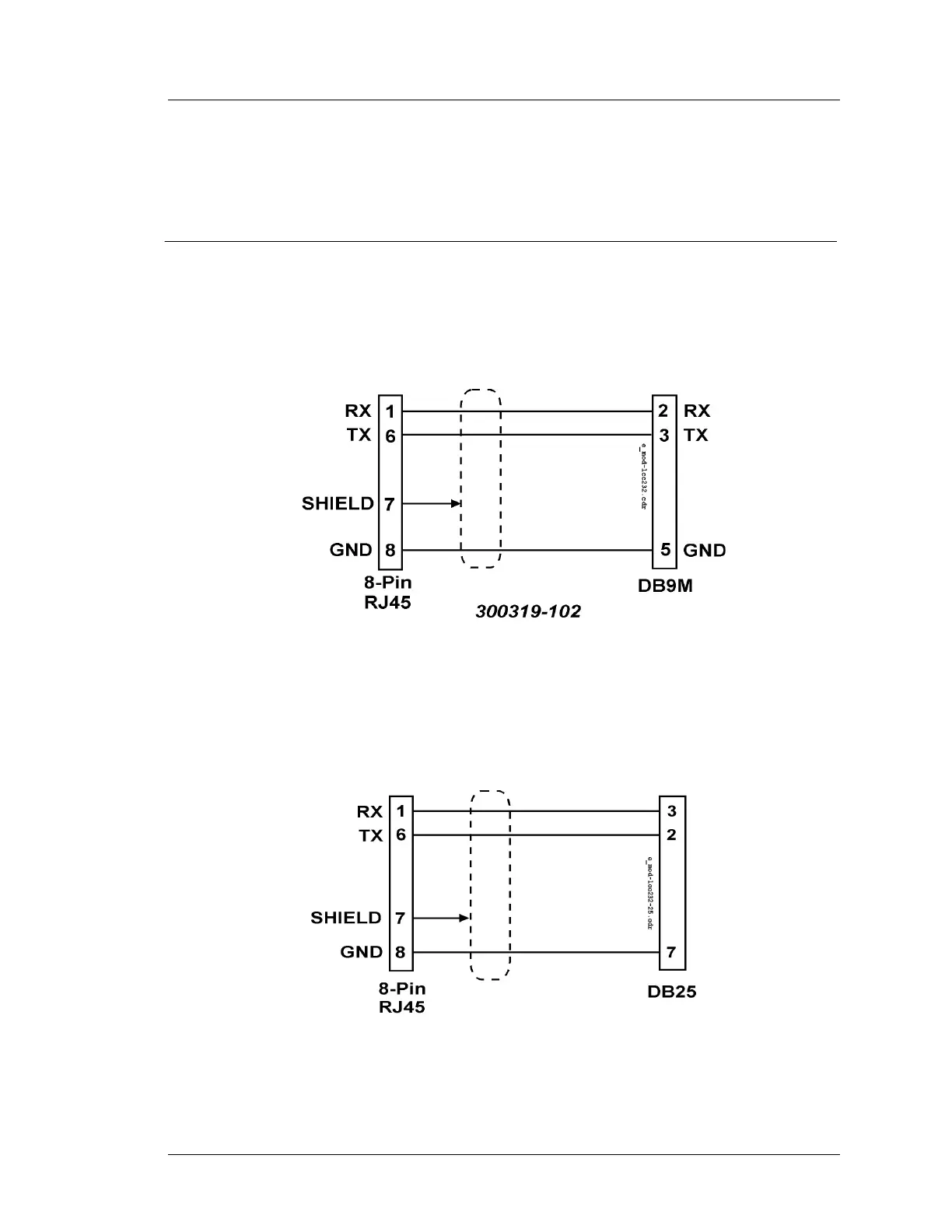

Figure B-8 displays a cable that includes the RS232 signals from the IDN Port
to a DB9 male connector. This cable is available from MICROS by ordering
P/N 300319-102.
Figure B-8: IDN Port to RS232 DB9 Male Connector
Figure B-9 shows a cable diagram that adapts the IDN port to a DB25
connector.
Figure B-9: IDN Port to RS232 DB25 Connector
