3-8 Workstation 5A Setup Guide - Fourth Edition
What’s Inside?
System Board Components
WS5A System Board Connectors (Revisions C, and D)
Please note that J14 is reserved for the IO Panel Powered USB Connection and
is not intended for options such as the finger print reader or WiFi.

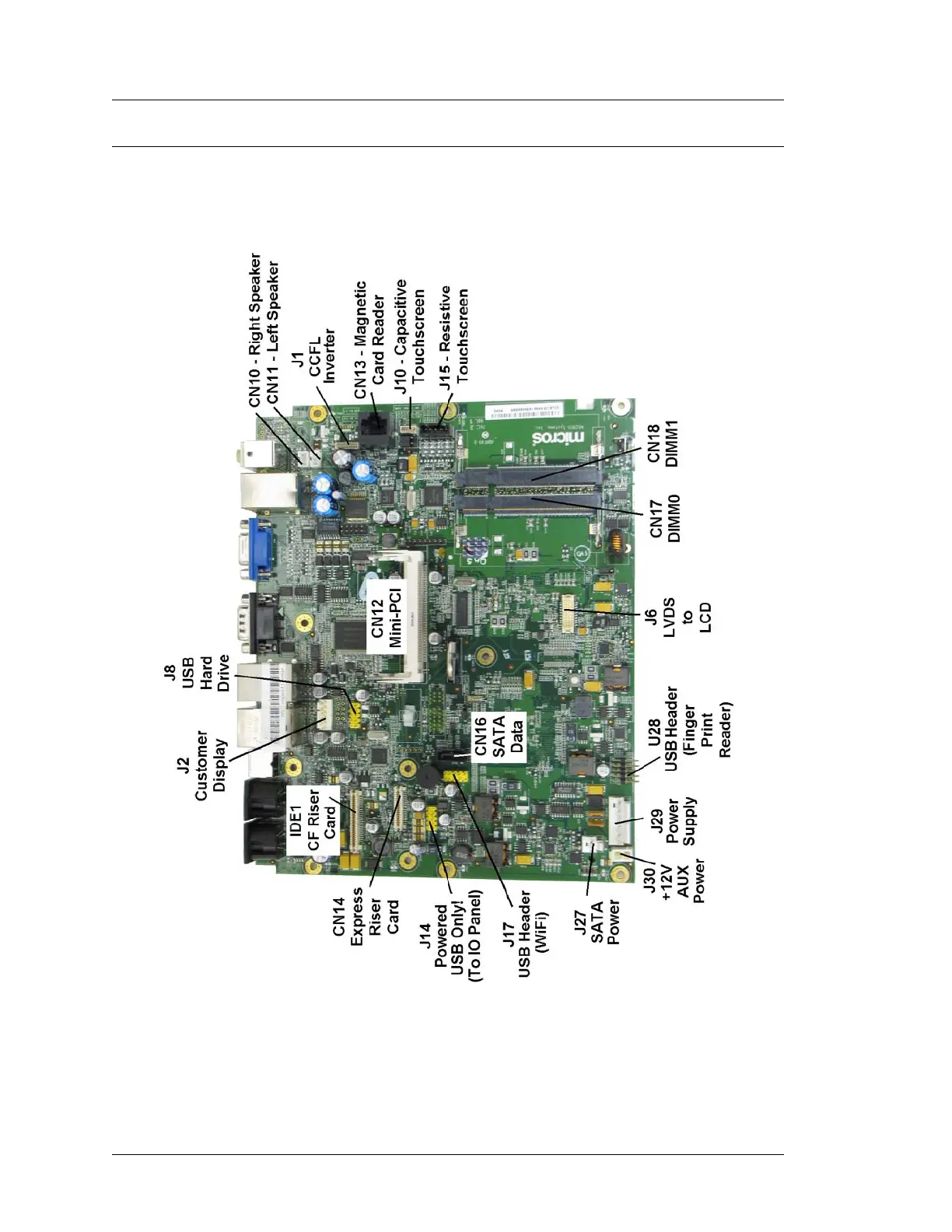

Figure 3-7: System Board Revision C or D Connectors
