4-14 Workstation 5A Setup Guide - Fourth Edition
Installing and Operating the Workstation 5A
Operation
Operation
This section presents operational procedures for the Workstation 5A including
how to use the power button to transition the unit between the NOPOWER, and
ON power states.
Operator Features

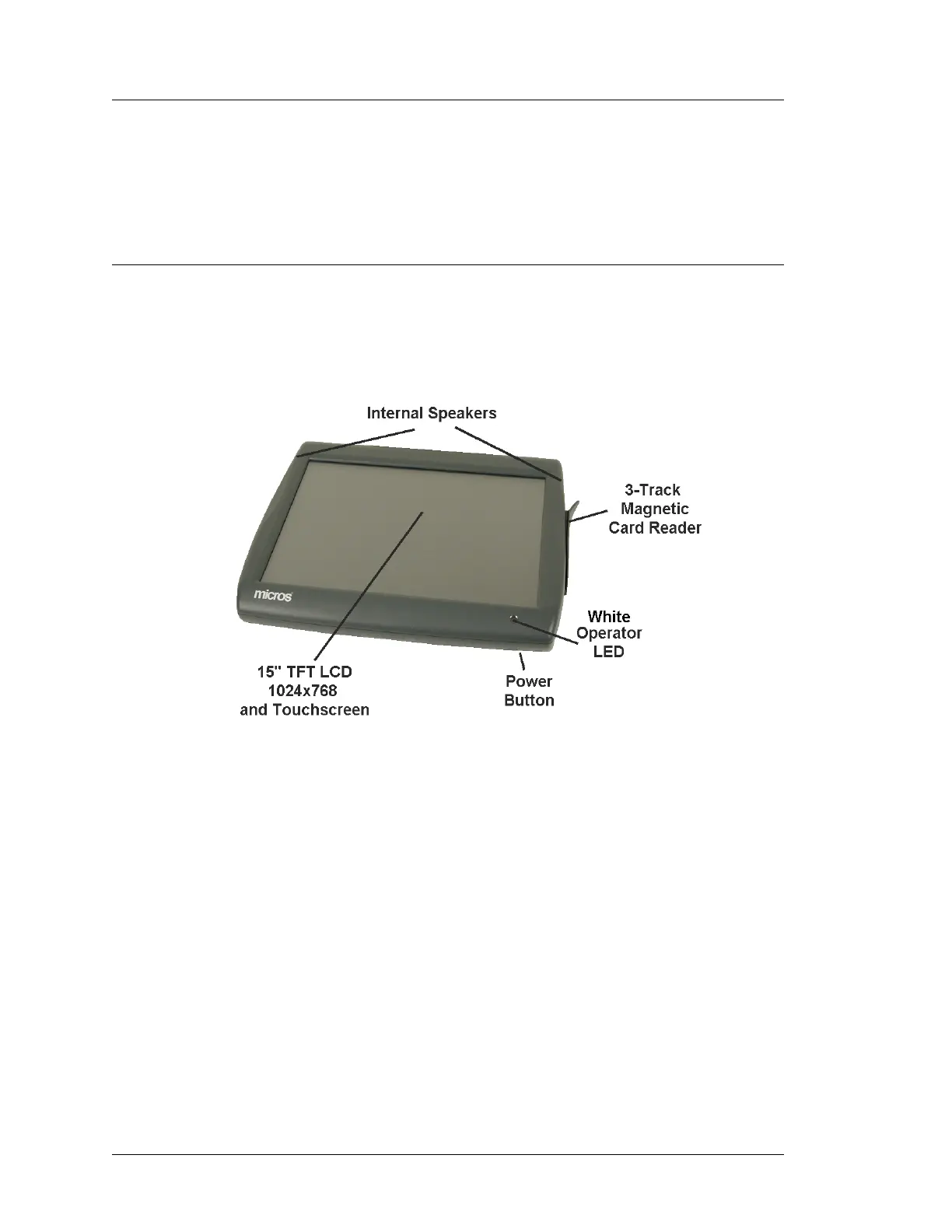

Figure 4-10 points out the operator features of the Workstation including the
Power Button, White Operator LED, Magnetic Card Reader, and the Operator
Touchscreen LCD.
Figure 4-10: Workstation 5A Operator Features
Operator LCD and Touchscreen
The Operator LCD is a 15” Active Matrix LCD with a resolution of 1024x768.
The 5-wire resistive or optional capacitive touchscreen glass is positioned over
the LCD.
Power Switch
The power switch is used by the operator to transition the W
orkstation between
the
NOPOWER and ON states.
Operator LED
The White Operator LED distinguishes the W
orkstation 5A from the
Workstation 5, with its Blue Operator LED. It blinks during start-up and turns
solid White when the operating system starts.
