Workstation 5A Setup Guide - Fourth Edition 4-9
Installing and Operating the Workstation 5A
The IO Panel
Removing a CF Card
• Always power off the workstation before removing the CF Card.

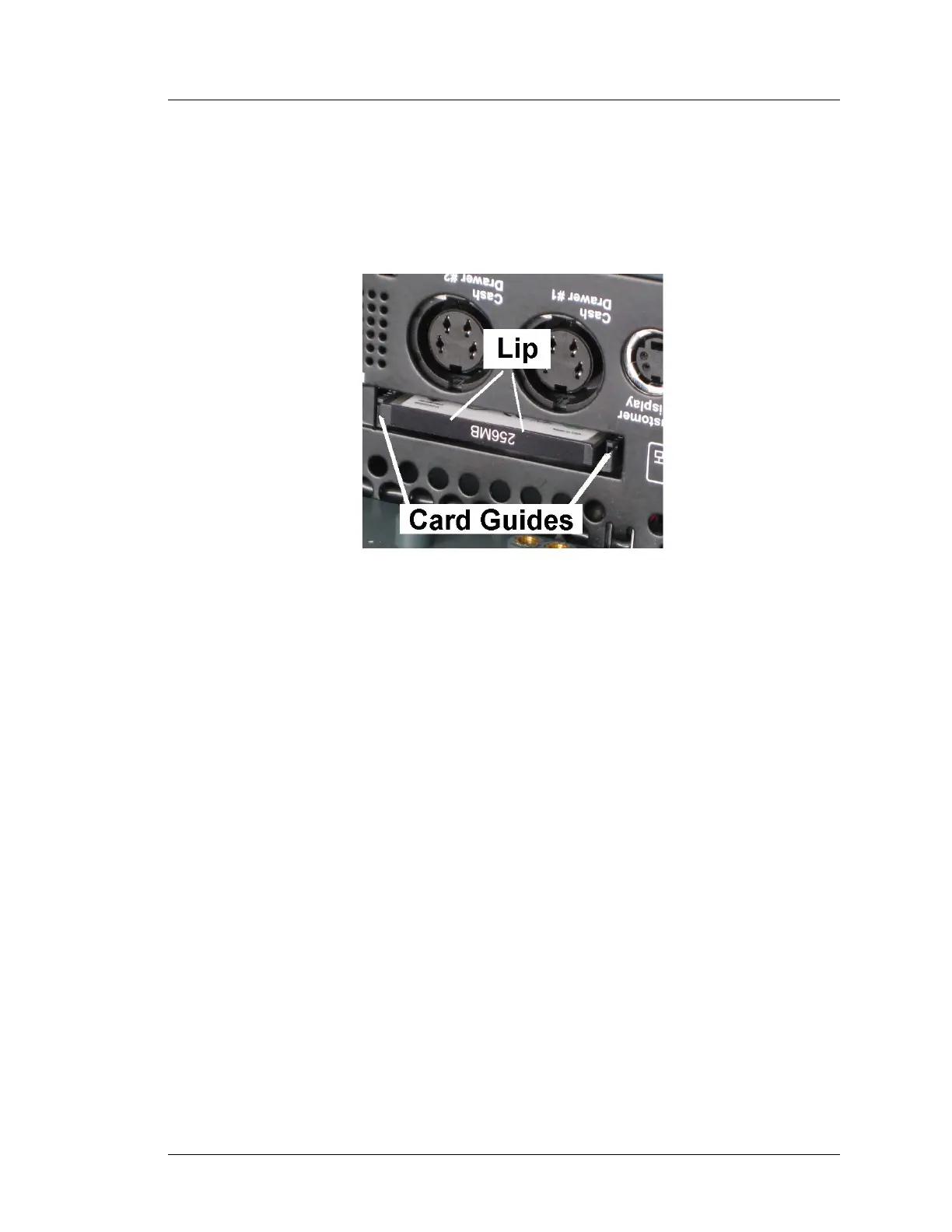

Figure 4-4. Use your thumbnail to catch the lip on the card and remove
it from the socket.
Figure 4-4: Removing the CF Card
Disabling the CF Card
• BIOS Version Q2011d or later adds the ability to disable the CF
Interface for security purposes. This is intended for WIN32 operating
systems such as POSReady 2009.
Disabling the CF Card Interface when the Workstation 5A is
configured for Windows Embedded CE 6.0 will cause the unit not to
start, and produce a ‘CF NOT FOUND’ POST error.
