B-10 Workstation 5A Setup Guide - Fourth Edition

Connector and Cable Diagrams

Hook-up Cables

Ethernet

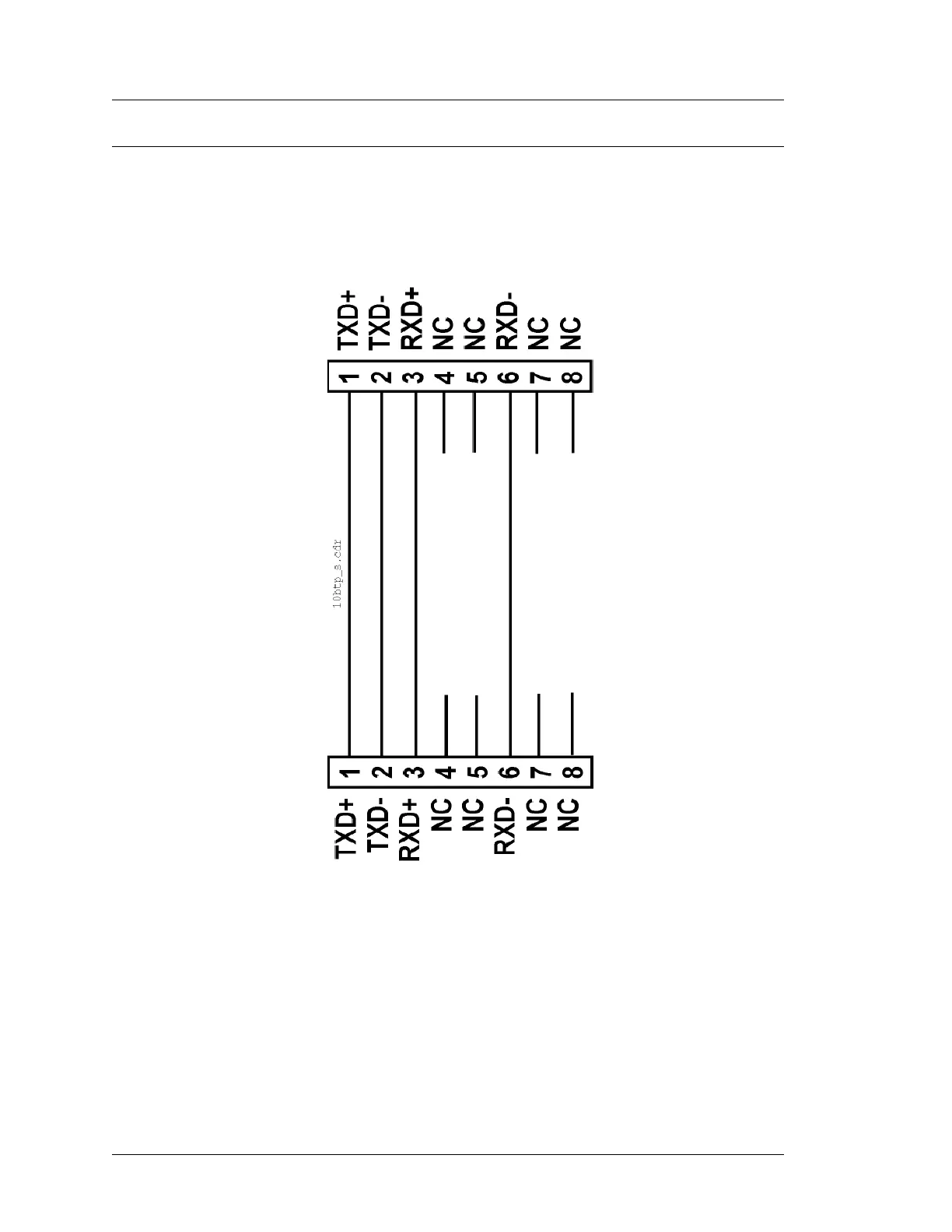

Figure B-14 shows a diagram of a standard Cat 5 Ethernet hook-up cable. This

cable would be connected from a workstation or server to the system hub.

Figure B-14: EIA/TIA-568-A Cat 5A Ethernet Hook-up Cable Diagram
