Connector and Cable Diagrams
Hook-up Cables
Cross-over Pinning
Figure B-15 shows a diagram of a typical Category 5 or later hook-up cable
with the transmit/receive cross-over pinning implemented. This cable can be
used when only two devices must be connected. For example, it can be used to
connect two workstations, or a server connected to a single client.

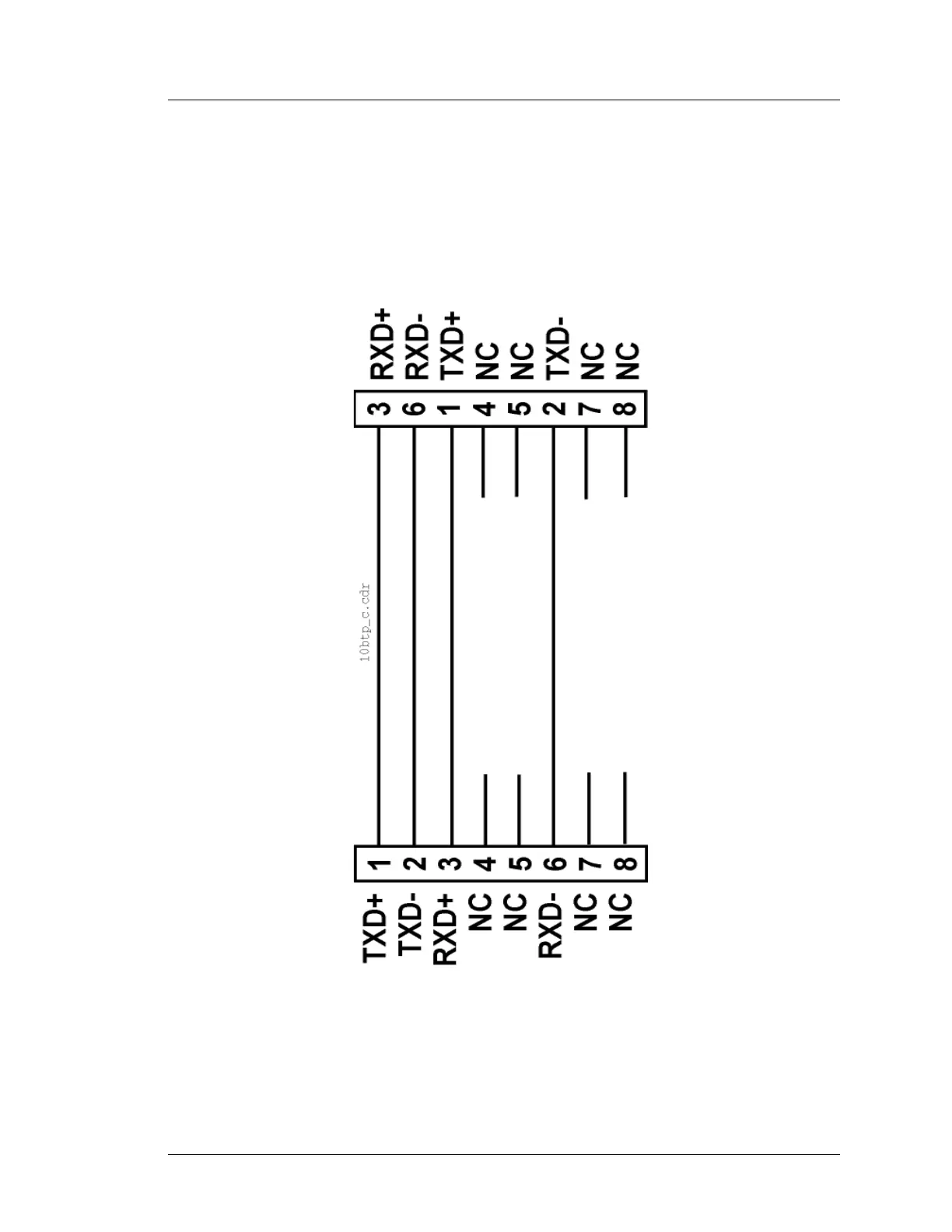

Figure B-15: Cat 5E Ethernet Hook-up Cable Diagram (cross-over)
