Workstation 5A Setup Guide - Fourth Edition 3-21
What’s Inside?
System Board Description
LCD Touchscreen Assembly - Resistive Touchscreen
The WS5A and LCD/Touchscreen assembly carries over from the original
Workstation 5. It is composed of a 15” resistive touch surface, bracket, 15”
AUO LCD with CCFL Backlights, LCD Plate and Backlight Inverter Board.

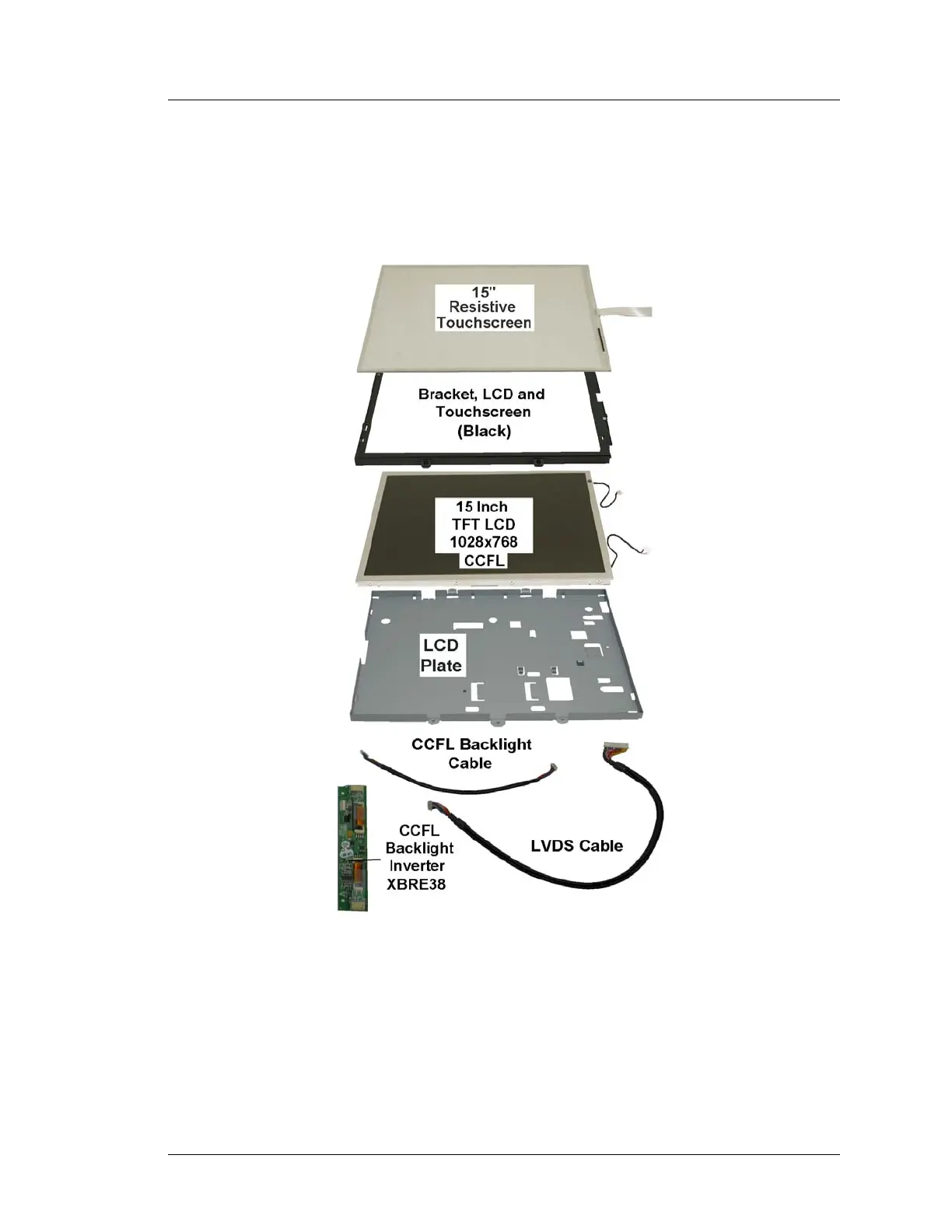

Figure 3-13: The LCD/Touchscreen Assembly /w Resistive Touchscreen
Twenty Workstation 5A were produced with LED Backlights.
The Capacitive touchscreen option is also available.
