Workstation 5A Setup Guide - Fourth Edition 3-9
What’s Inside?
System Board Components
WS5A System Board Jumpers and Switches (Revisions C, D and F)
The Figure below applies to all System Board Revisions. See the page 3-12 for
details and a procedure for using the CMOS clear jumper.

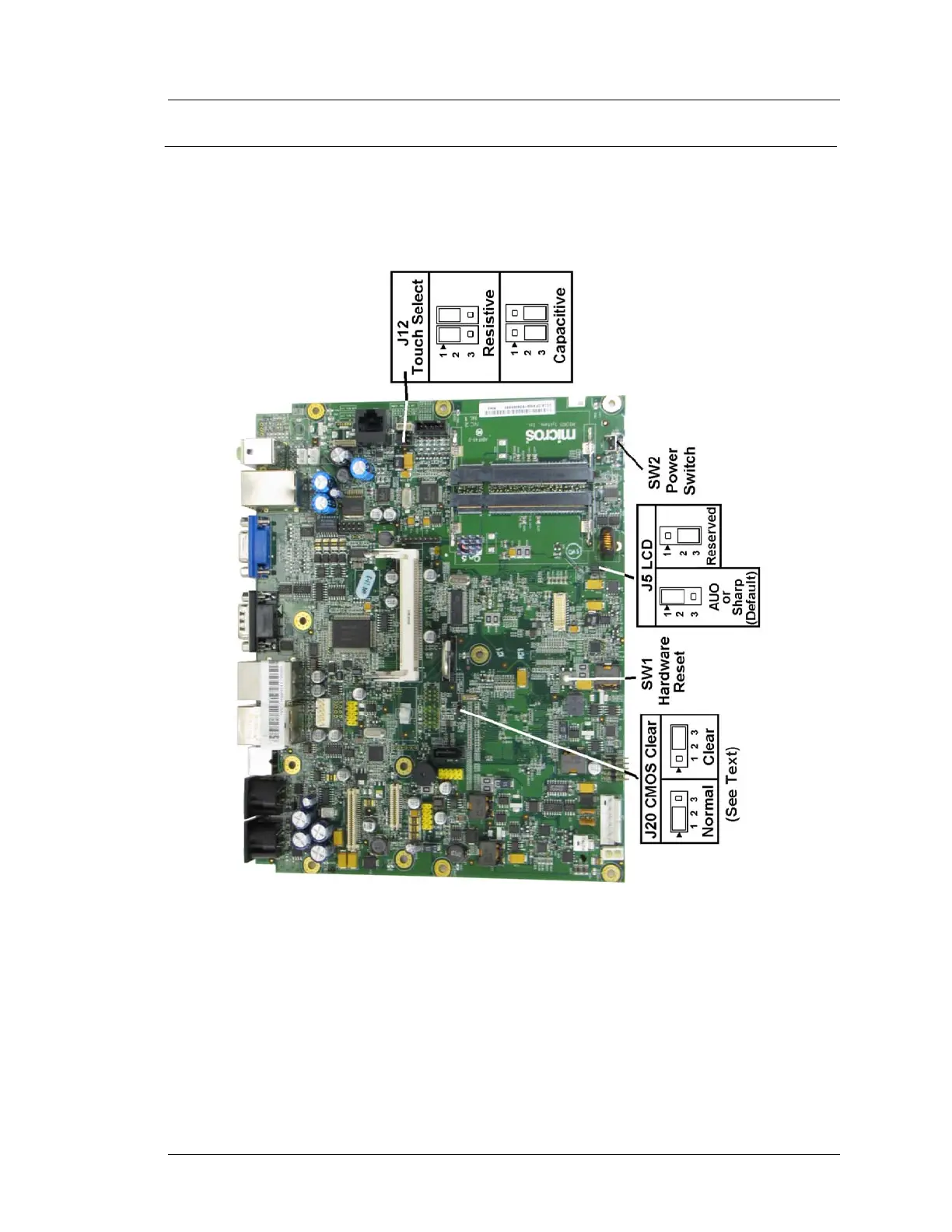

Figure 3-8: System Board Jumpers and Switches (All Revisions)
