Workstation 5A Setup Guide - Fourth Edition 1-11
What is the WS5A?
The System
LCD Pole Mount Customer Display

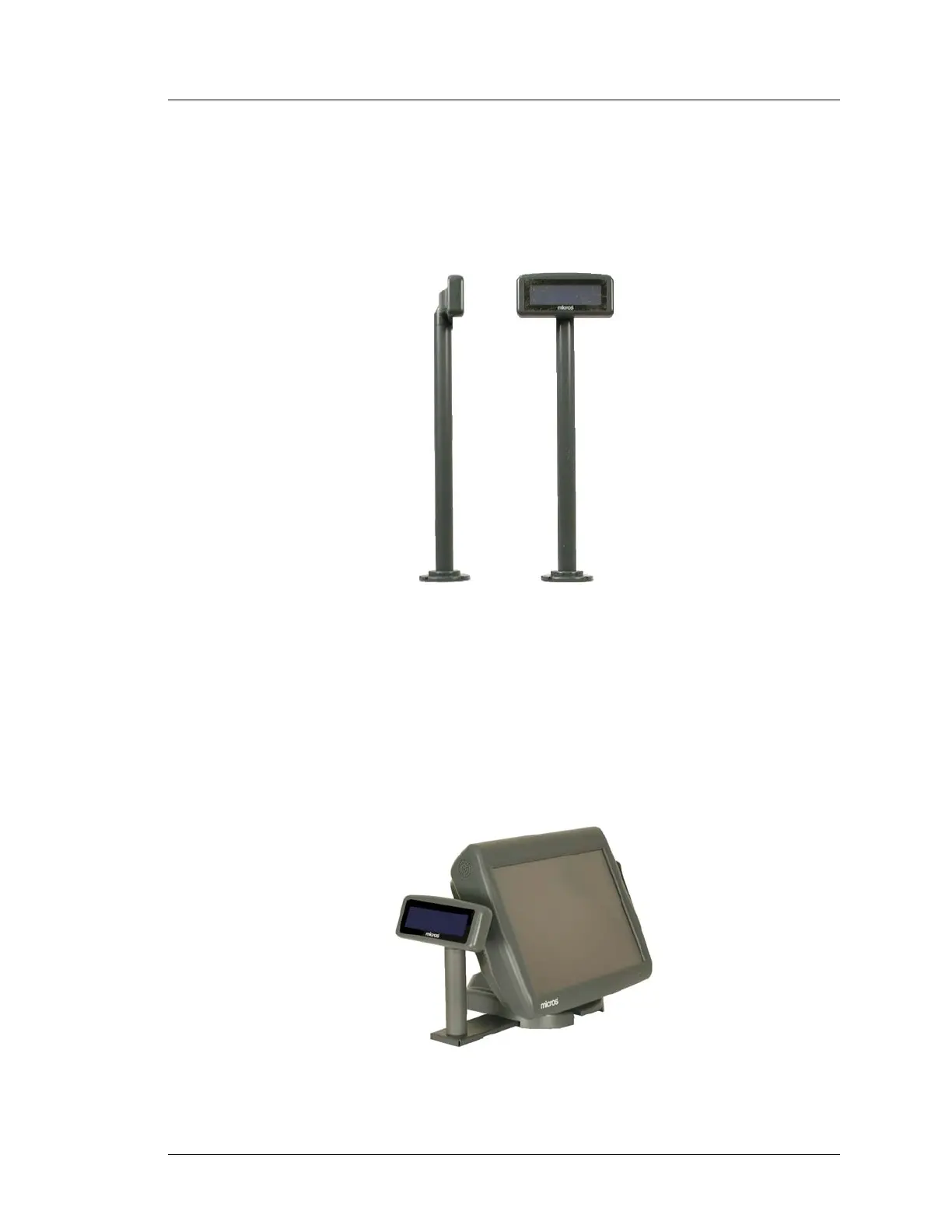

Figure 1-8 below, is an example of the Pole Mount LCD Customer Display.
This display receives power and data from an IO panel Mini-DIN
connector and can be placed on a counter surface up to four feet from the
workstation. A 2x20 VFD Pole Display is also available.
Figure 1-8: Pole Mount LCD Customer Display
Adjustable Stand Pole Display
This version of the LCD Customer Display is mounted to the Adjustable
Stand with a custom bracket and six inch pole. The base plate includes hole
centers for mounting the bracket to the left, right, or rear of the
workstation. This display receives power and data from an IO panel
Mini-DIN connector, also used for the Pole Display.
Figure 1-9: The Adjustable Stand Pole Mount Display
