Connector and Cable Diagrams
System Board Connectors
System Board Connectors
This section details connectors located on the Workstation 5A system board.
Magnetic Stripe Interface
The internal magnetic card reader connector is CN13, located on the system
board. The pin-outs for this connector are shown in Figure B-7,

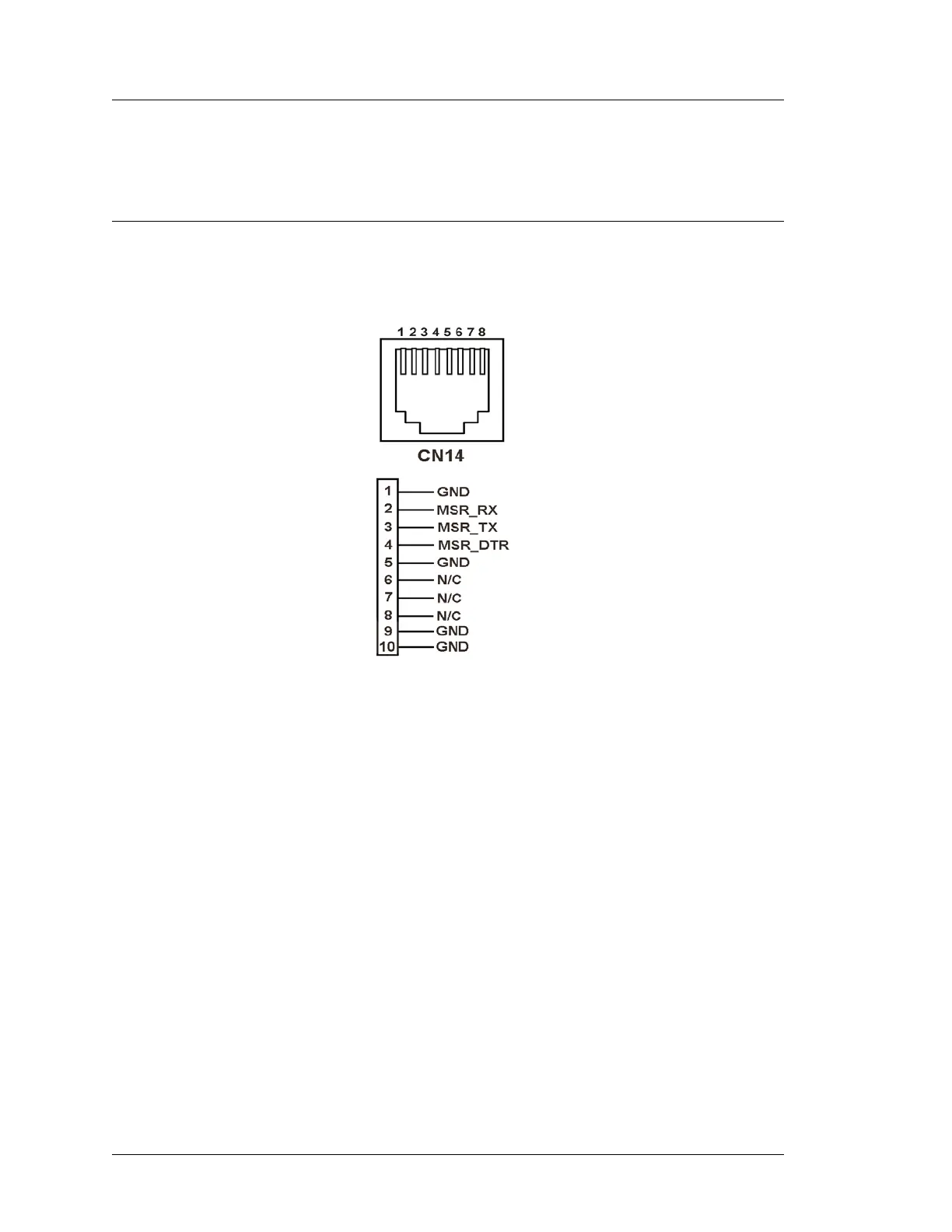

Figure B-7: Workstation 5A System Board MSR Connector
