Workstation 5A Setup Guide - Fourth Edition 1-9
What is the WS5A?
The System
Power Supply Compartment
Figure 1-6, below shows a view of the stand base plate and the
compartment for housing an optional Printer Power Supply. AC power is
connected to a receptacle in the throat of the stand using a low profile
angled connector. An internal ‘Y’ cable distributes power to both the
workstation and printer power supply compartment.

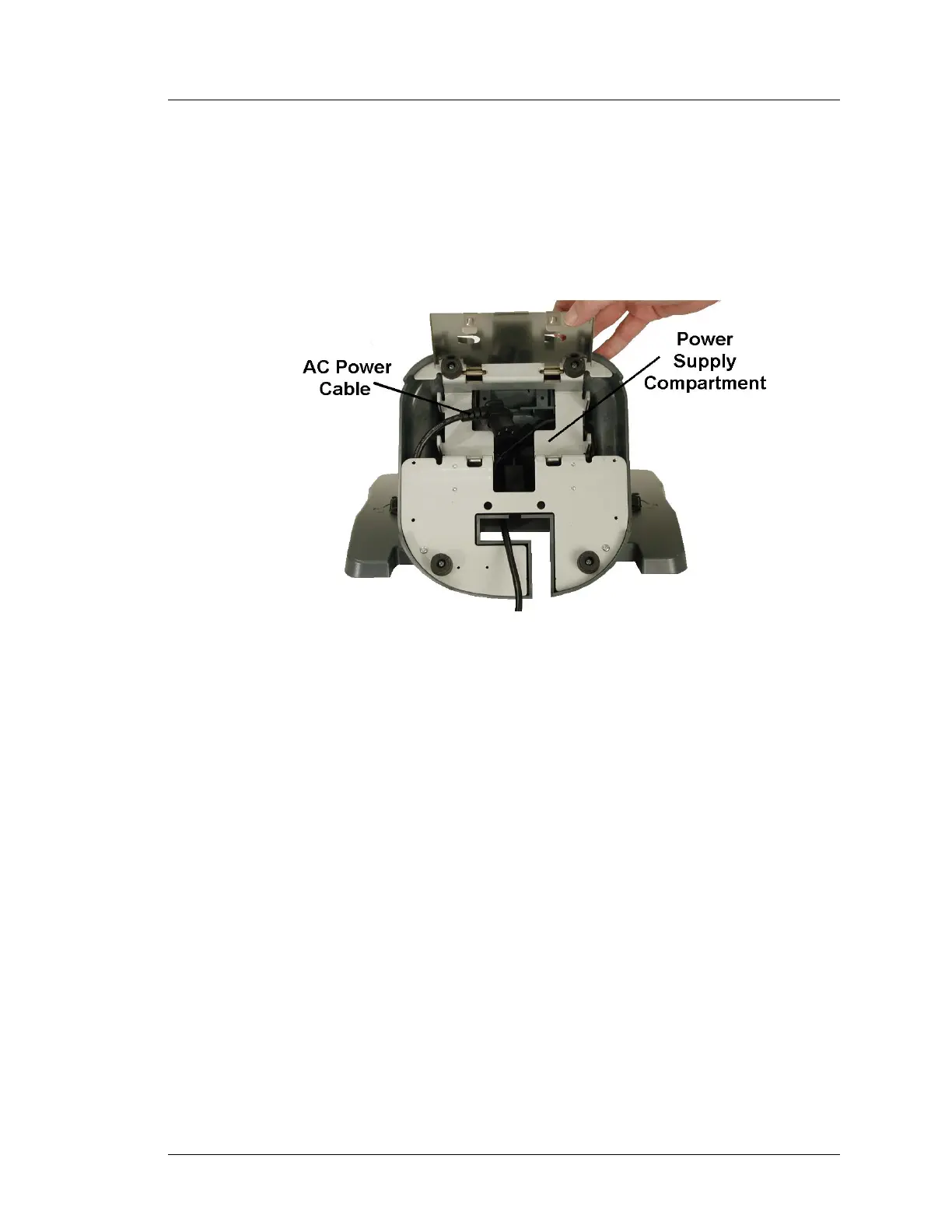

Figure 1-6: WS5A Adjustable Stand - Power Supply Compartment
