Oracle MICROS Workstation 5A Setup Guide

Workstation 5A Setup Guide - Fourth Edition 3-13
What’s Inside?
System Block Diagrams

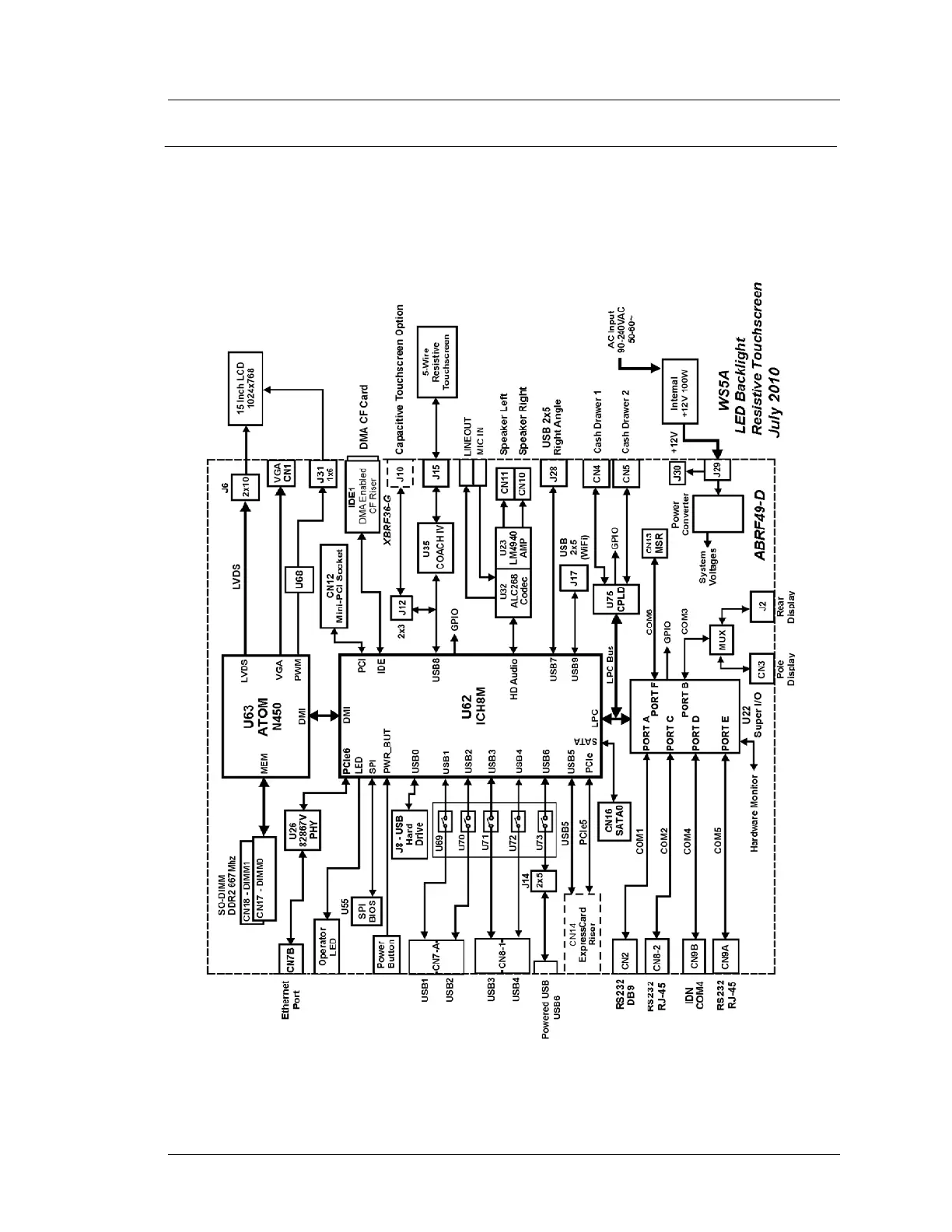

Workstation 5A Block Diagram (LED Backlights/Resistive Touchscreen)
A small number of WS5As shipped with LED backlights and resistive
touchscreen, as shown in the diagram below. This configuration uses a System
Board DC-to-DC converter to drive the LED backlights.
Figure 3-11: WS5A Block Diagram (LED Backlights and Resistive Touch Screen)

Oracle MICROS Workstation 5A Specifications

General

Brand	Oracle
Model	MICROS Workstation 5A
Category	Touch terminals
Language	English
