Orphee mythic 22 - Dilution Hydraulic Part

REF : M22/UM/EN/014
2. GENERAL OVERVIEW
MYTHIC 22
Copyright© Orphée SA. All Rights Reserved.
Page 21/105
2.3.3 Dilution hydraulic part
All the fluidic part is on the right hand side of the instrument and consists of only five modules:
- Sampling module:
o Rocker (patent pending): Manages the rise and descent of the needle.
- Syringe module (patent pending) consists of one block:
o Reagent syringes (Diluent, lyse), sampling and air syringes.
o Liquid valve manifold assembly and tubing.
- Counting chambers:
o WBC and RBC counting chambers and hemoglobin measurement.
o Liquid valve manifold assembly and tubing.
- Optical Manifold:
o Liquid valve manifold assembly and tubing.
- Optical bench:
o Optical bench (patented) with his flow cell (patented).

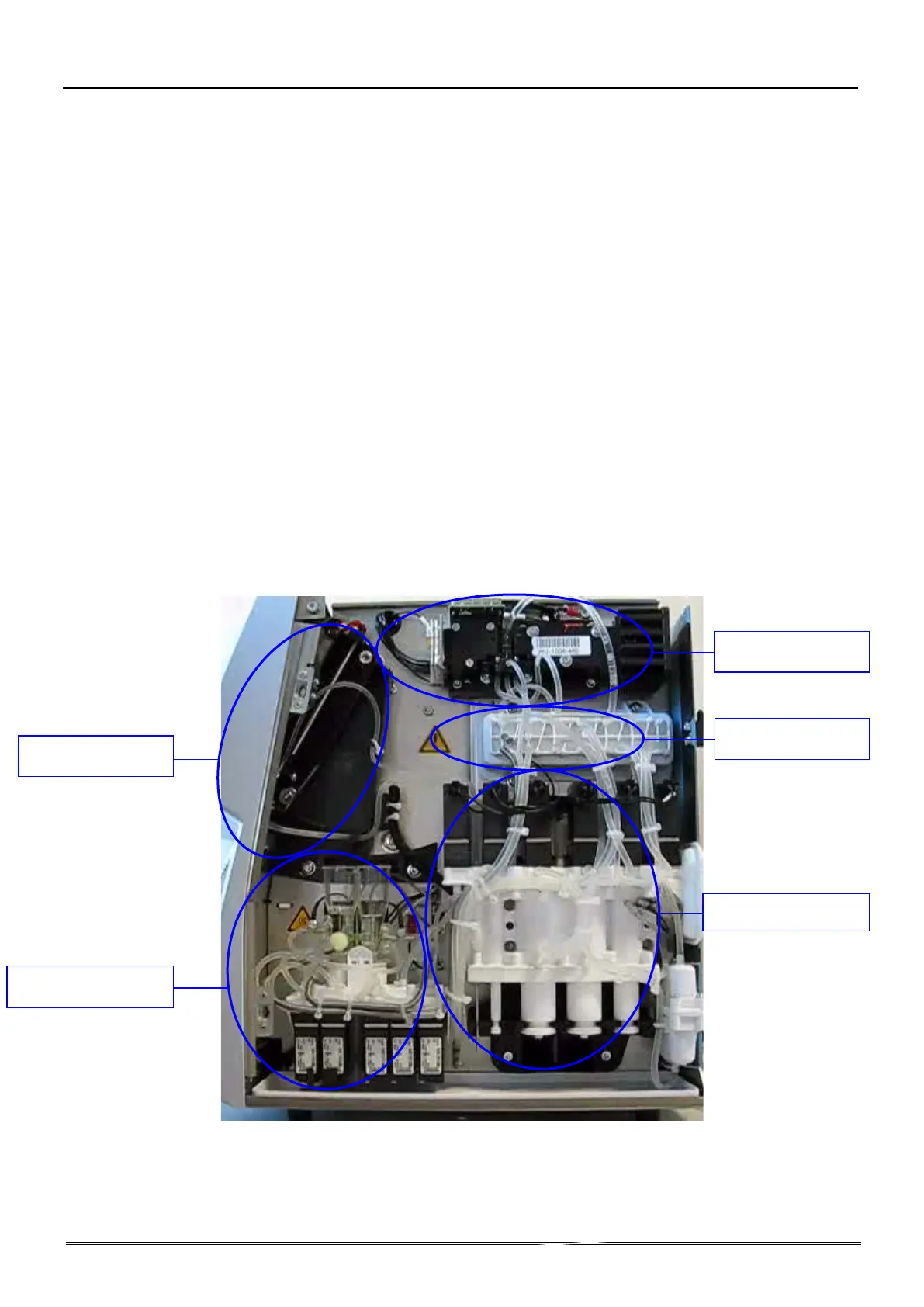

Sampling module
Syringe module
Counting module
Optical manifold
Optical bench
