1. INSTALLATION

REF : M22/UM/EN/015

Page 10/105

MYTHIC 22

1.1.3 Visual checking

HAZARDOUS MOVING PARTS, BEWARE TO STAY AWAY FROM THESE PARTS WHEN THE

MACHINE IS SWITCH ON.

1.2 INSTALLATION CONSTRAINTS

1.2.1 Installation place

To ensure that the MYTHIC 22 fulfills its function, place the instrument on a table that supports the

weight of the instrument, printer and reagents (around 40 Kg). Leave a space of 10 cm in the rear of the

instrument to ensure a well-ventilated place. Avoid a place that can be exposed to direct sunlight.

1.2.2 Installation environment

a) Indoor use;

b) Altitude up to 2 000 m;

c) Temperature 18 °C to 34 °C; (max 25° for lyse );

d) Maximum relative humidity 80 % for temperatures up to 31 °C decreasing linearly to 50 % relative

humidity at 40 °C;

e) MAINS supply voltage fluctuations up to ±10 % of the nominal voltage;

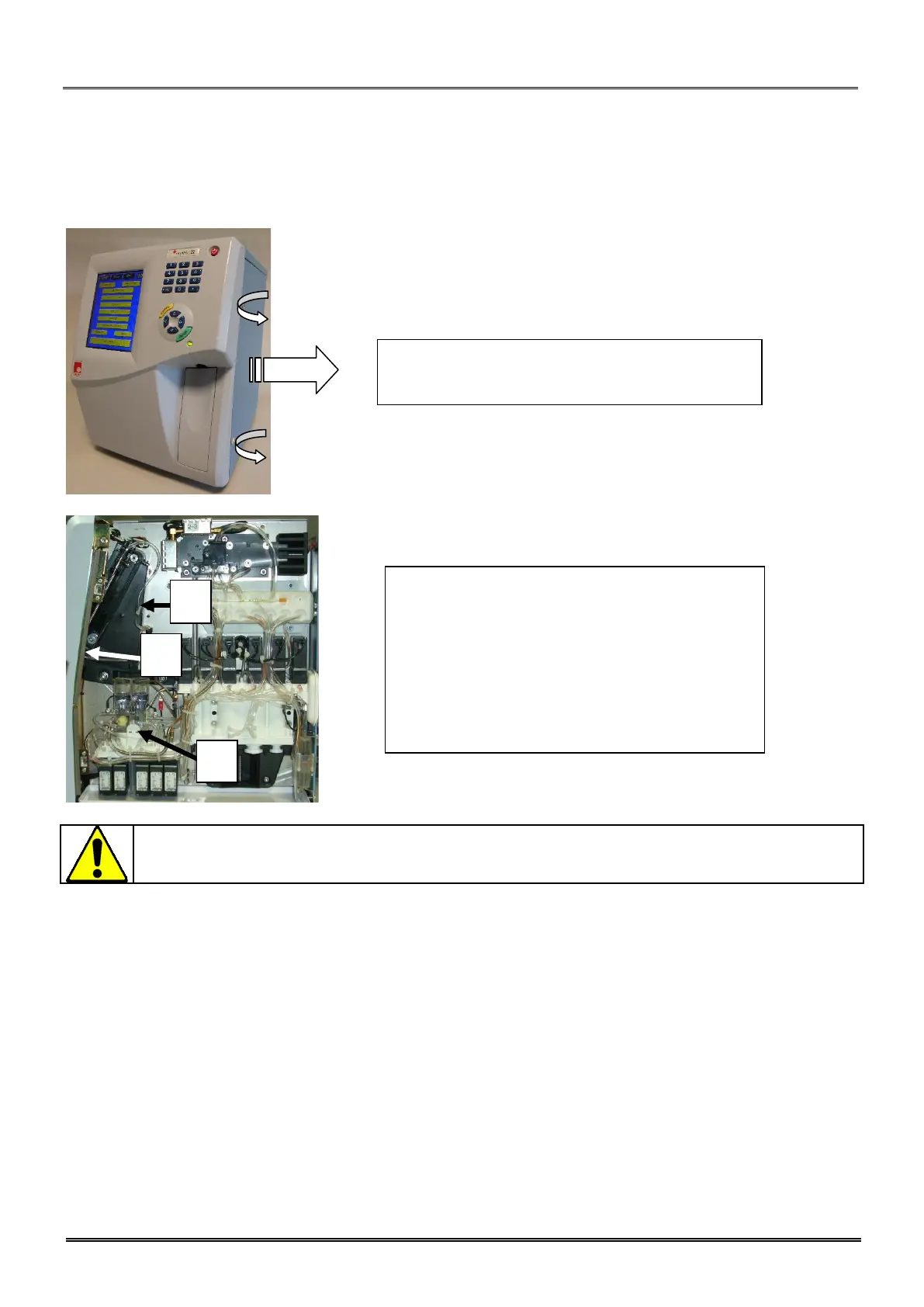

Open the door on the right side with the tool

provided in the kit.

To be checked:

1. Counting chambers perfectly locked

in their manifold locations.

2. Needle’s dismountable system

located in the rocker.

3. Rocker in front position at the

maximum course.
