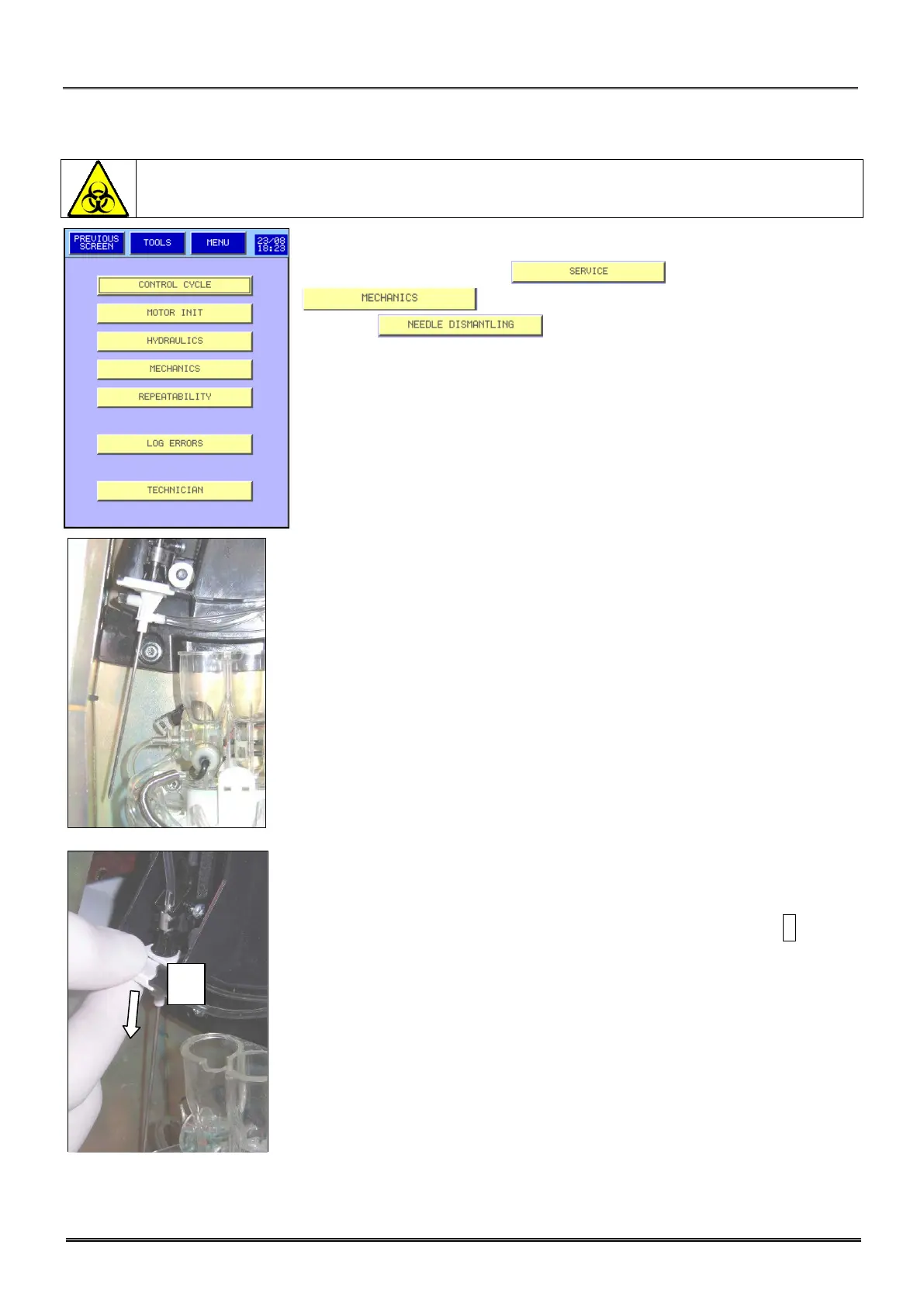

9.4.2 Needle or o-ring replacement
Wear rubber gloves and wash hands with a disinfectant after completion of work.
- From the main menu, press then
to go to the display described on the left.
- Press on .
- The rocker places the sampling needle in the disassembling position.
- Open the door located on the right side to have access to the hydraulic
part.
- The needle is in front of the counting chambers.
- Remove the sampling module, while slightly lowering the clip 1
to the
bottom.
1
