Oxford Instruments Mercury iTC User Manual

Handbook
November 2011 / 59-UMC0071 / Issue 01
Mercury iTC
Page 34
USER INTERFACE
Original Instructions
The following expression explains the effect of scale and offset:
Scaled Parameter= (Measured Parameter * Scale) + Offset
3.2.6.3 Level Meter Sensor Details page
This page displays detailed information about the selected level sensor.
There are two tabs. Select either the Helium tab (see Figure 3-16) or the Nitrogen tab
(see Figure 3-17), depending on which type of level sensor is fitted.
Helium tab

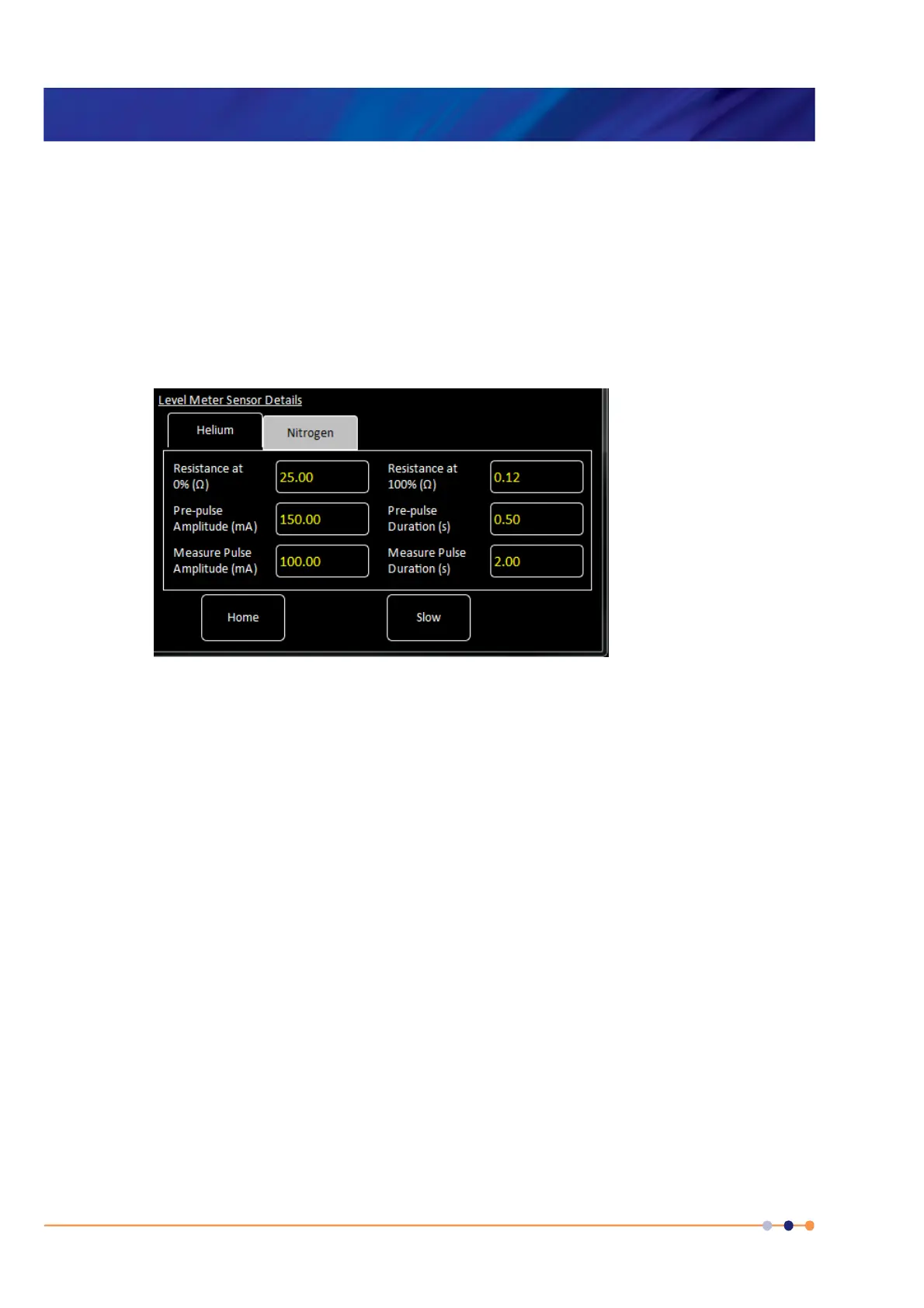

Figure 3-16 Level Meter Sensor Details page - Helium tab
The page contains the following fields and controls:
 Resistance at 0% (Ω)
Enter the resistance of the sensor when the level is 0%.
 Resistance at 100% (Ω)
Enter the resistance of the sensor when the level is 100%.
 Pre-pulse Amplitude (mA)
Enter the pre-pulse amplitude in mA.
 Pre-pulse Duration (s)
Enter the duration of the pre-pulse in seconds.
 Measure Pulse Amplitude (mA)
Enter the amplitude of the measurement pulse in mA.
 Measure Pulse Duration (s)
Enter the duration of the measurement pulse in seconds.
 Slow/Fast button
Select Fast sampling when filling the reservoir.
Select Slow sampling when the reservoir is full, to conserve helium.
