FUNCTIONAL DESCRIPTION
Original Instructions
4 FUNCTIONAL DESCRIPTION
4.1 Main components

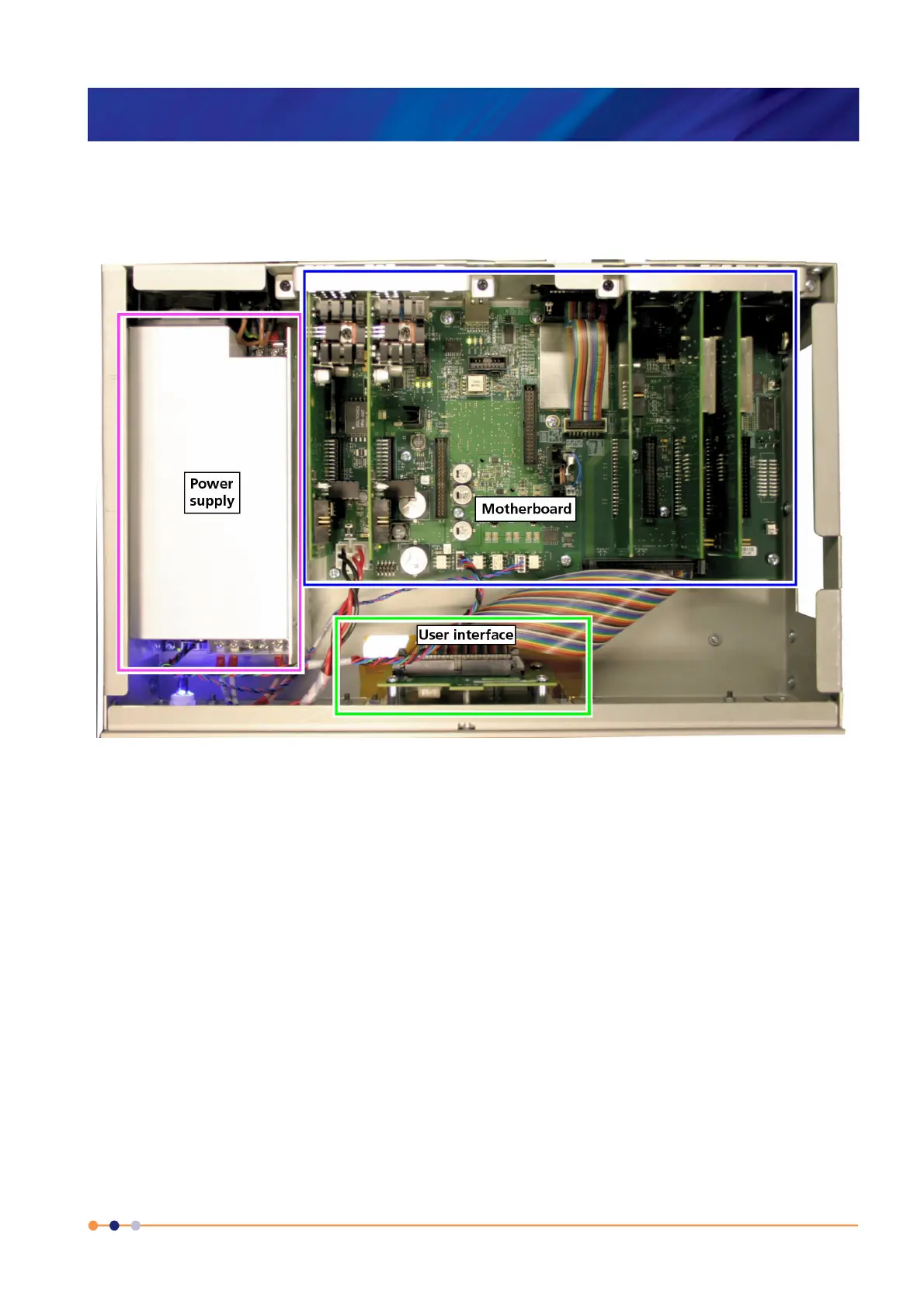

Figure 4-1 General view of the iTC
The unit consists of:
 a 2U high 19 inch rack or desktop enclosure
 a user interface (see Section 4.1.1)
 a power supply
 a motherboard PCB which contains the basic unit functionality (see Section 4.1.2)
 optional additional temperature sensor input(s) (on daughter boards).
See Section 4.2.2.
 optional additional heater output(s) (on daughter boards). See Section 4.2.3.
 optional auxiliary I/O (stepper motor drive and logic I/O)
 optional GPIB (IEEE-488) interface
