Oxford Instruments Mercury iTC - Sweep Table Page

Handbook
November 2011 / 59-UMC0071 / Issue 01
Mercury iTC
Page 56
USER INTERFACE
Original Instructions
3.2.15 Sweep Table page
Allows the user to configure a temperature sweep profile.

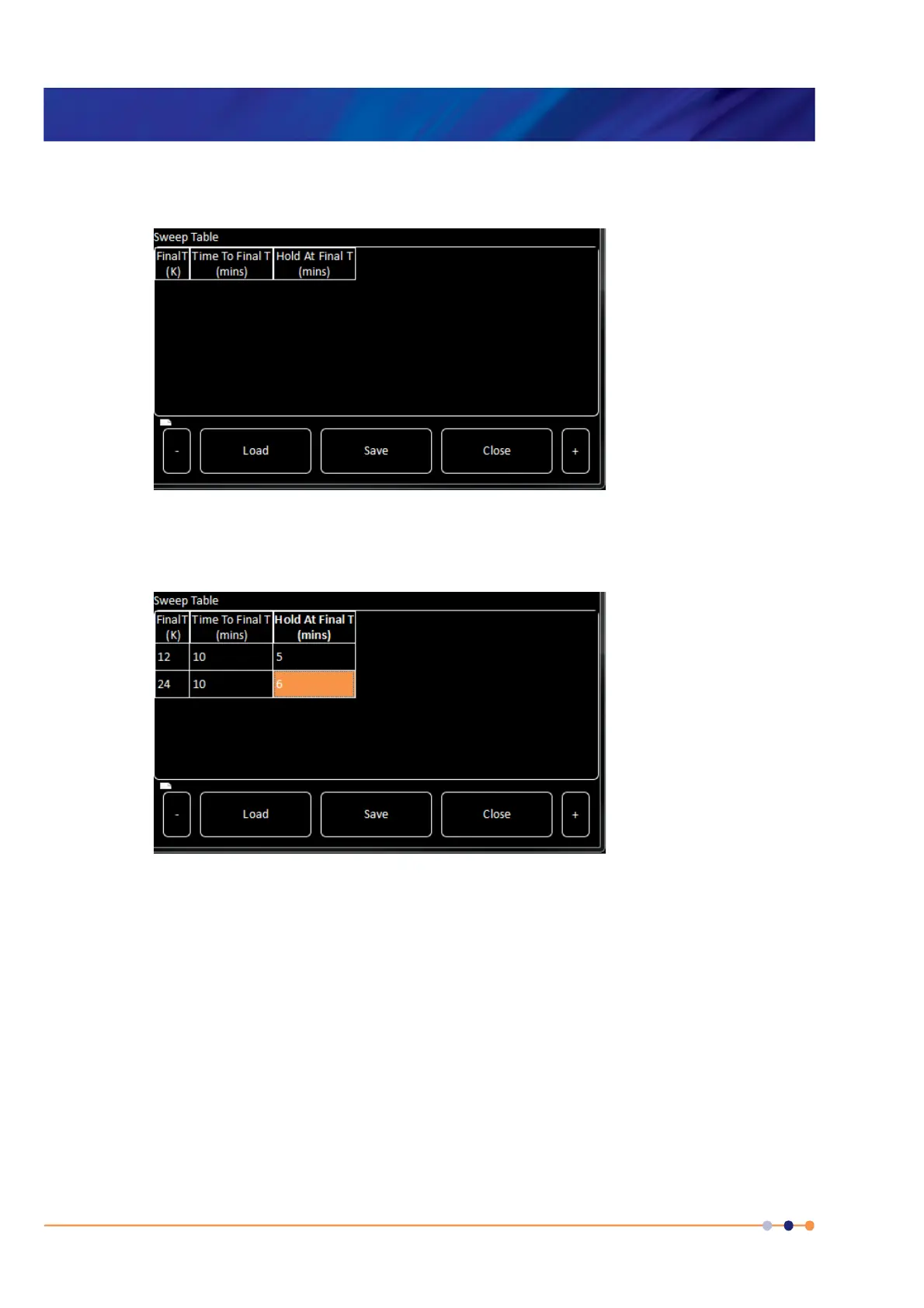

Figure 3-29 Sweep Table page with an empty table
Figure 3-30 Sweep Sequence Editor page with two rows of data
The page displays a sweep table. If the table is empty, only the first row is displayed
(see Figure 3-29). If the table contains data, one or more rows of values are displayed
(see Figure 3-30).
